Brake Control Power Supply ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEAT CUSHION ASSY (SEE OVERHAUL )
REMOVE DECK TRIM SIDE PANEL ASSY RH
HINT:

Refer to the procedures from the removal of the rear door scuff plate RH up until the removal of the deck trim side panel assy RH.
REMOVE BRAKE CONTROL POWER SUPPLY ASSY
1. Disconnect the connector and remove the 3 bolts and the brake control power supply assy.

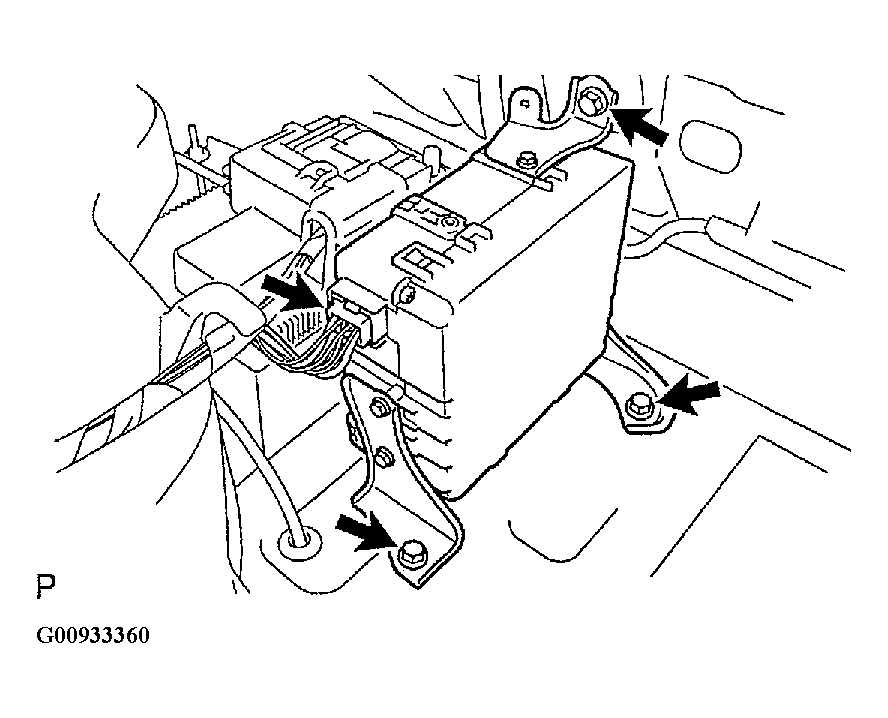

  Fig 1: Removing Brake Control Power Supply Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE CONTROL POWER SUPPLY ASSY
1. Install the brake control power supply assy with the 3 bolts.
  1. Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)
  Fig 2: Installing Brake Control Power Supply Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector to the brake control power supply assy.
INSTALL DECK TRIM SIDE PANEL ASSY RH
INSTALL REAR SEAT CUSHION ASSY (SEE OVERHAUL )
CHECK AND CLEAR DTC (SEE DIAGNOSTIC TROUBLE CODES CHECK CLEAR )
