Rear (Wagon): Components

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

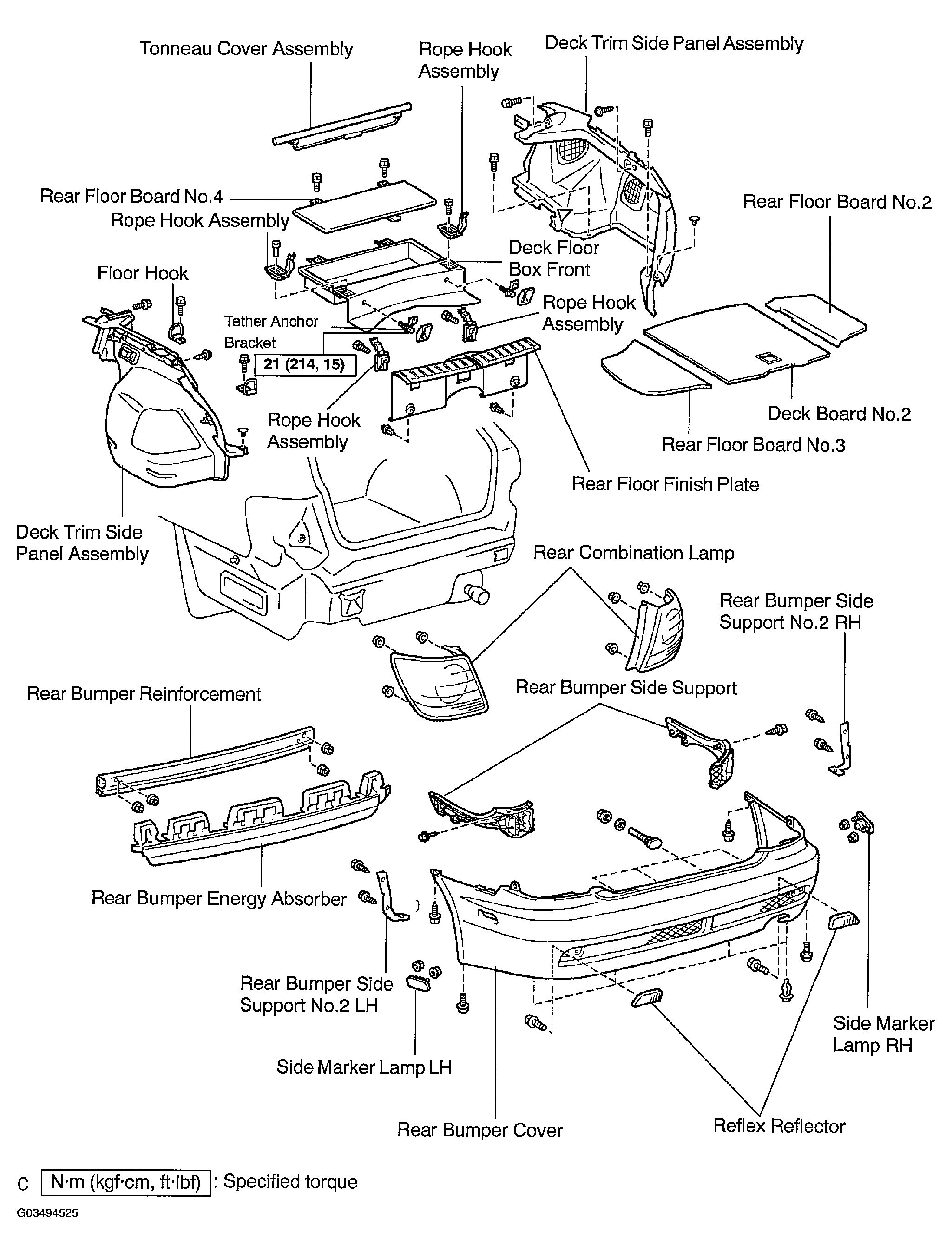

Fig 1: Identifying Rear Bumper Components (Wagon)
G03494525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
