Terminals Of Ecu

Fig 1: Identifying ECU Terminals
G02915931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

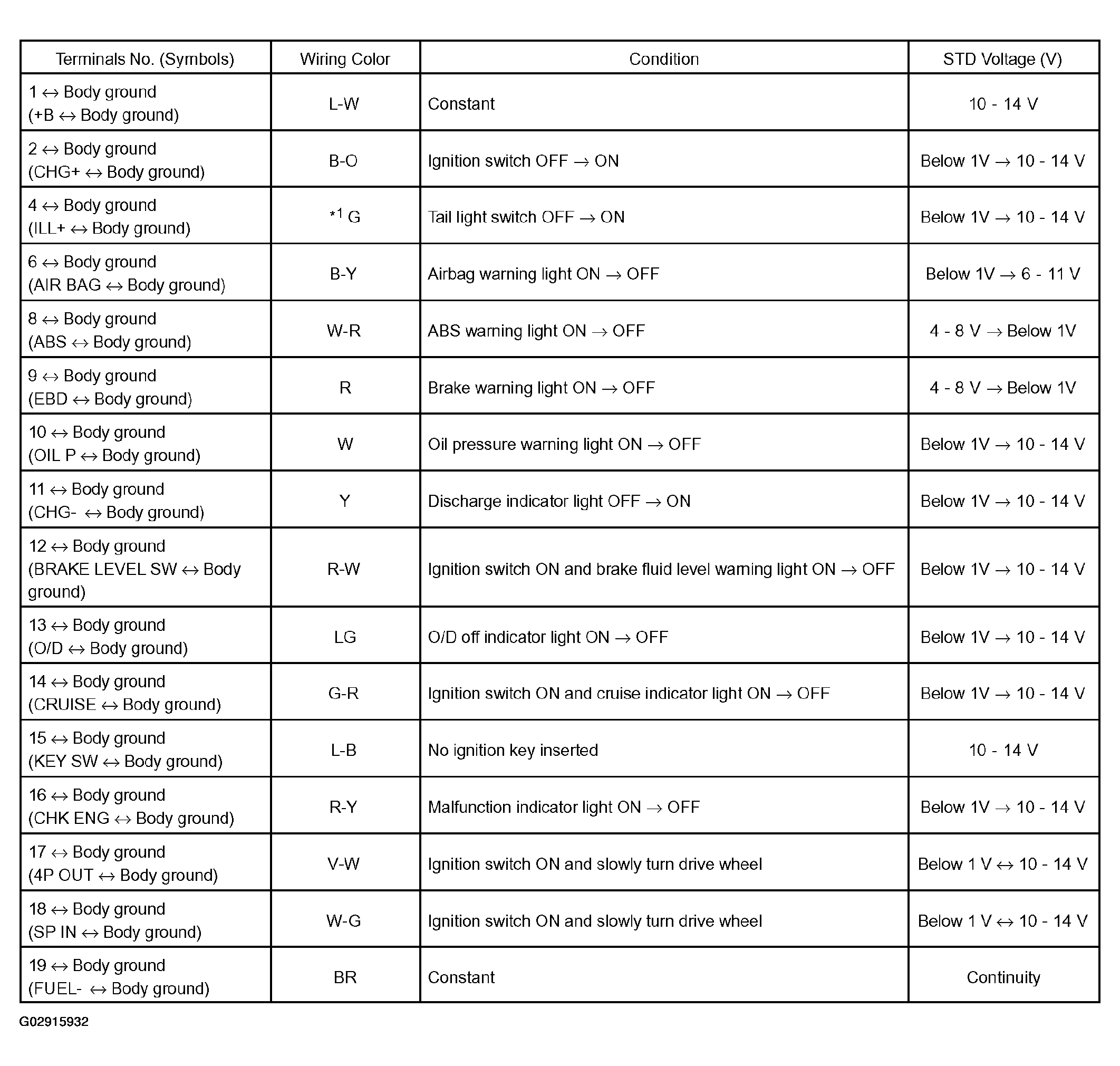

Fig 2: ECU Terminal Specifications (1 Of 2)
G02915932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

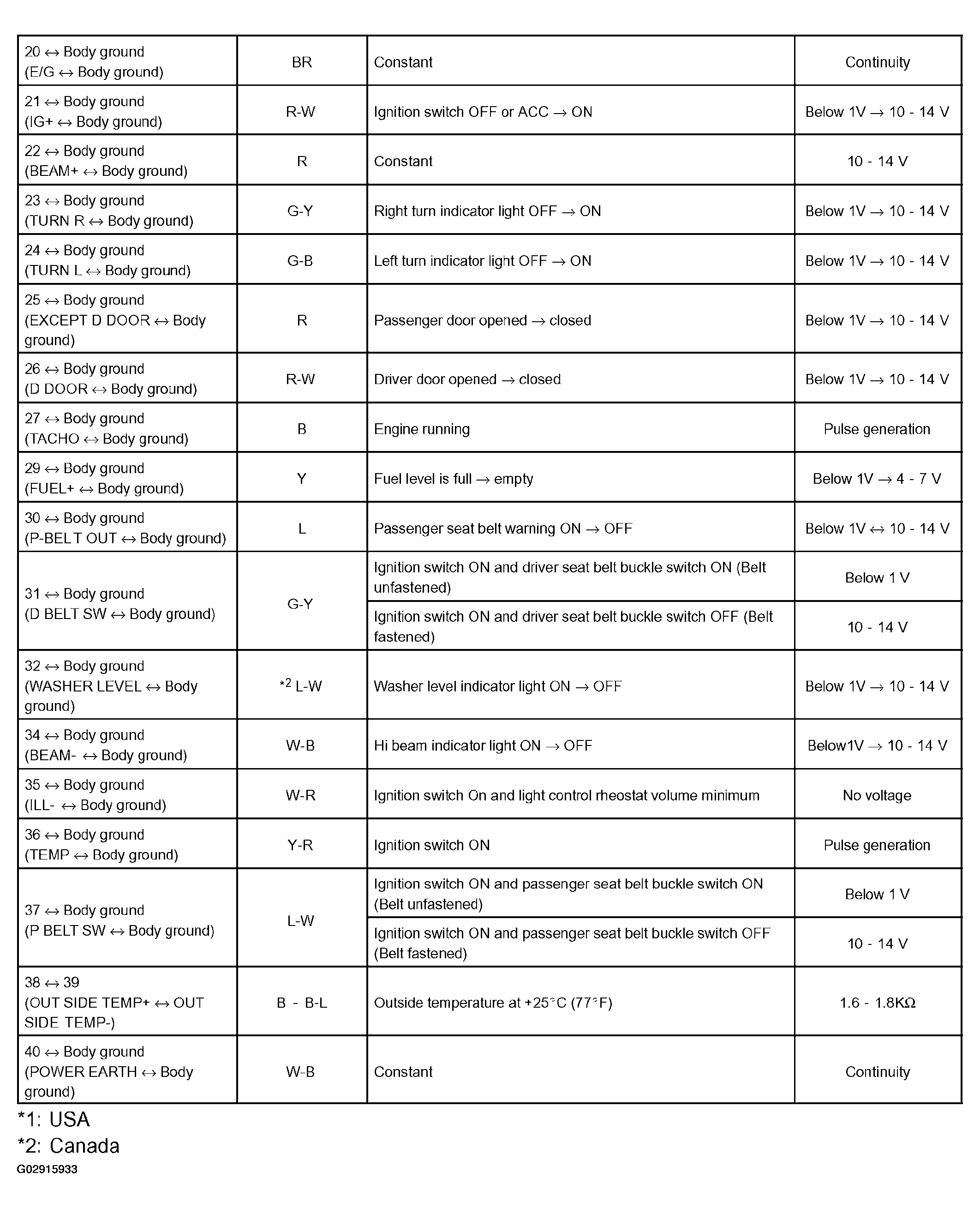

Fig 3: ECU Terminal Specifications (2 Of 2)
G02915933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
