Rear Seat ASSY: Components

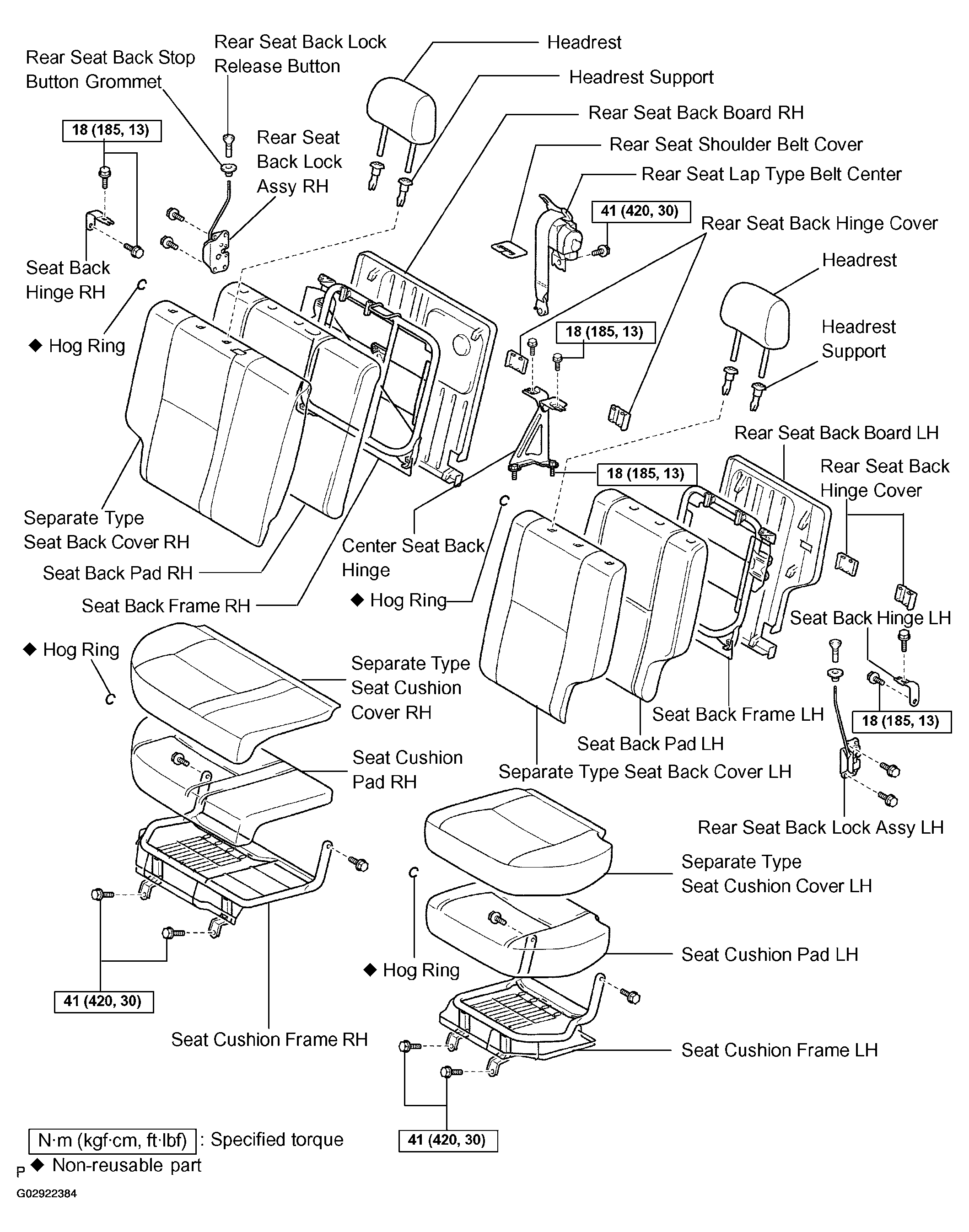

Fig 1: Identifying Components Location Of Rear Seat Assy

G02922384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
