Home >> Toyota >> 2004 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Front Seat (Driver Side) >> Components

Front Seat (Driver Side): Components

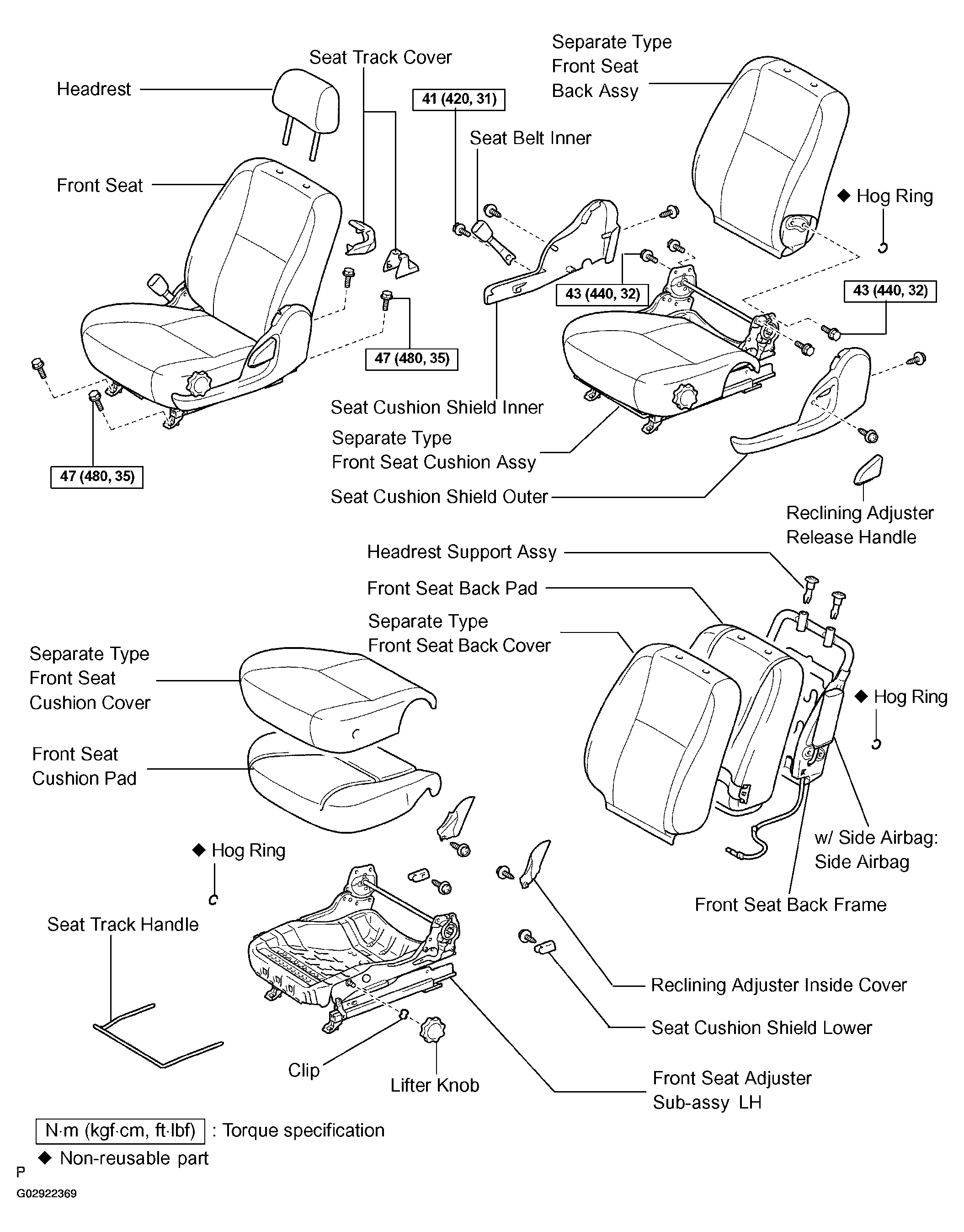

Fig 1: Identifying Components Location Of Front Seat (Driver Side)

G02922369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
