Home >> Toyota >> 2004 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior/Interior Trim >> Front Bumper >> Components

Front Bumper: Components

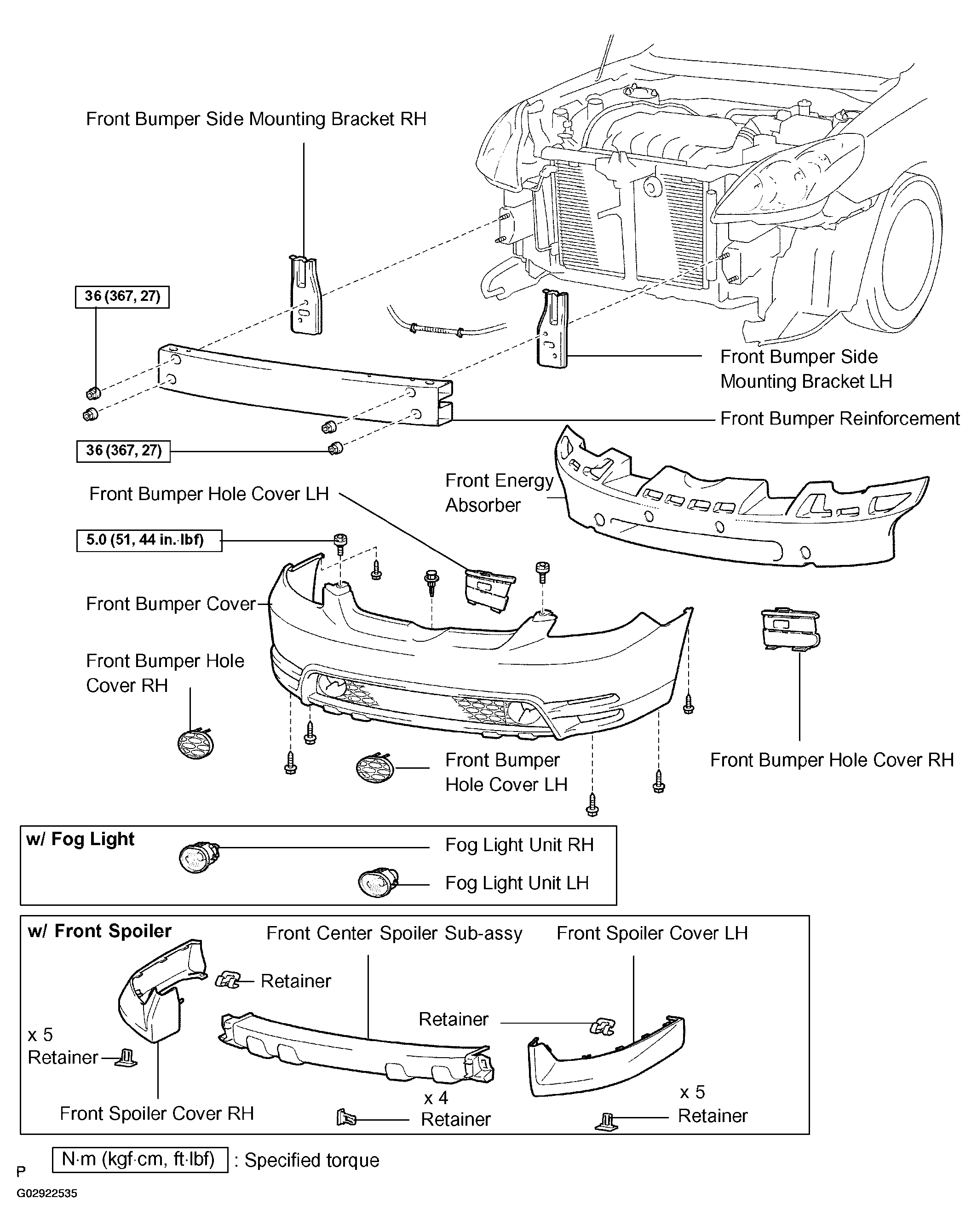

Fig 1: Identifying Front Bumper Components
G02922535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
