Inspection Procedure

  1. CHECK LOW PITCHED HORN ASSY
    1. Connect the positive (+) lead from the battery to the terminal and negative (-) lead to the horn body, and check that the horn blows.

      Standard: Horn blows

      Fig 1: Checking Horn
      G02916030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE LOW PITCHED HORN ASSY
    2. OK: Go to next step.
  2. CHECK RELAY
    1. Remove the horn relay from the engine room R/B and J/B.
    2. Check the horn relay continuity, as shown in Fig 2 and HORN RELAY TERMINAL CONTINUITY SPECIFICATIONS .

      Standard:

      Fig 2: Testing Horn Relay
      G02916031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      HORN RELAY TERMINAL CONTINUITY SPECIFICATIONS

      Test Between Terminal No. Condition Specified Condition
      1 <=> 2 Constant Continuity
      3 <=> 5 Apply B+ Between Terminals 1 & 2 Continuity
    1. NG: REPLACE RELAY
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (TVIP ECU <=> ENGINE ROOM R/B and J/B)
    1. Remove the horn relay from the engine room R/B and J/B.
    2. Disconnect the TVIP ECU connector.
    3. Check the continuity between the terminals of the TVIP ECU connector and engine room R/B and J/B connector, as shown in Fig 3 andTERMINAL CONTINUITY SPECIFICATIONS .

      Standard:

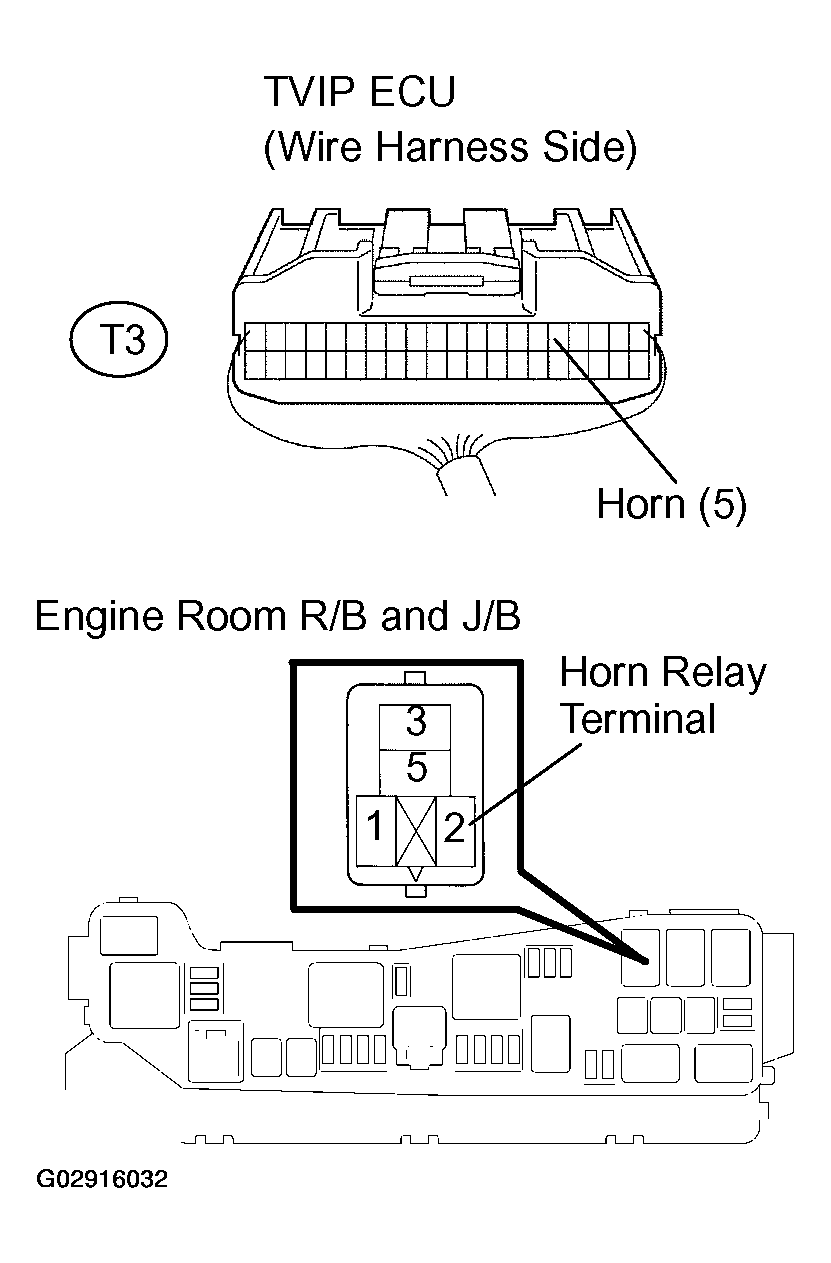

      Fig 3: Identifying TVIP ECU Horn Terminal & Engine Room J/B Horn Relay
      G02916032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTING TVIP ECU HORN TERMINALS

      Test Between Terminals No. Specified Condition
      HORN (T3-5) <=> 2 (1) Continuity
      (1) Horn relay terminal.
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: Go to next step.
  4. CHECK WIRE HARNESS (ENGINE ROOM R/B and J/B <=> HORN)
    1. Check the continuity between the terminals of the engine room R/B and J/B connector and horn connector, as shown in Fig 4 and TESTING ENGINE ROOM R/B TO J/B HORN CONTINUITY .

      Standard:

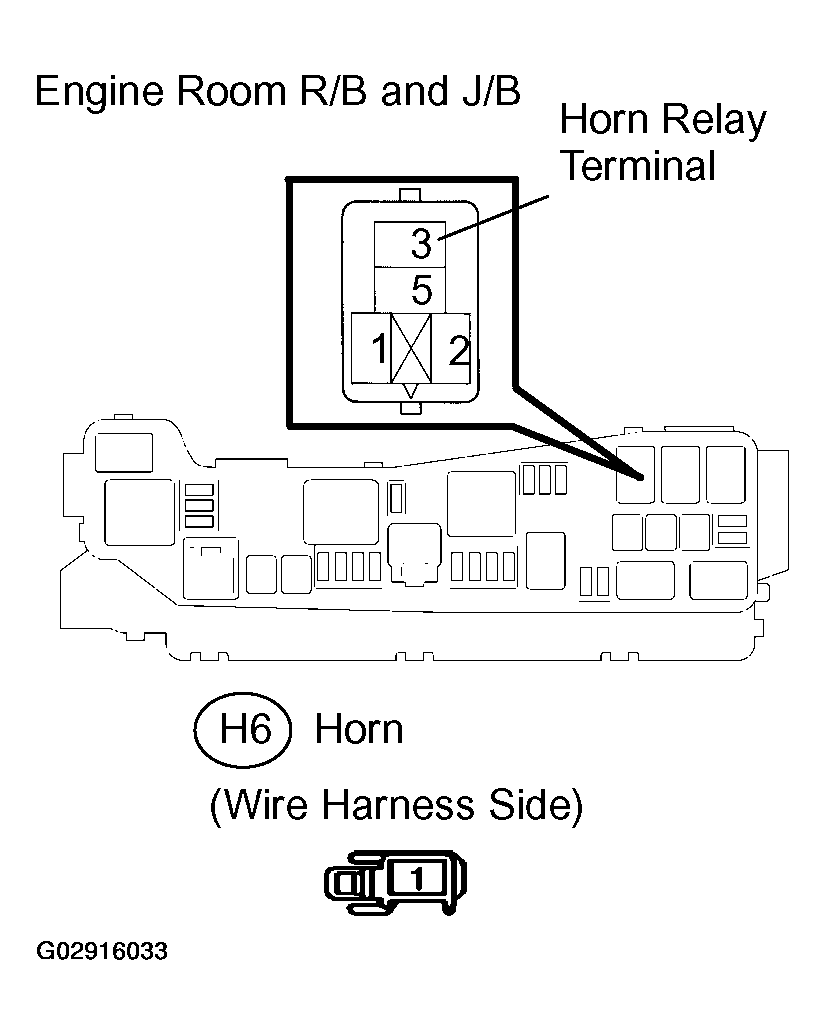

      Fig 4: Identifying Engine Room R/B & J/B Horn Relay Terminal
      G02916033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTING ENGINE ROOM R/B TO J/B HORN CONTINUITY

      Test Between Terminals No. Specified Condition
      3 (1) <=> Horn (H6-1) Continuity
      (1) Horn relay terminal.
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: CHECK AND REPLACE TVIP ECU (Refer to  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  ).
