Inspection Procedure

1. Check the courtesy switch (See INSPECT THE COURTESY SWITCH ), as shown in Fig 1 and Fig 2 or Fig 3.

Standard (front LH/front RH/rear LH/rear RH):

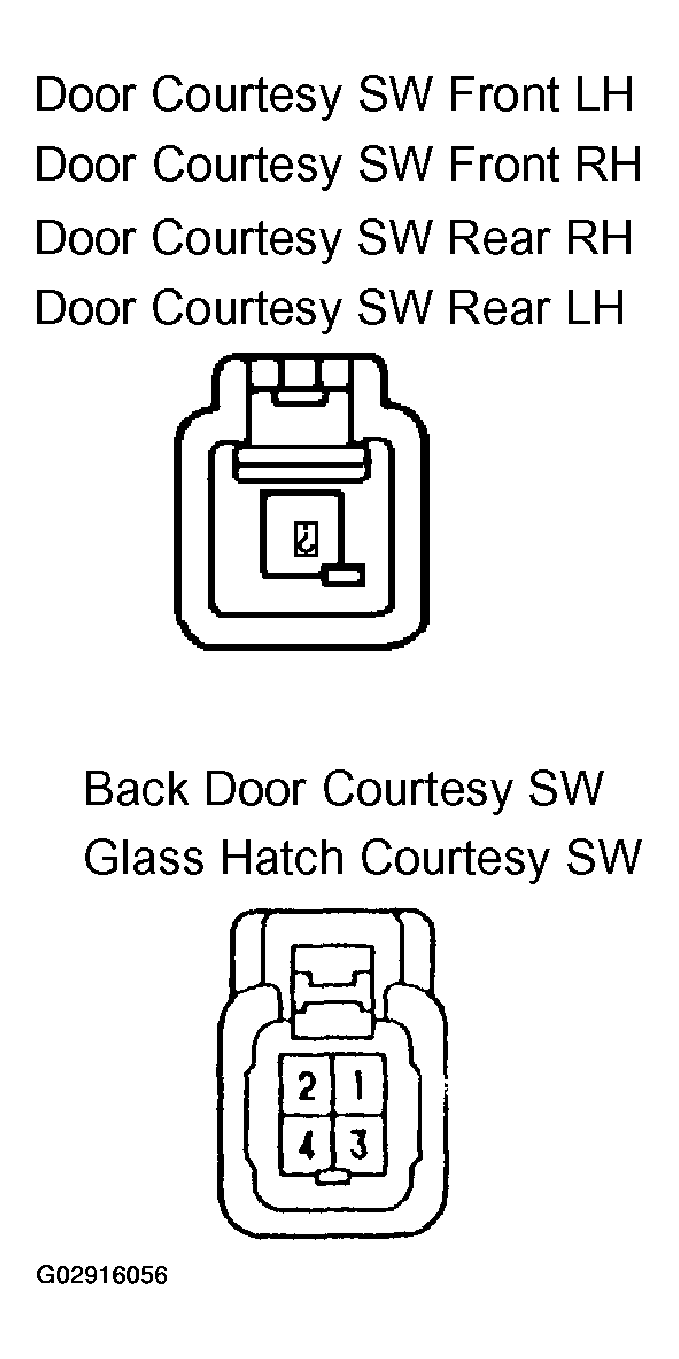

Fig 1: Identifying Door Courtesy Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Courtesy Lamp Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (glass hatch/back door):

Fig 3: Testing Courtesy Lamp (Glass Hatch/Back Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE COURTESY LAMP SWITCH
2. OK: Go to next step.

1. Disconnect the integration relay and door courtesy connectors.
2. Check the continuity between the terminals of the integration relay connector and door courtesy switch connector, as shown in Fig 4 and TESTING DOOR COURTESY SWITCH CONTINUITY .

   Standard:

   TESTING DOOR COURTESY SWITCH CONTINUITY



   Test Between Terminals No.	Specified Condition
   PCTY (I12-13) <--> (D8-1)	Continuity

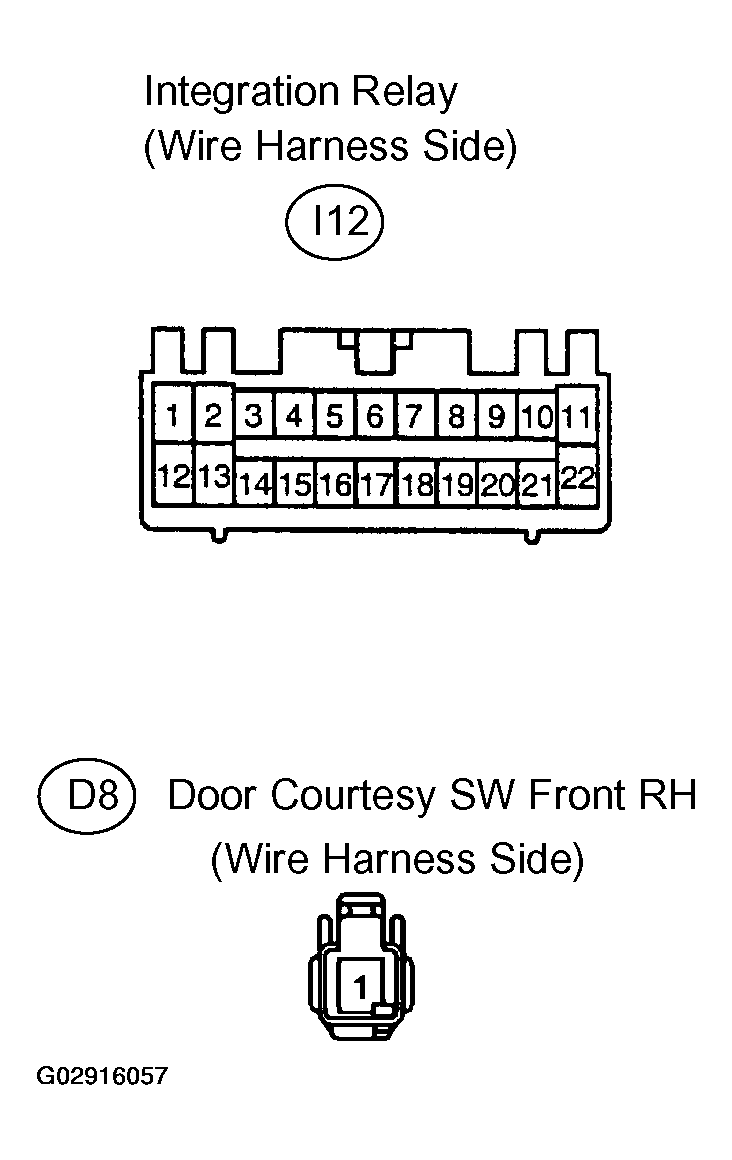

   Fig 4: Identifying Integration Relay & Door Courtesy Switch Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the integration relay and door courtesy connectors.
4. Check the continuity between the terminals of the integration relay connector and door courtesy switch connector, as shown in Fig 6 and Fig 5.

   Standard:

   Fig 5: Terminal Continuity Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

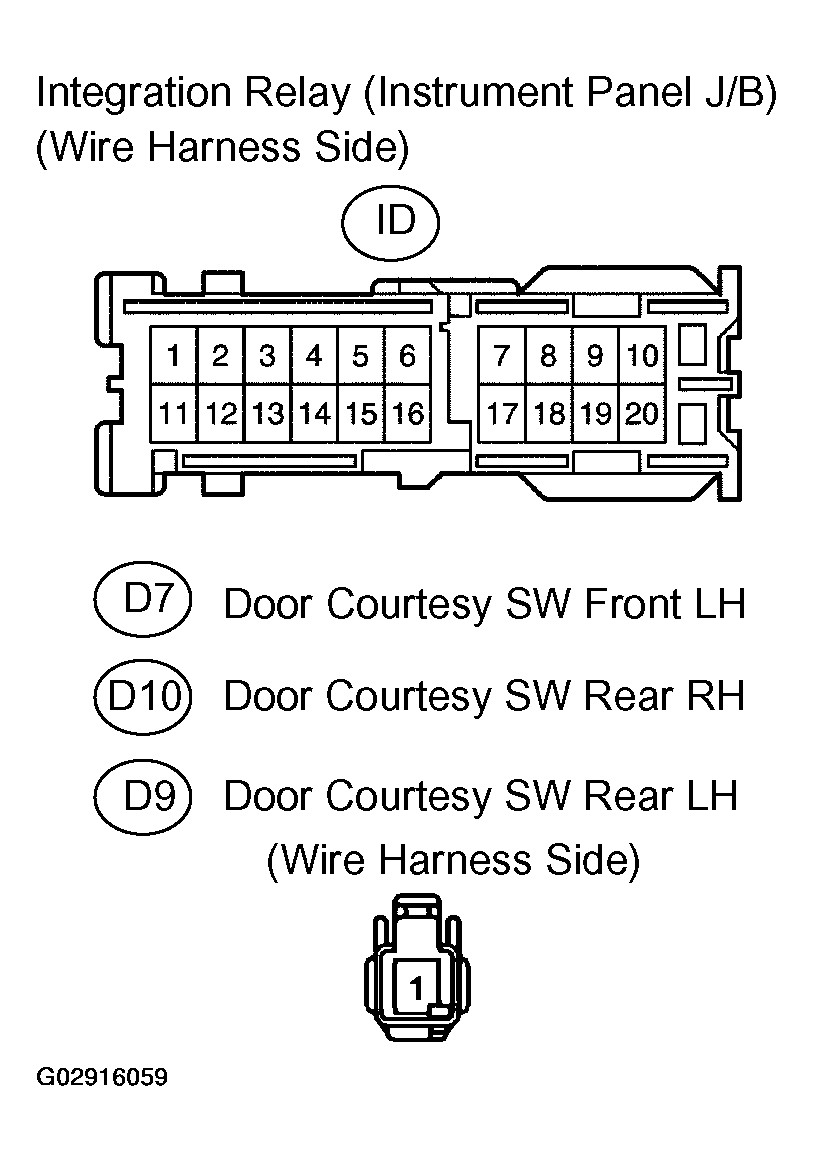

   Fig 6: Identifying Integration Relay & Door Courtesy Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Disconnect the integration relay and door courtesy connectors.
2. Check the continuity between the terminals of the integration relay connector and back door courtesy switch connector, as shown in Fig 7 and TESTING INTEGRATION RELAY TO BACK DOOR COURTESY SWITCH CONTINUITY  or TESTING INTEGRATION RELAY TO GLASS HATCH COURTESY SWITCH CONTINUITY

   Standard:

   TESTING INTEGRATION RELAY TO BACK DOOR COURTESY SWITCH CONTINUITY



   Test Between Terminals No.	Specified Condition
   ID-16 <--> B6-2	Continuity

   TESTING INTEGRATION RELAY TO GLASS HATCH COURTESY SWITCH CONTINUITY



   Test Between Terminals No.	Specified Condition
   ID-16 <--> G5-2	Continuity

3. Check the continuity between the terminals of the integration relay connector and glass hatch courtesy switch connector, as shown in Fig 7 and TESTING INTEGRATION RELAY TO GLASS HATCH COURTESY SWITCH CONTINUITY

   Standard:

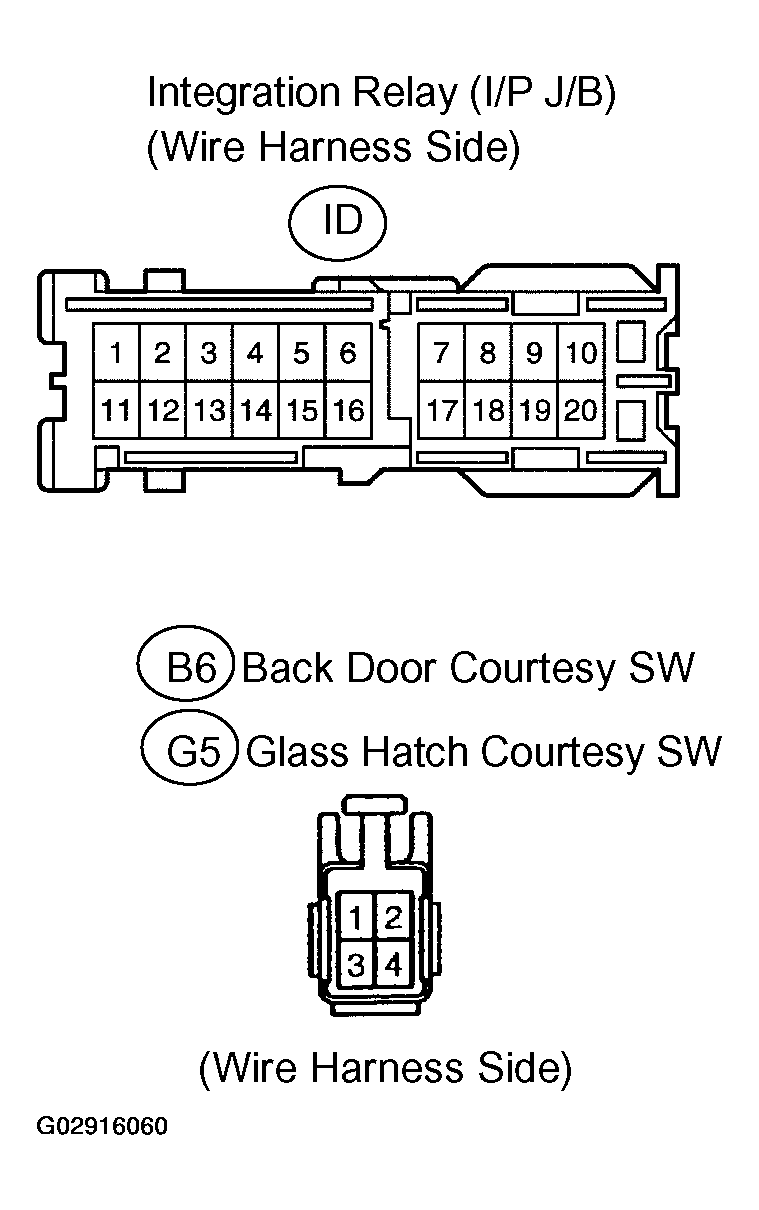

   Fig 7: Identifying 1D, B6, G5 Switch Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the continuity between terminal of the back door courtesy switch connector and the ground. See TESTING BACK DOOR COURTESY SWITCH CONTINUITY .

   Standard:

   TESTING BACK DOOR COURTESY SWITCH CONTINUITY



   Test Between Terminals No.	Specified Condition
   B6-1 <--> Body ground	Continuity

5. Check the continuity between terminal of the glass hatch switch connector and the ground. See TESTING GLASS HATCH SWITCH CONTINUITY .

   Standard:

   TESTING GLASS HATCH SWITCH CONTINUITY



   Test Between Terminals No.	Specified Condition
   G5-1 <--> Body Ground	Continuity

   Fig 8: Identifying B6 & G5 Switch Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: CHECK TVIP ECU (Refer to  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
