Terminals Of Ecu

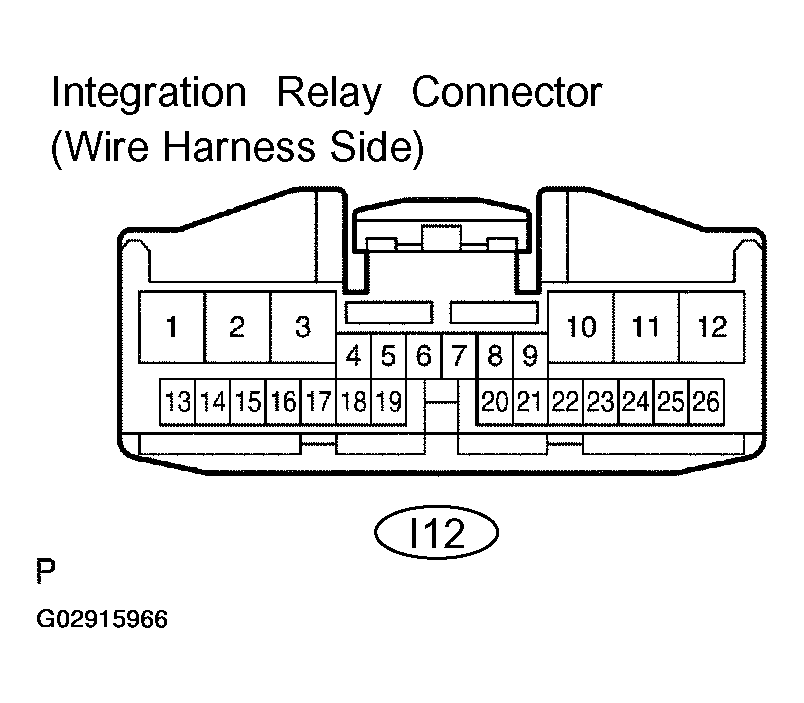

- CHECK INTEGRATION RELAY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

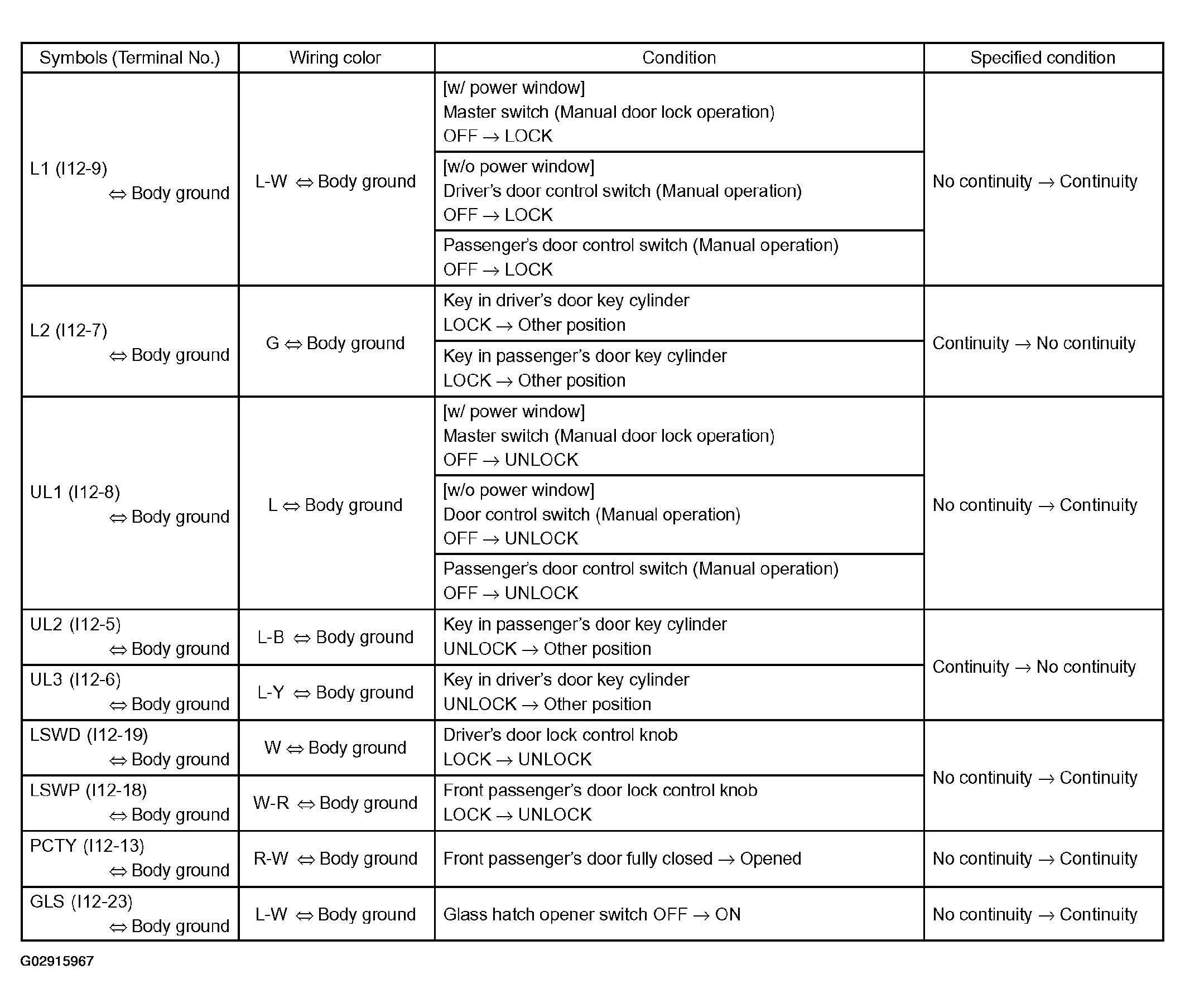

- Disconnect the connector and check each terminal of the disconnected connector.
Standard:
- Reconnect the connector and check each terminal.
Standard:
INTEGRATION RELAY CONNECTOR TERMINAL SPECIFICATIONS (CONNECTOR CONNECTED)Symbols (Terminal No.) Wiring color Condition Specified condition ACTD (I12-1) <=> Body ground R <=> Body ground Key in driver's door lock cylinder OFF --> LOCK 0 V --> 10 - 14 V --> 1 V or less ACTG (I12-2) <=> Body ground W <=> Body ground Glass hatch opener switch OFF --> ON 0 V --> 10 - 14 V --> 1 V or less If the result is not as specified, the integration relay may malfunction.
- Disconnect the connector and check each terminal of the disconnected connector.

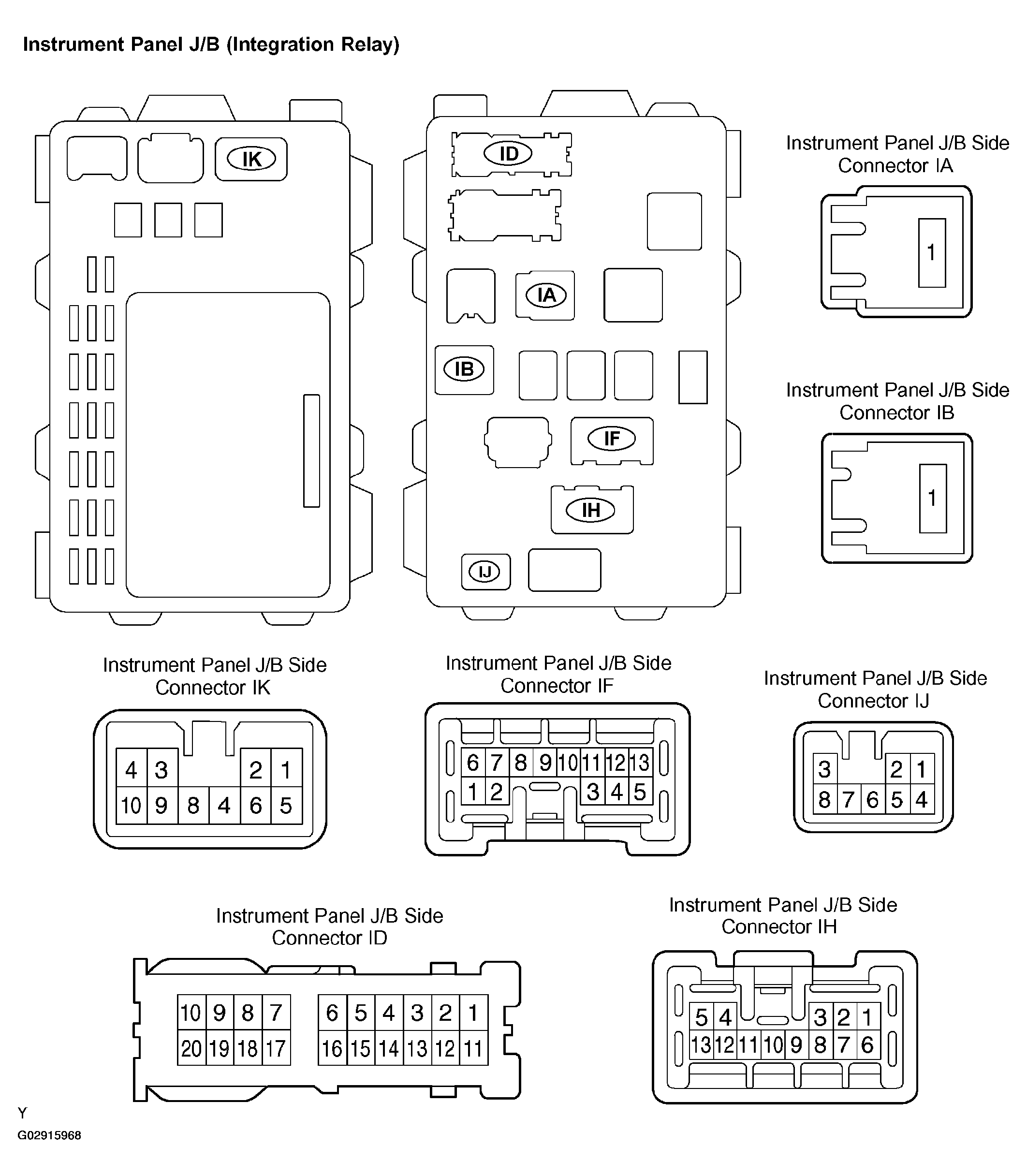

- CHECK INSTRUMENT PANEL J/B (INTEGRATION RELAY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Inspect the DOOR fuse.
- Disconnect connectors ID, IF, IH and IJ of the instrument panel J/B.

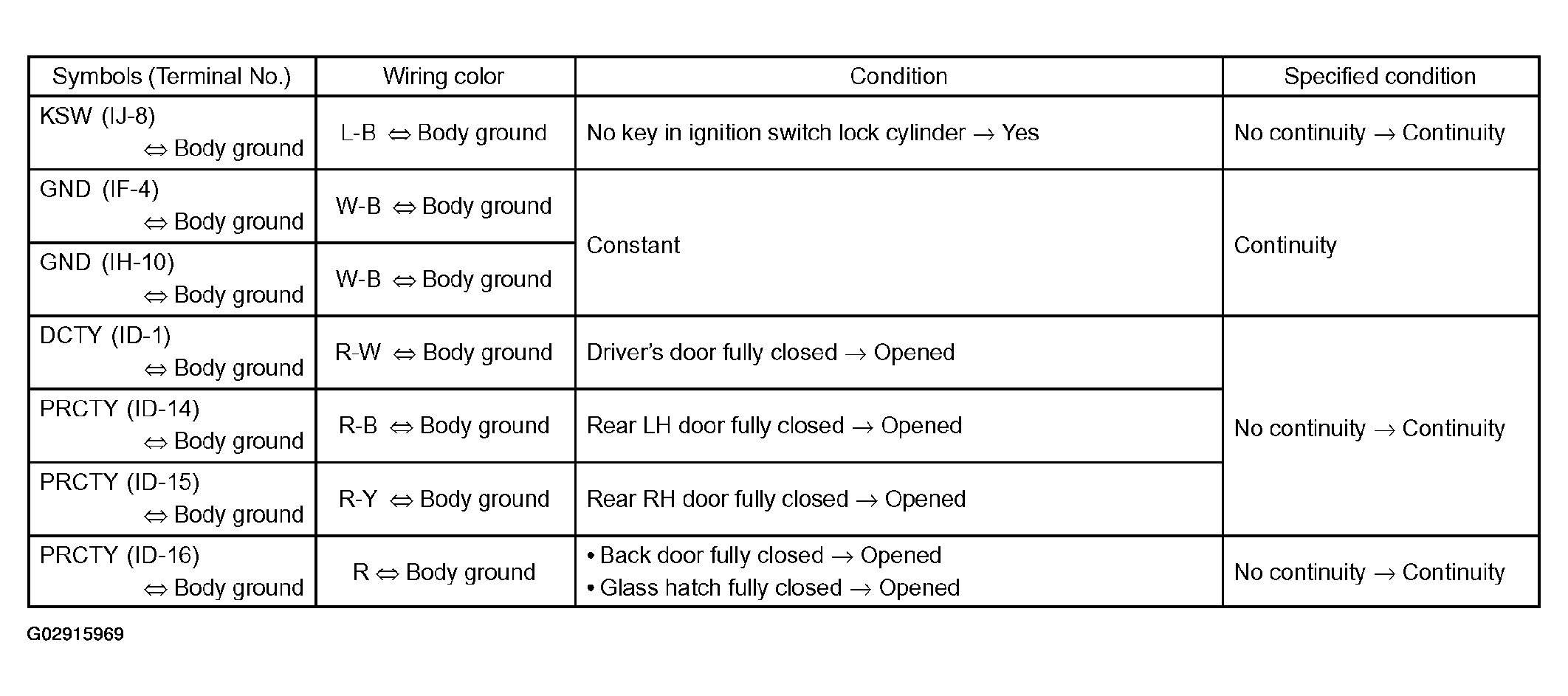

- Check each terminal of the disconnected connectors.
Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, the vehicle's side may malfunction.

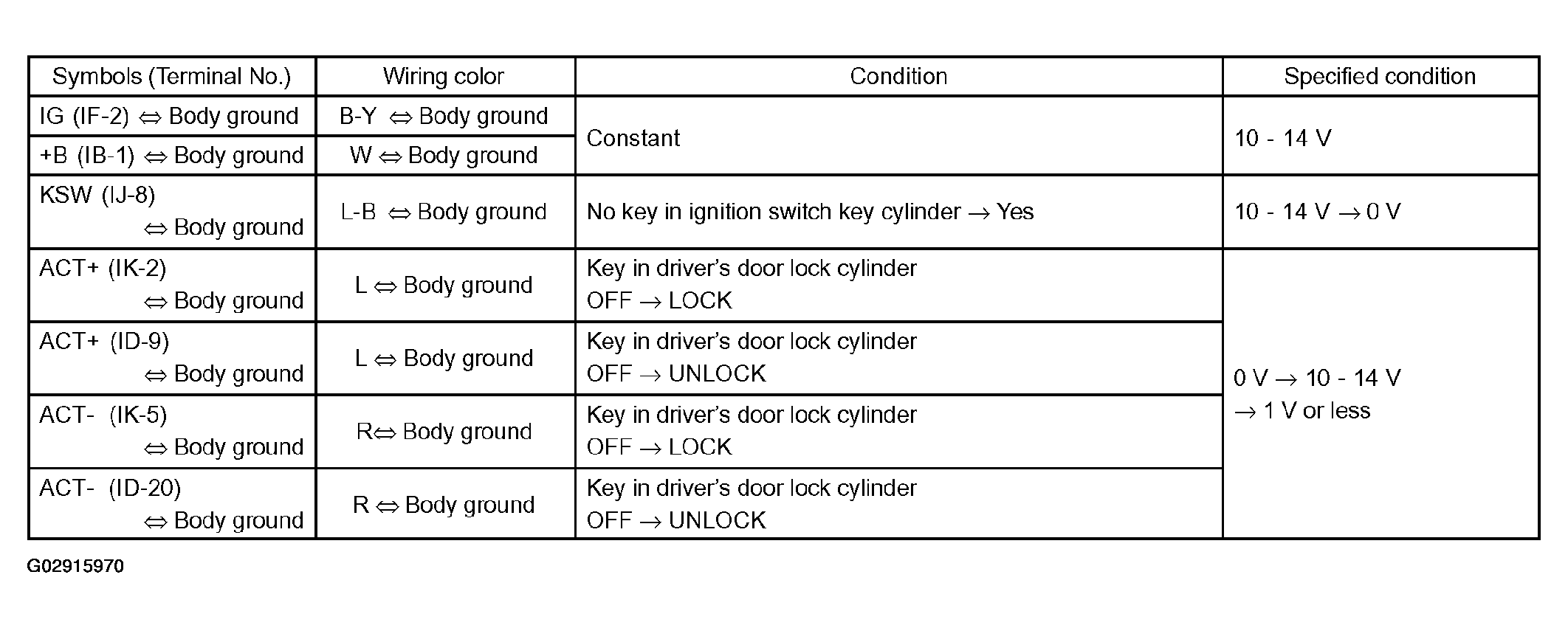

- Reconnect the connectors and check each terminal.
Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, the integration relay or instrument panel J/B assy may malfunction.
