Navigation System - Diagnostics: Location

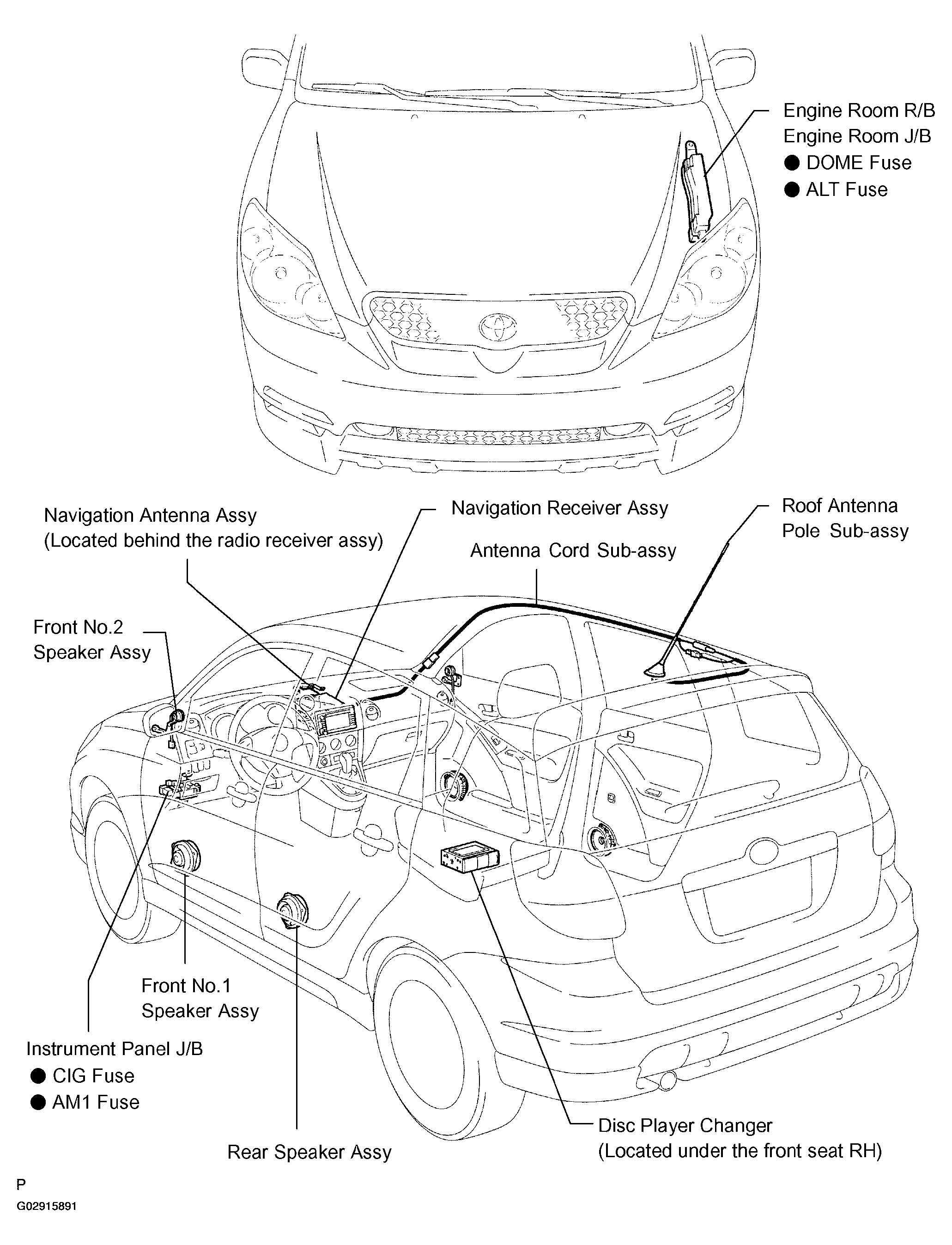

Fig 1: Locating Navigation System Components

G02915891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
