Terminals Of Ecu

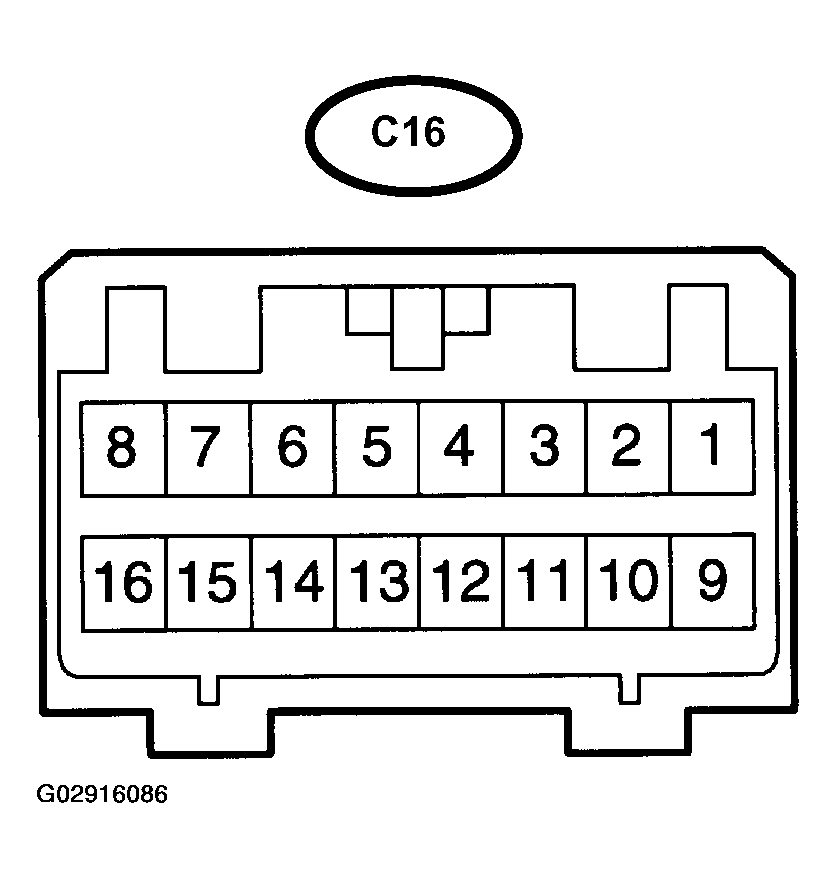

Fig 1: Identifying ECU Connector C16

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

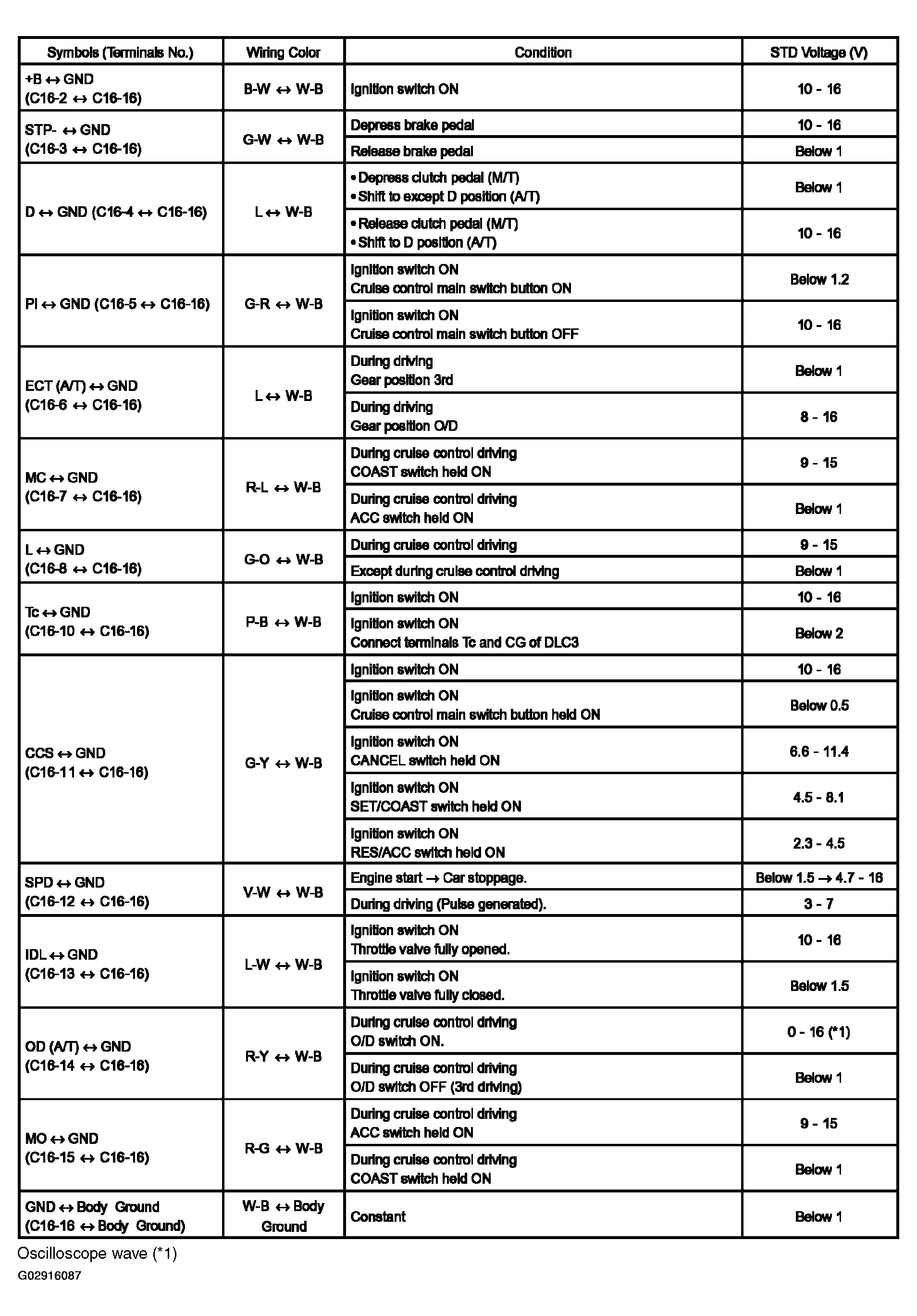

Fig 2: ECU Terminals, Wiring Colors & Voltages Condition Table

NOTE:

Terminal: OD - GND
Gauge set: 5 V / DIV, 50 ms / DIV
Condition: During cruise control driving O/D switch ON.

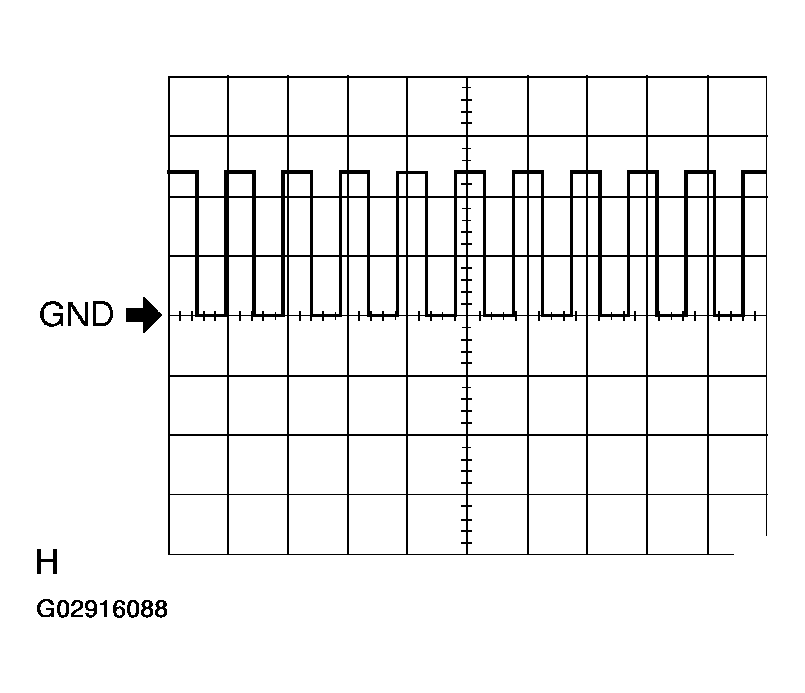

Fig 3: Graphing Oscilloscope Wave
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
