Cruise Control System - Diagnostics: Location

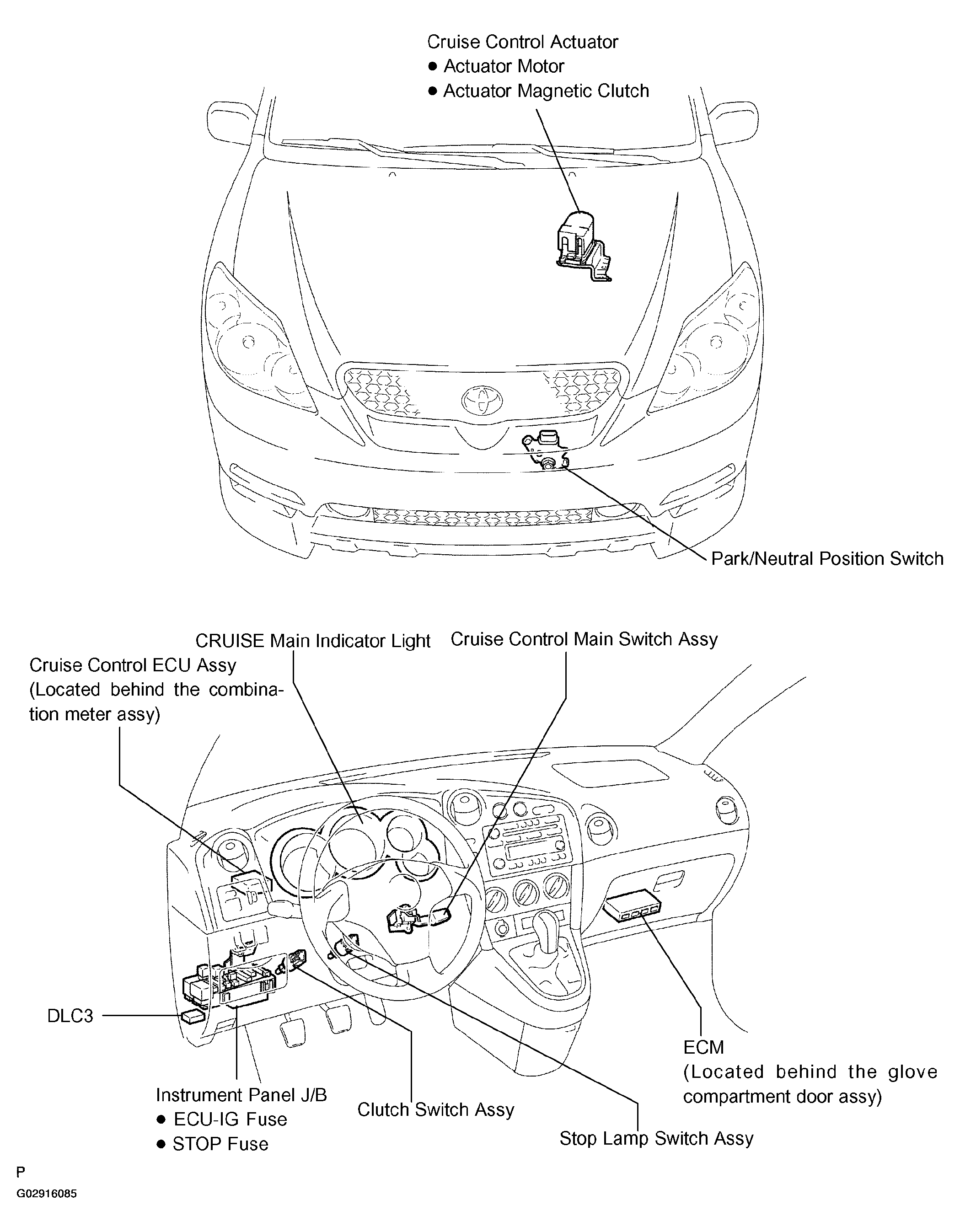

Fig 1: Locating Cruise Control Fuss Switch, ECM & Actuator Motor

G02916085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
