Steering Column ASSY: Components

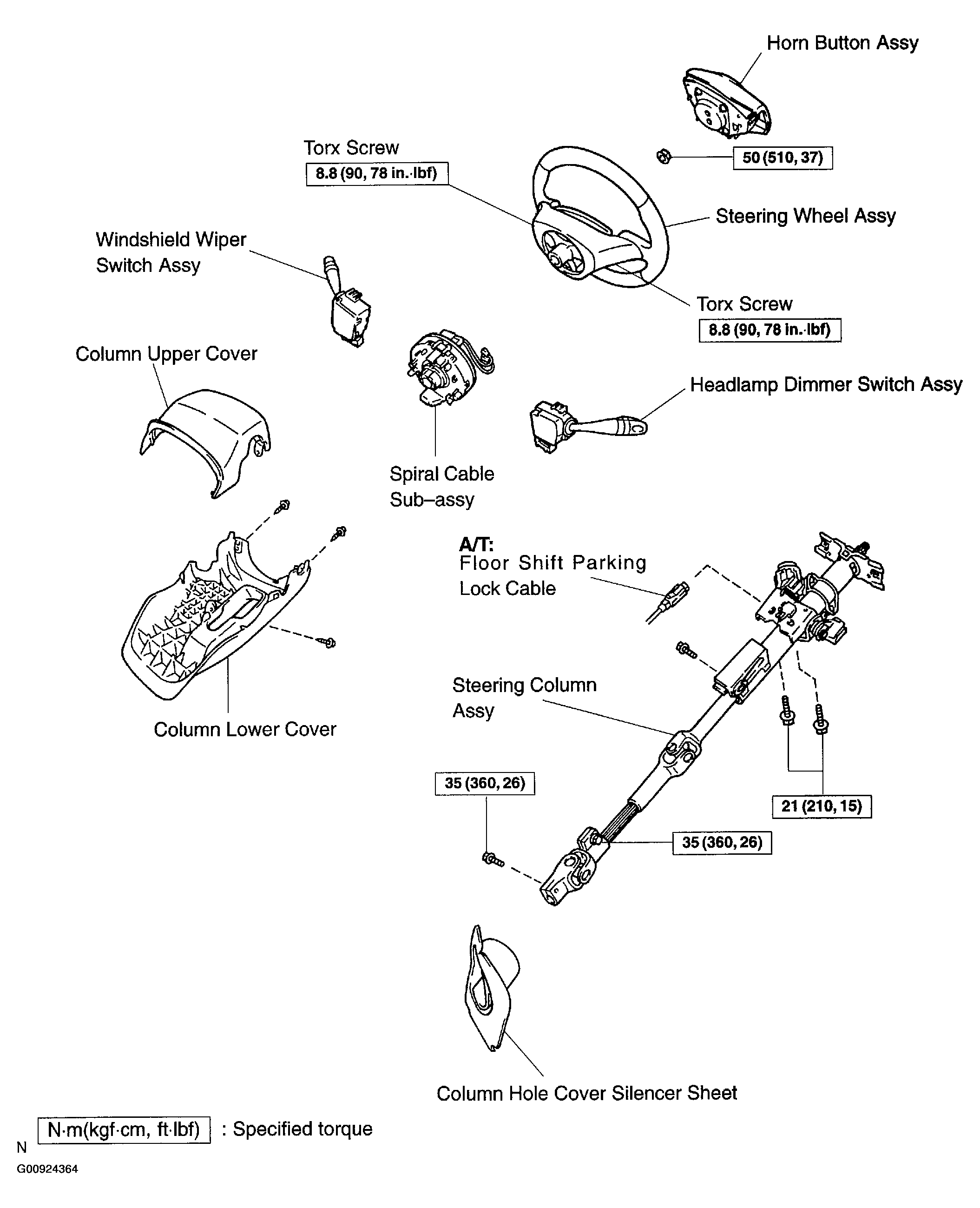

Fig 1: Exploded View Of Steering Column Assembly Components (1 Of 2)
G00924364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

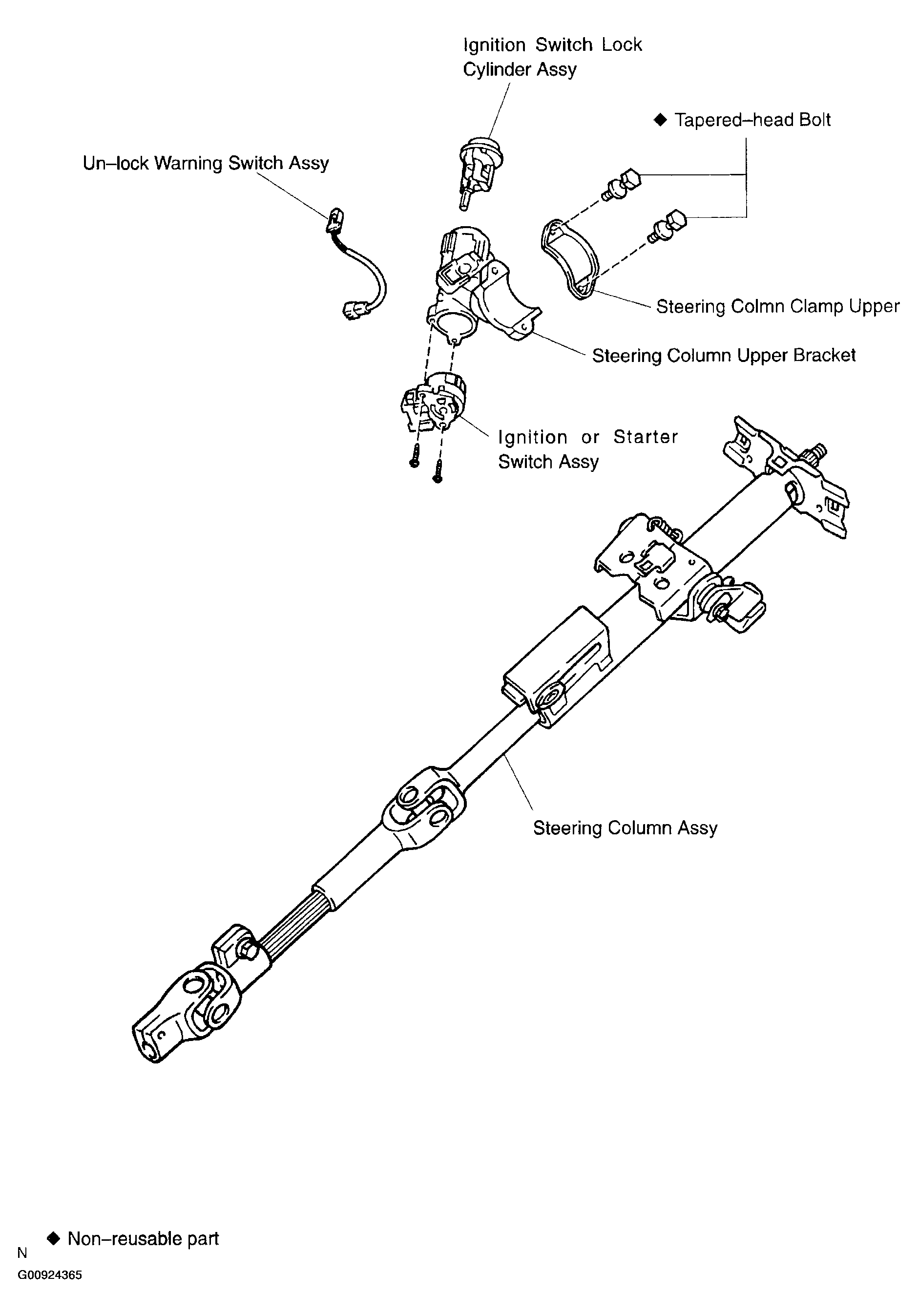

Fig 2: Exploded View Of Steering Column Assembly Components (2 Of 2)
G00924365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
