Circuit Description

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

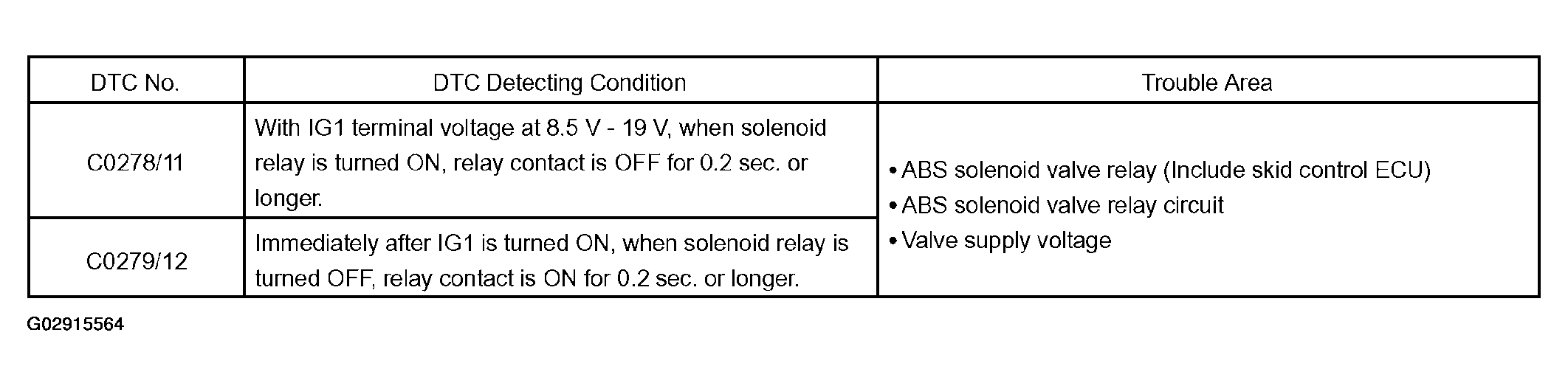

Fig 1: Identifying ABS Solenoid Relay DTC's, Detected Conditions & Trouble Areas
G02915564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
