Output Shaft: Components

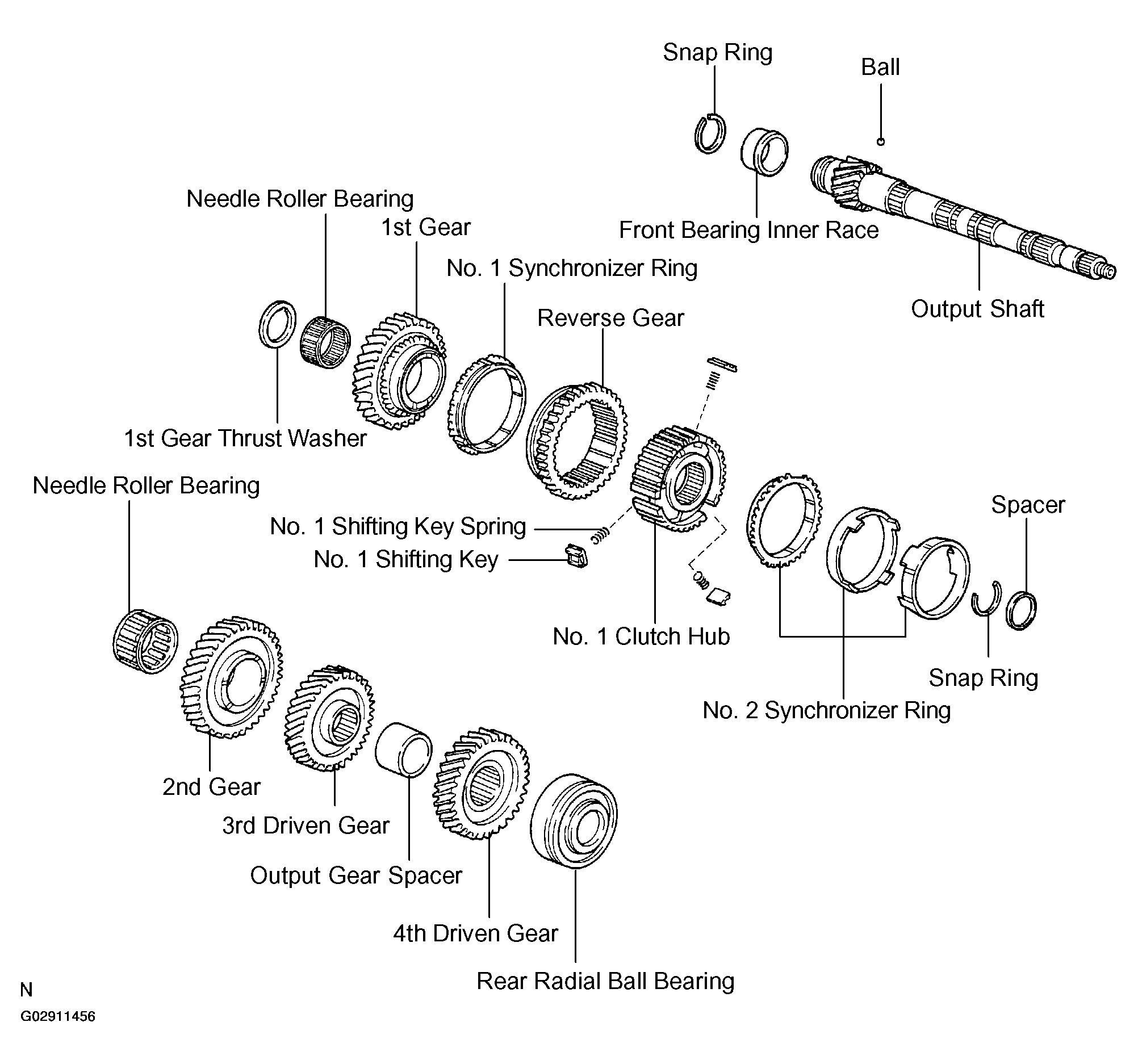

Fig 1: Locating Output Shaft Components

G02911456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
