Manual Transaxle Unit: Components

Fig 1: Locating Manual Transaxle Components (1 Of 2)
G02911375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

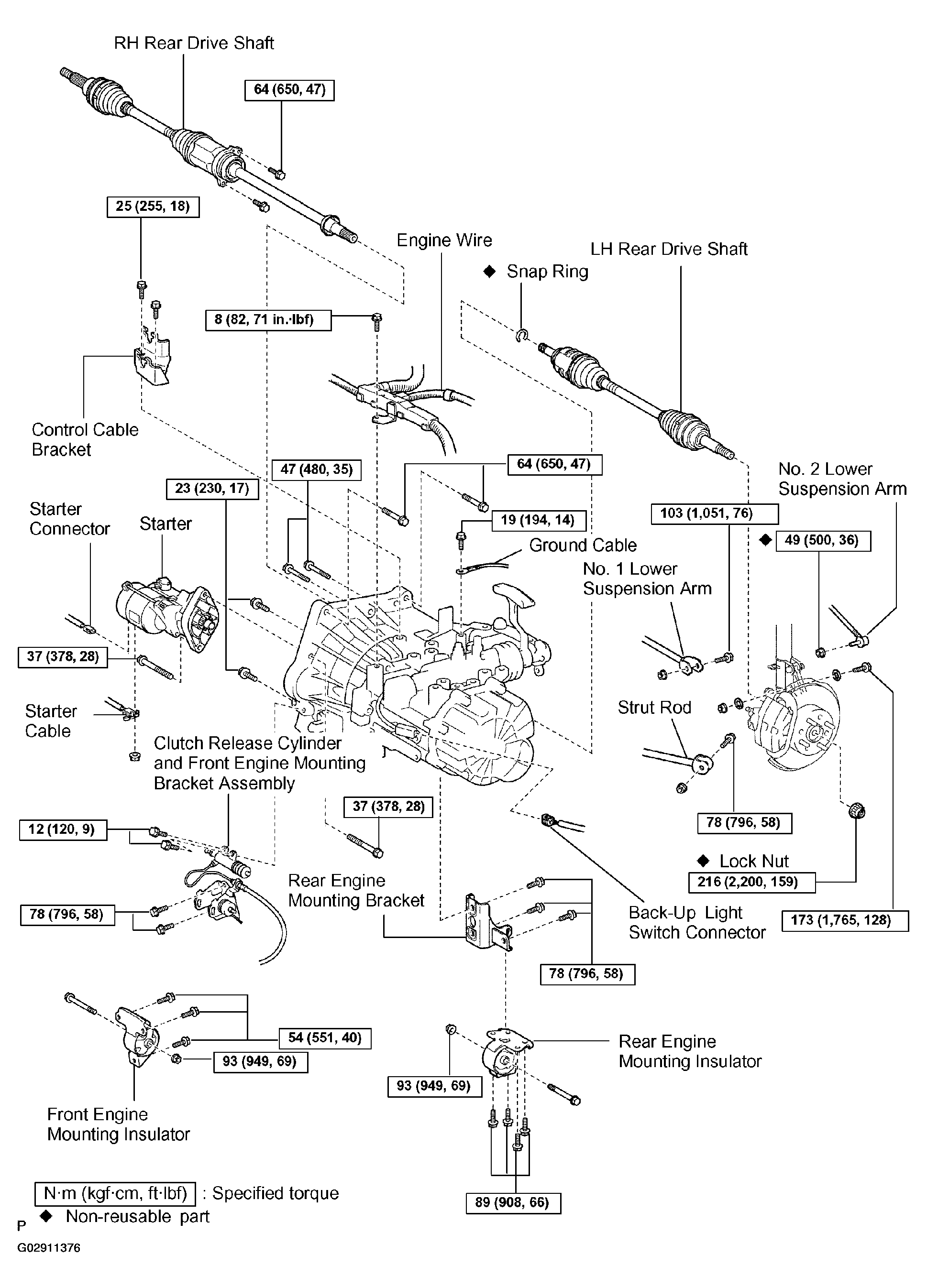

Fig 2: Locating Manual Transaxle Components (2 Of 2)
G02911376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
