Manual Transaxle Assembly: Components

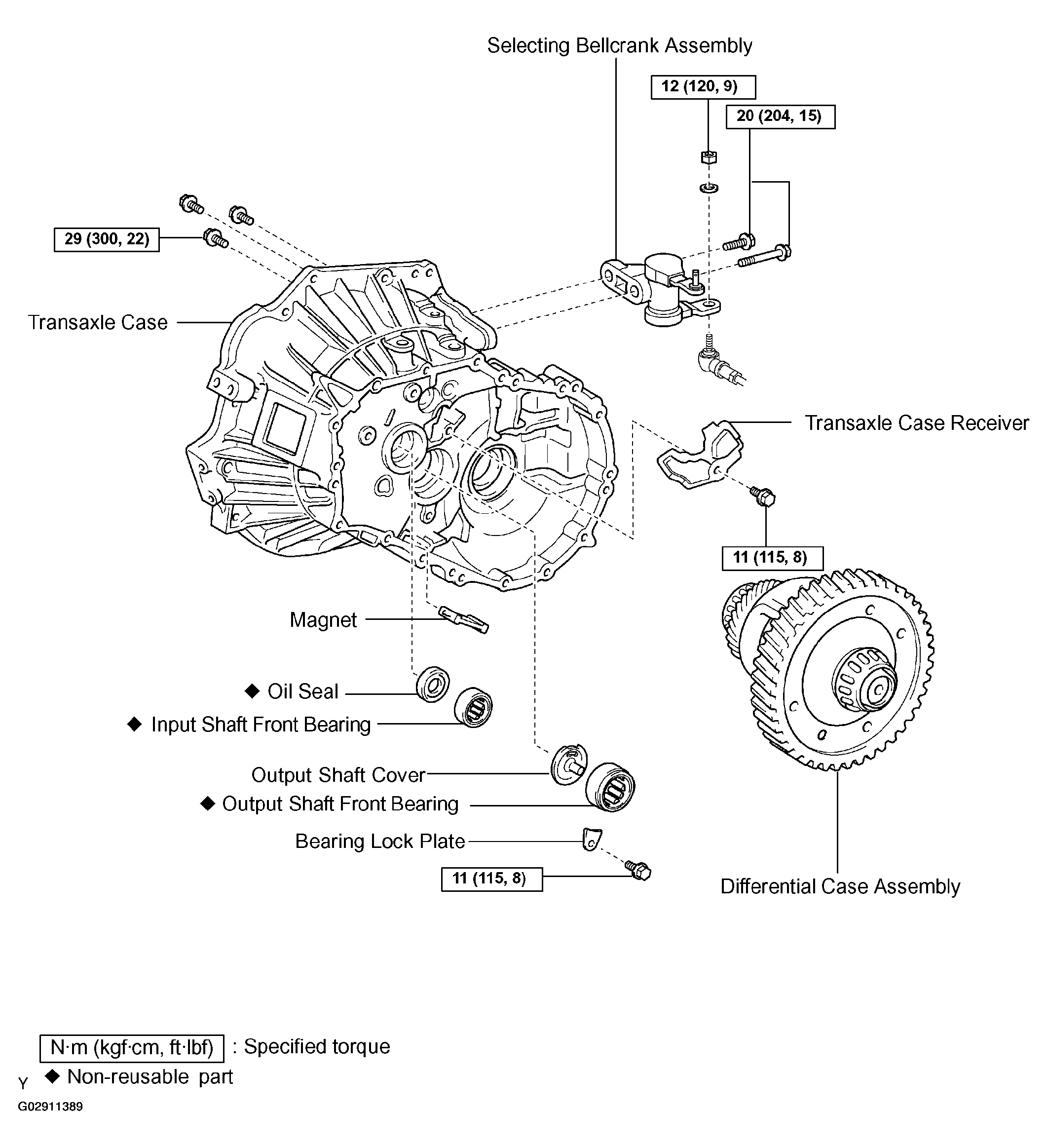

Fig 1: Locating Manual Transaxle Assembly Components (1 Of 3)
G02911389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

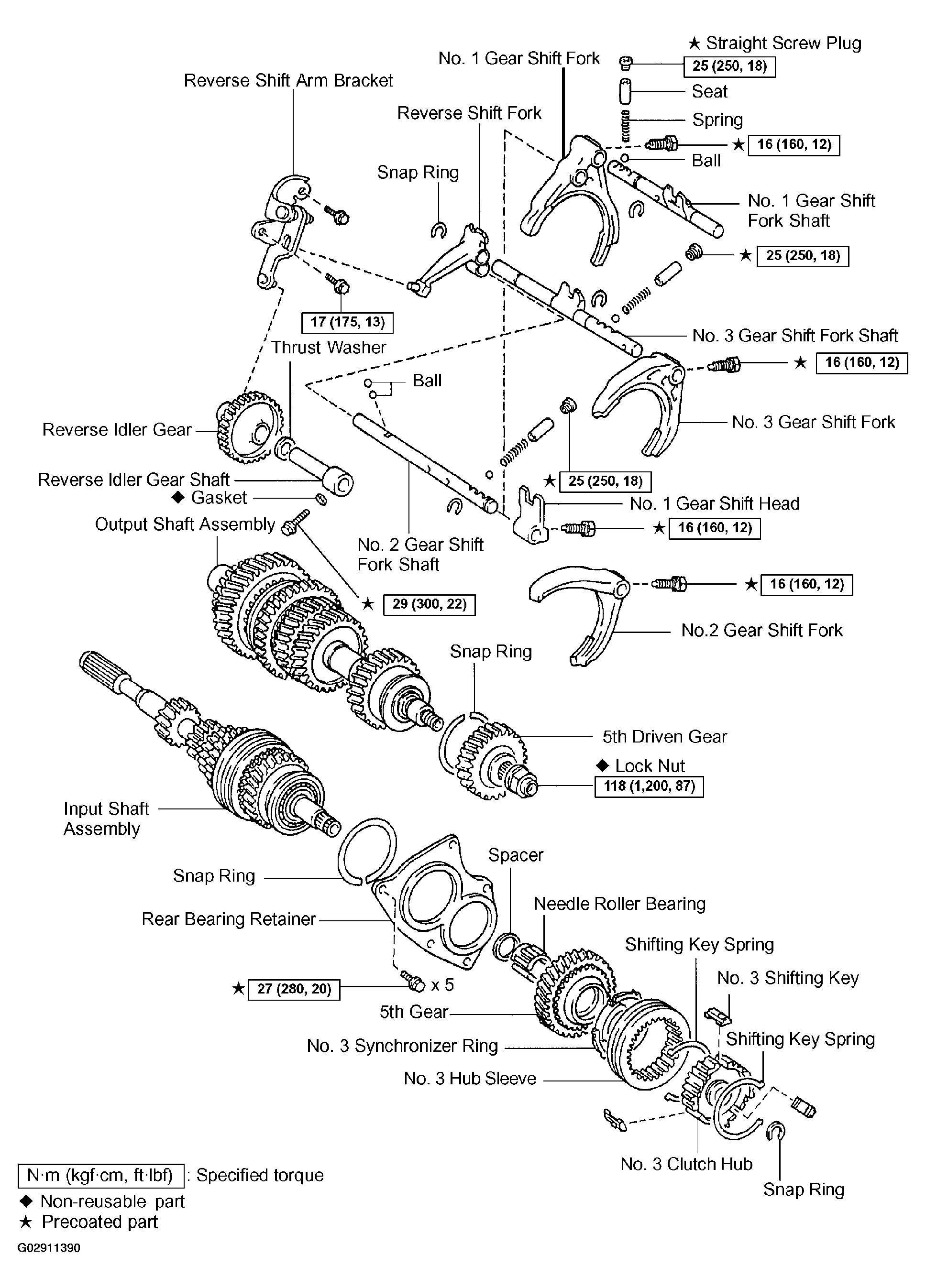

Fig 2: Locating Manual Transaxle Assembly Components (2 Of 3)
G02911390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

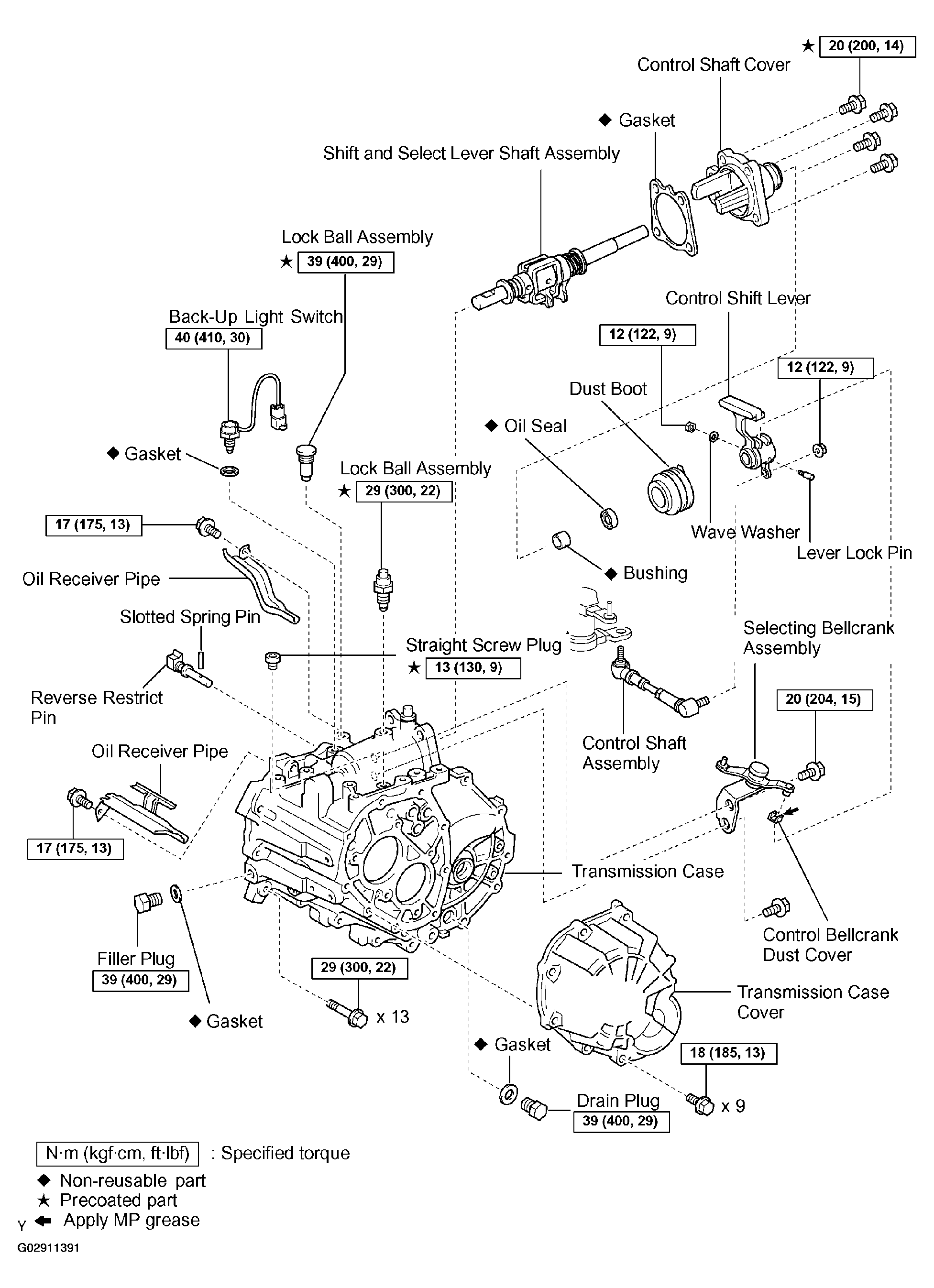

Fig 3: Locating Manual Transaxle Assembly Components (3 Of 3)
G02911391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
