Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Input Shaft >> Components

Input Shaft: Components

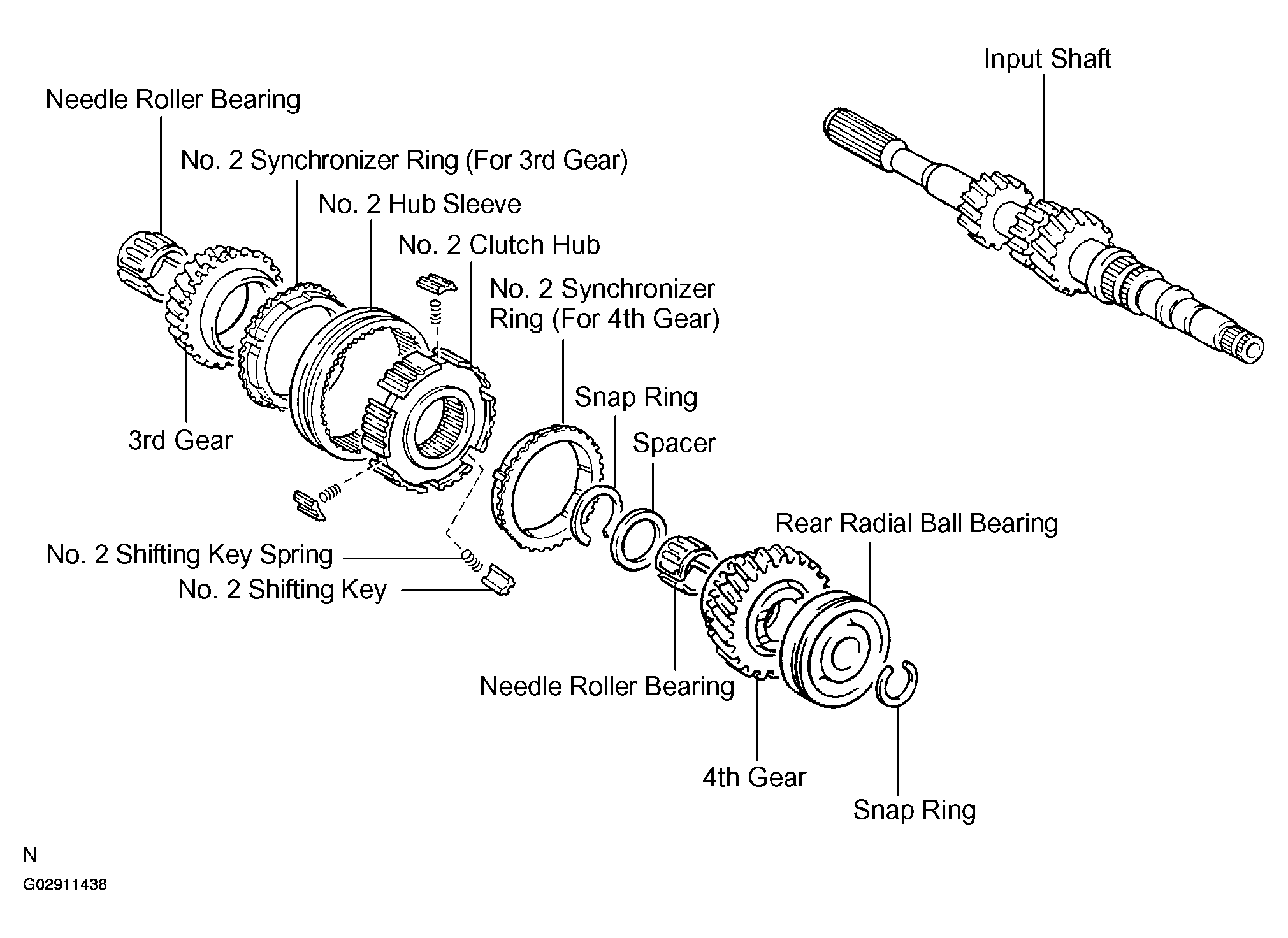

Fig 1: Locating Input Shaft Components

G02911438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
