Shift Lever: Removal

  1. REMOVE DRIVER AND PASSENGER SEATS (See )
  2. REMOVE CONSOLE BOX (See )
  3. REMOVE SHIFT LEVER
    1. Remove the shift knob.
    2. Remove the 3 clamps.
    3. Disconnect the shift lever position sensor connector.
    4. Disconnect the shift lock with shift illumination lamp connector.
    5. Remove the 4 bolts and shift lever.

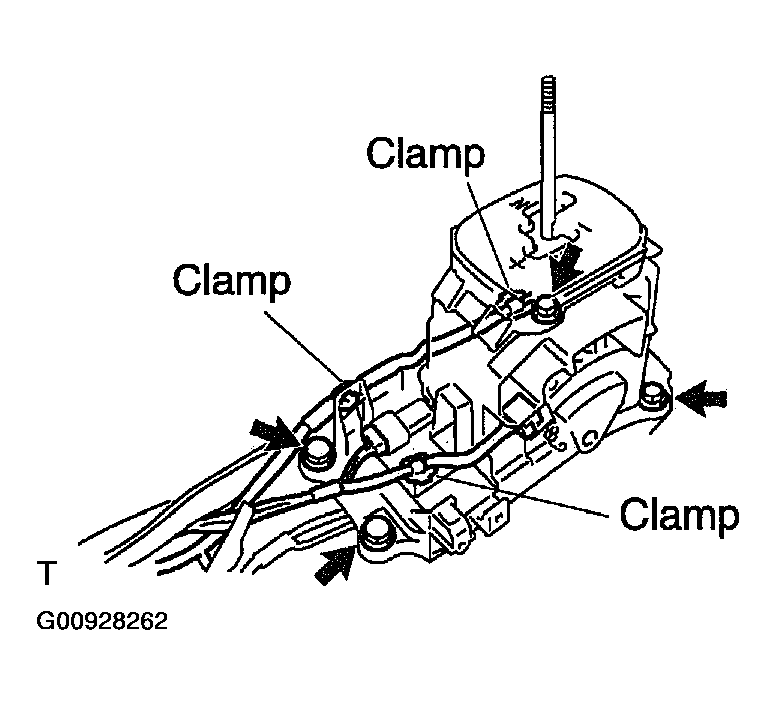

    Fig 1: Removing Shift Lever And Bolts
    G00928262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
