Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Trans Sequential >> Shift And Select Lever Shaft >> Components

Shift And Select Lever Shaft: Components

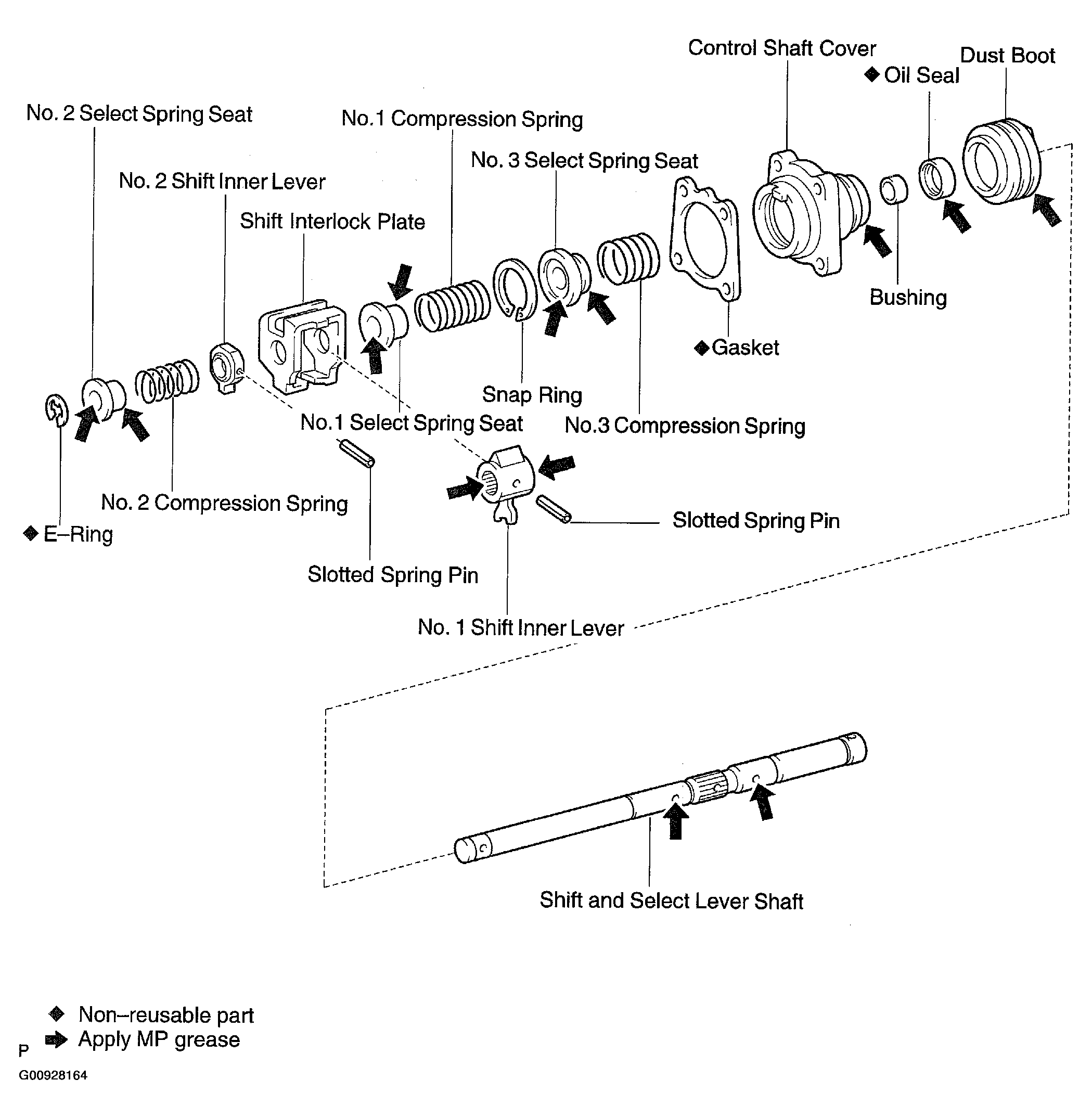

Fig 1: Identifying Shift And Select Lever Shaft Components

G00928164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
