Hydraulic Power Unit: Removal

CONFIRM THAT GEAR IS IN N POSITION (See SEQUENTIAL MANUAL TRANSMISSION SYSTEM )
REDUCE ACCUMULATOR PRESSURE (See PRE-CHECK )
REMOVE SUSPENSION UPPER BRACE
Remove the 2 bolts, 2 nuts and suspension upper brace.
REMOVE AIR CLEANER CAP, AIR FILTER AND AIR CLEANER CASE
1. Disconnect the MAF meter connector, VSV connector for CCV and vacuum hose.
2. Disconnect the 2 clamps, and remove the air cleaner cap.
3. Remove the air filter.
4. Remove the 2 bolts and air cleaner case.
DISCONNECT SMT SYSTEM HOSES (See REMOVAL )
REMOVE HPU ASSEMBLY
1. Remove the reservoir cap cover from the HPU assembly.
2. Install a reservoir cap seal.
  Part the No.:

  Reservoir cap seal: 90080-30087
3. Disconnect the HPU connector from the HPU assembly.

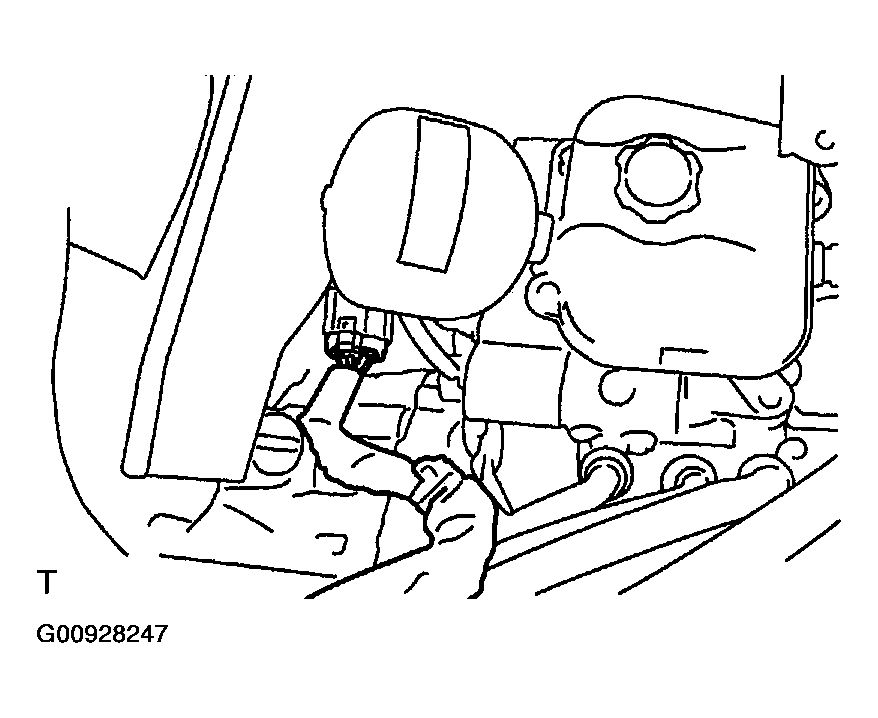

  Fig 1: Disconnecting HPU Connector From HPU Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 bolts and the HPU assembly.
REMOVE HPU BRACKET FROM HPU
Remove the 3 bolts and HPU bracket.

Fig 2: Removing Bolts And HPU Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
