Gear Shift Actuator: Replacement

REPLACE 3 STROKE SENSORS (SELECT, CLUTCH AND SHIFT)
1. Disconnect the 3 stroke sensor connectors and 3 connector packings.
  HINT:

  Place markings on each sub-wire before removing the sub-wires.
2. Disconnect the 2 sub-wires from the GSA connector bracket.

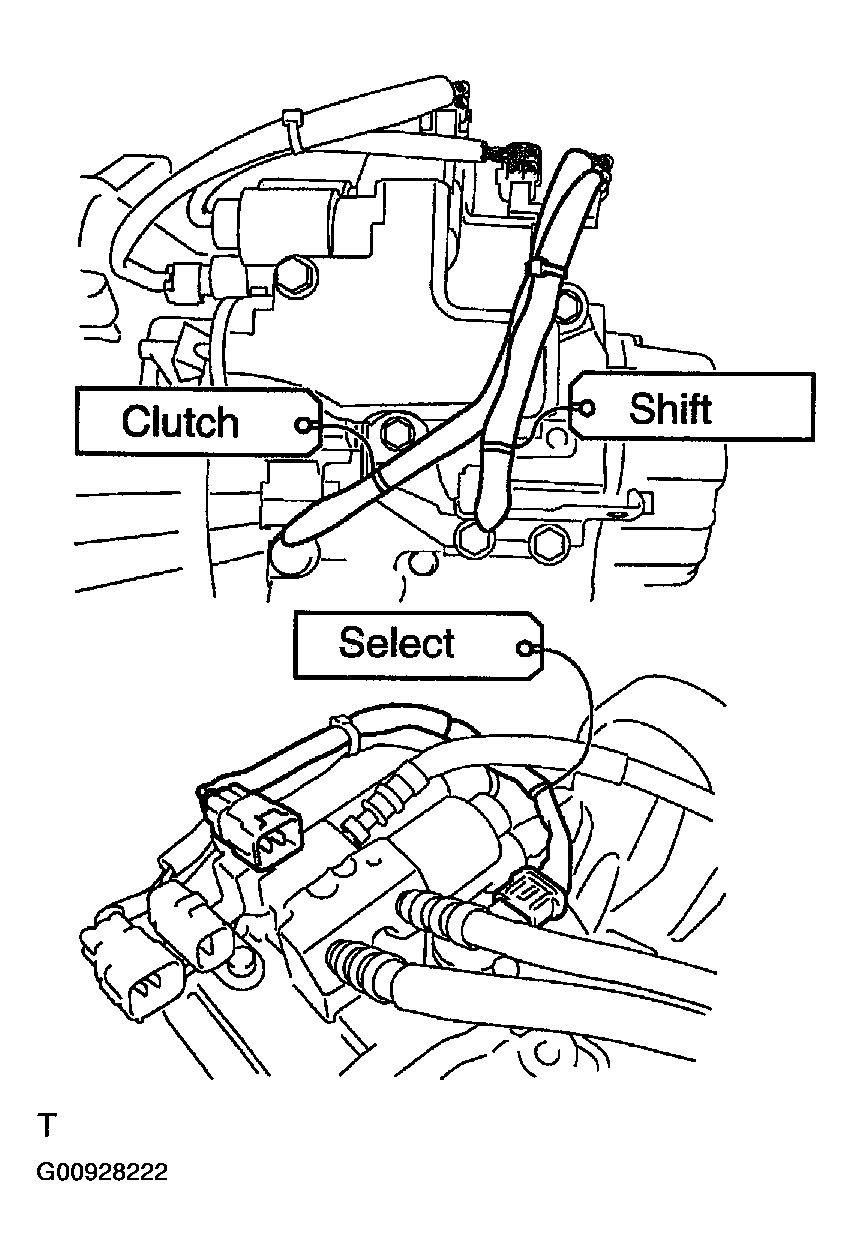

  Fig 1: Disconnecting Sub-Wires From GSA Connector Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The way of replacing the 3 stroke sensors is the same.
3. Using a torx socket wrench (T25), remove the 2 torx bolts, sensor cover and stroke sensor.
4. Apply sequential M/T grease to a new stroke sensor and the piston ring in the GSA.
5. Using a torx socket wrench (T25), install the stroke sensor and sensor cover with the 2 torx bolts.
  1. Torque: 2.2 N.m (22 kgf.cm, 19 in..lbf)
6. Install the 3 connector packings to each stroke sensor connector.
7. Connect the 3 stroke sensor connectors.

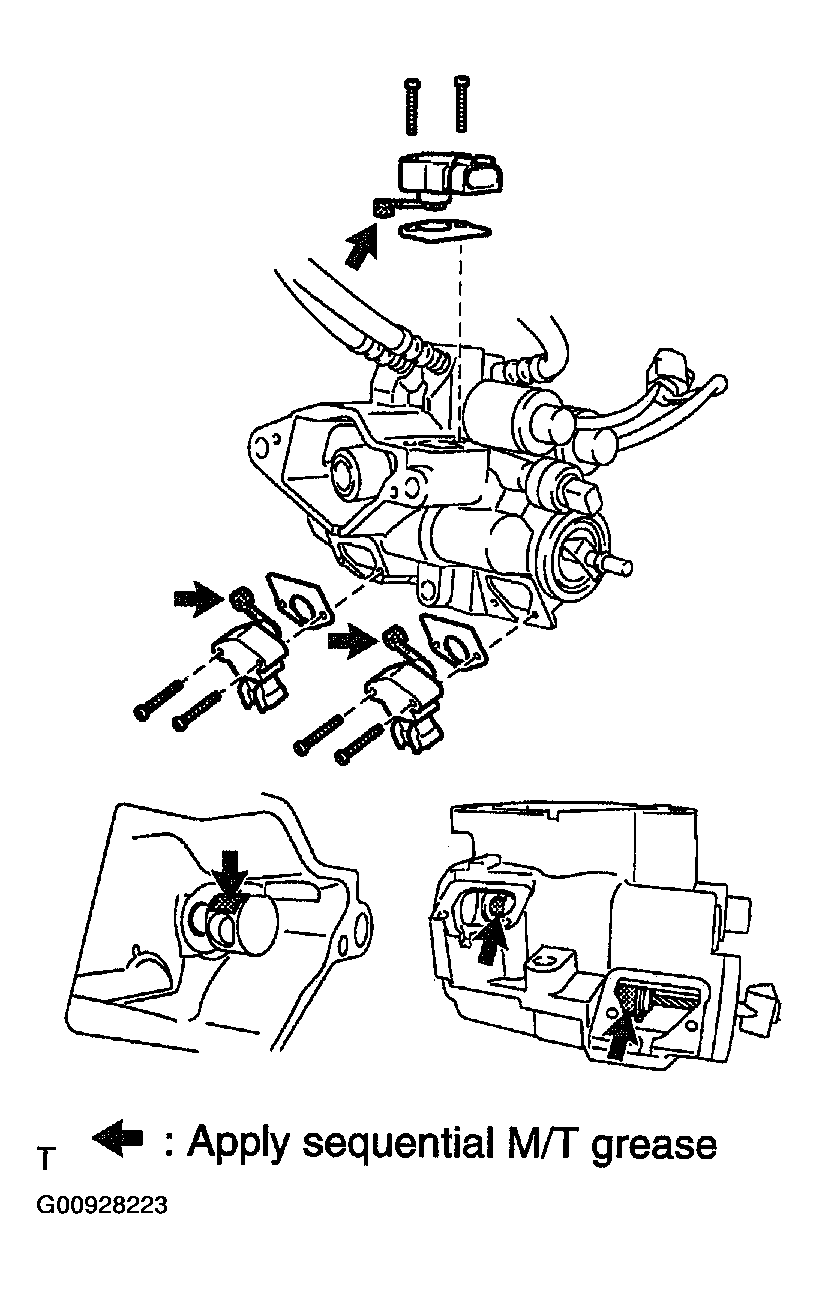

Fig 2: Removing Torx Bolts, Sensor Cover And Stroke Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE SHIFT ACTUATOR LINK
1. Remove the shift actuator link from the GSA.
2. Apply sequential M/T grease to a new shift actuator link as shown in the illustration.
3. Install the shift actuator link to the GSA.

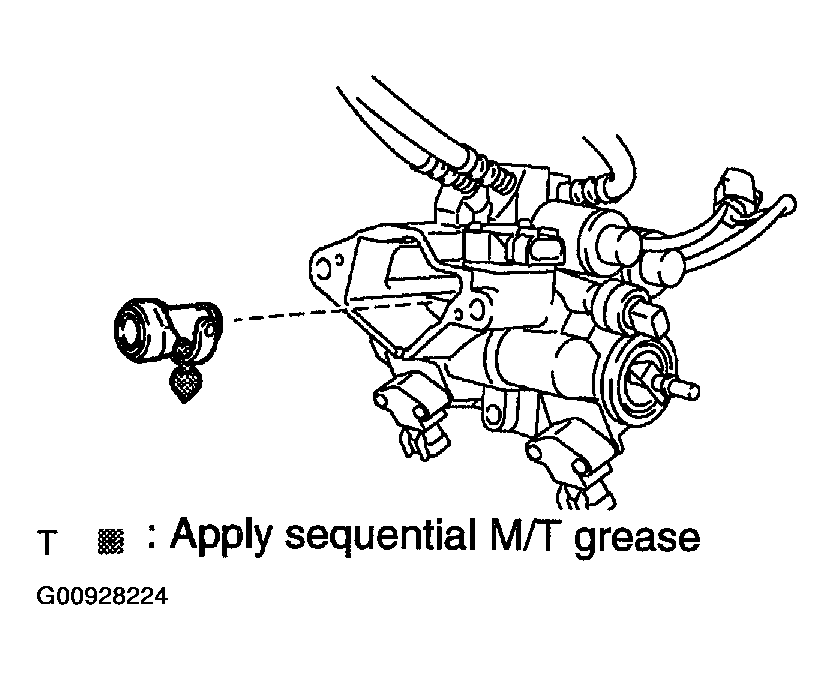

Fig 3: Applying Sequential M/T Grease To A New Shift Actuator Link
