DTC P2120: Throttle/Pedal Position Sensor/Switch "D" Circuit*: Wiring Diagram

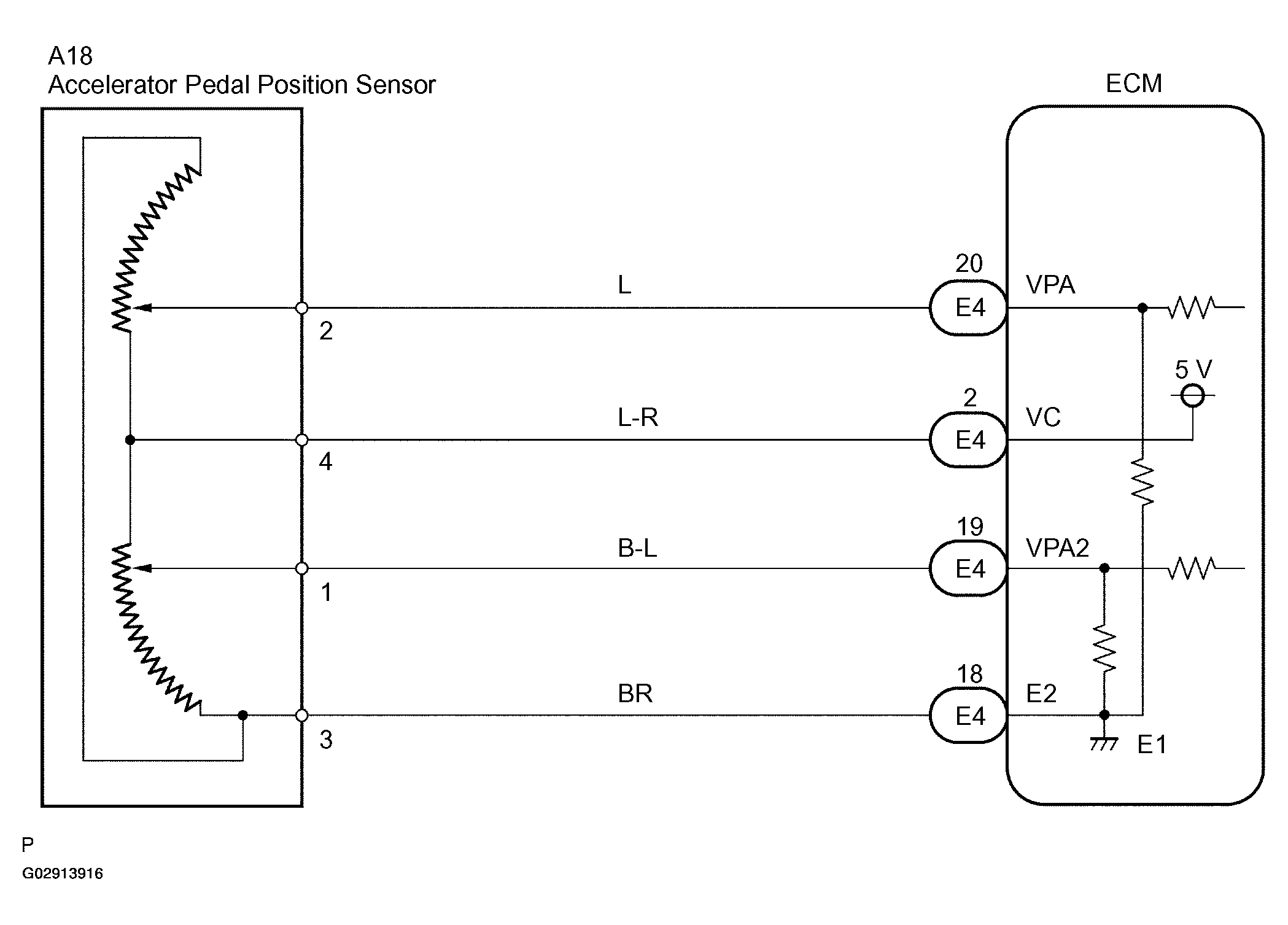

Fig 1: Wiring Diagram - Accelerator Pedal Position Sensor

G02913916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
