Parts Layout And Schematic Drawing: Location

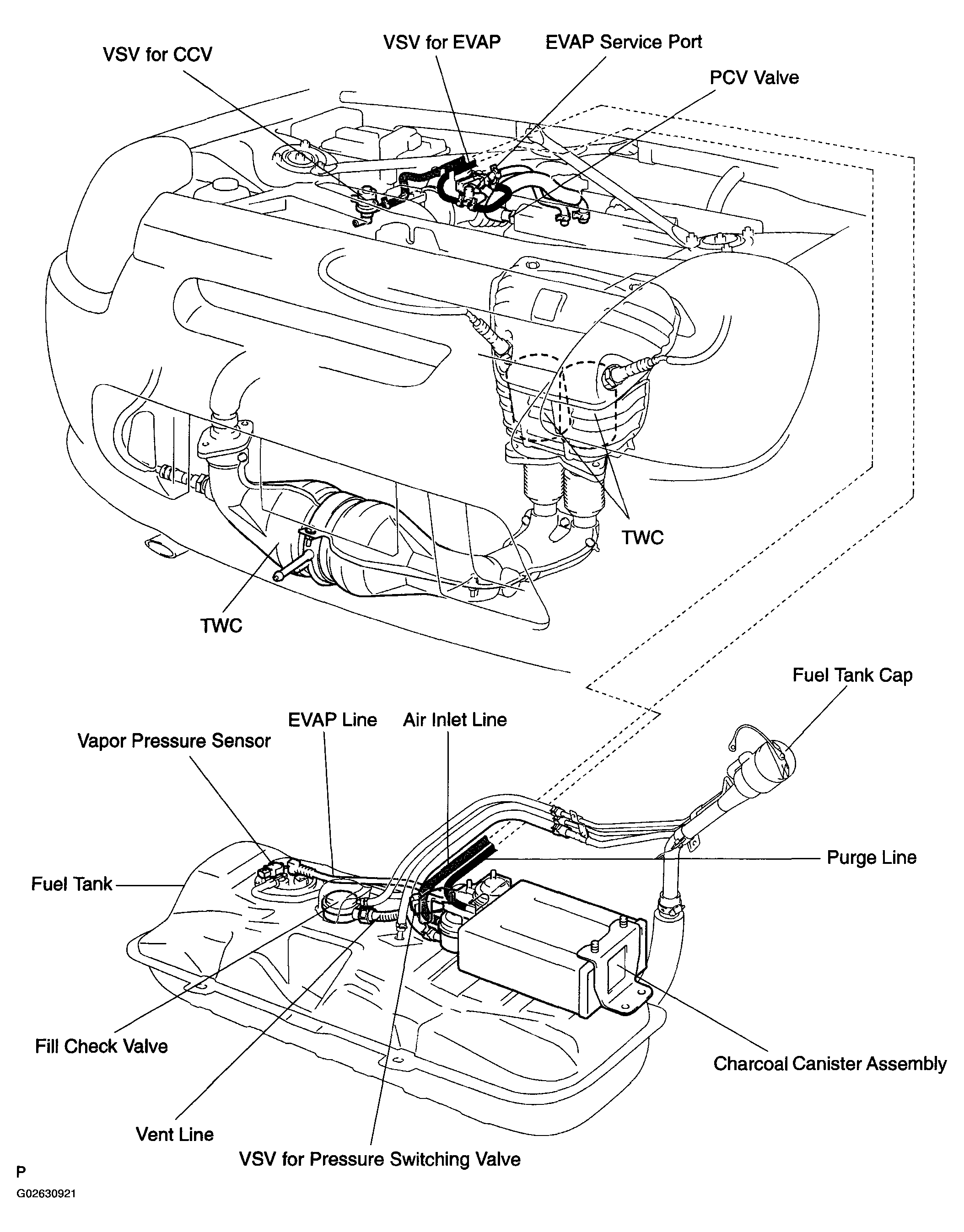

Fig 1: Identifying Emission Control System Parts Layout And Schematic Drawing

G02630921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
