Toyota
>>
2004
>>
MR2 C65M
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
Components
Instrument Panel: Components

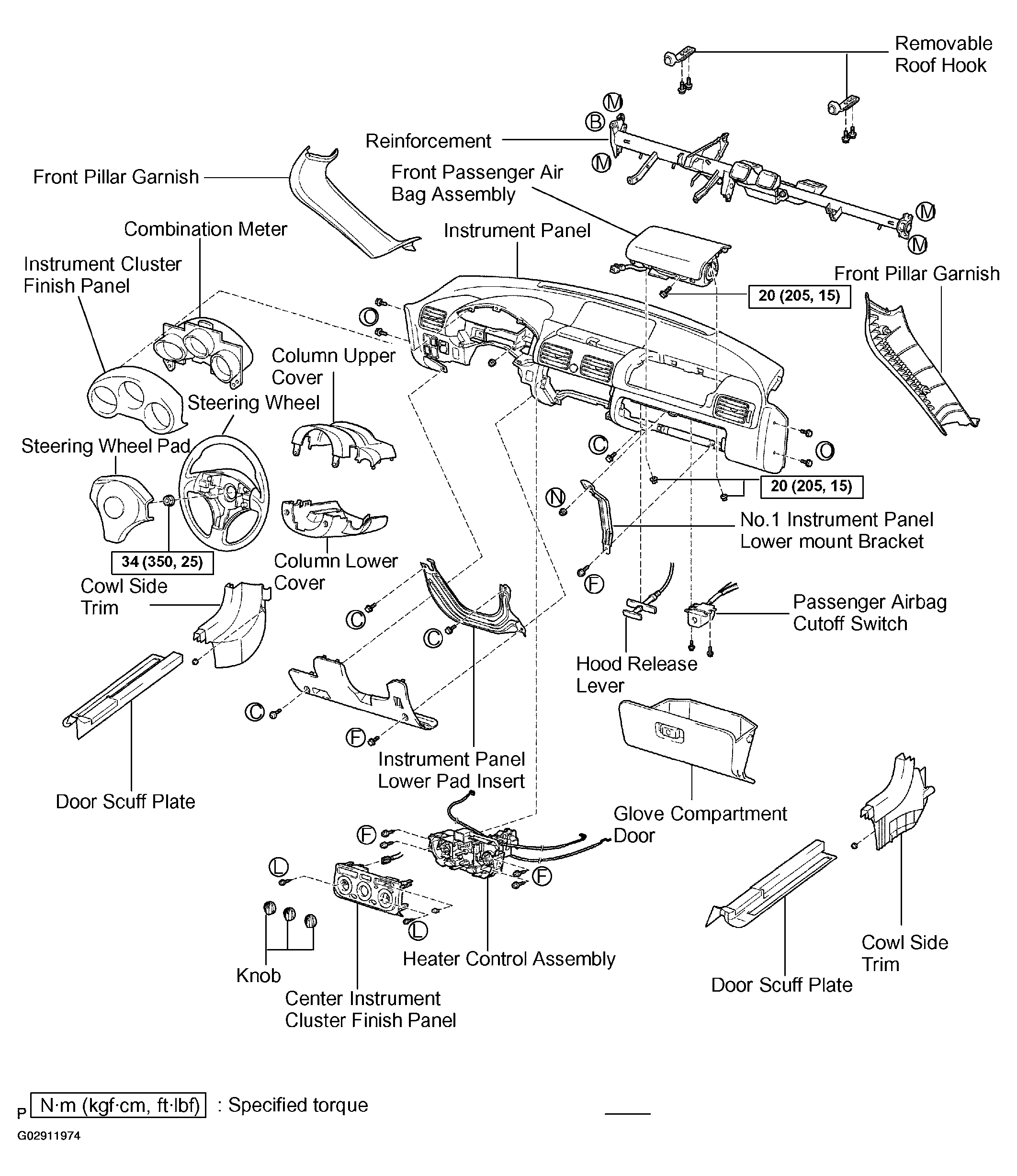

Fig 1: Identifying Instrument Panel Components (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

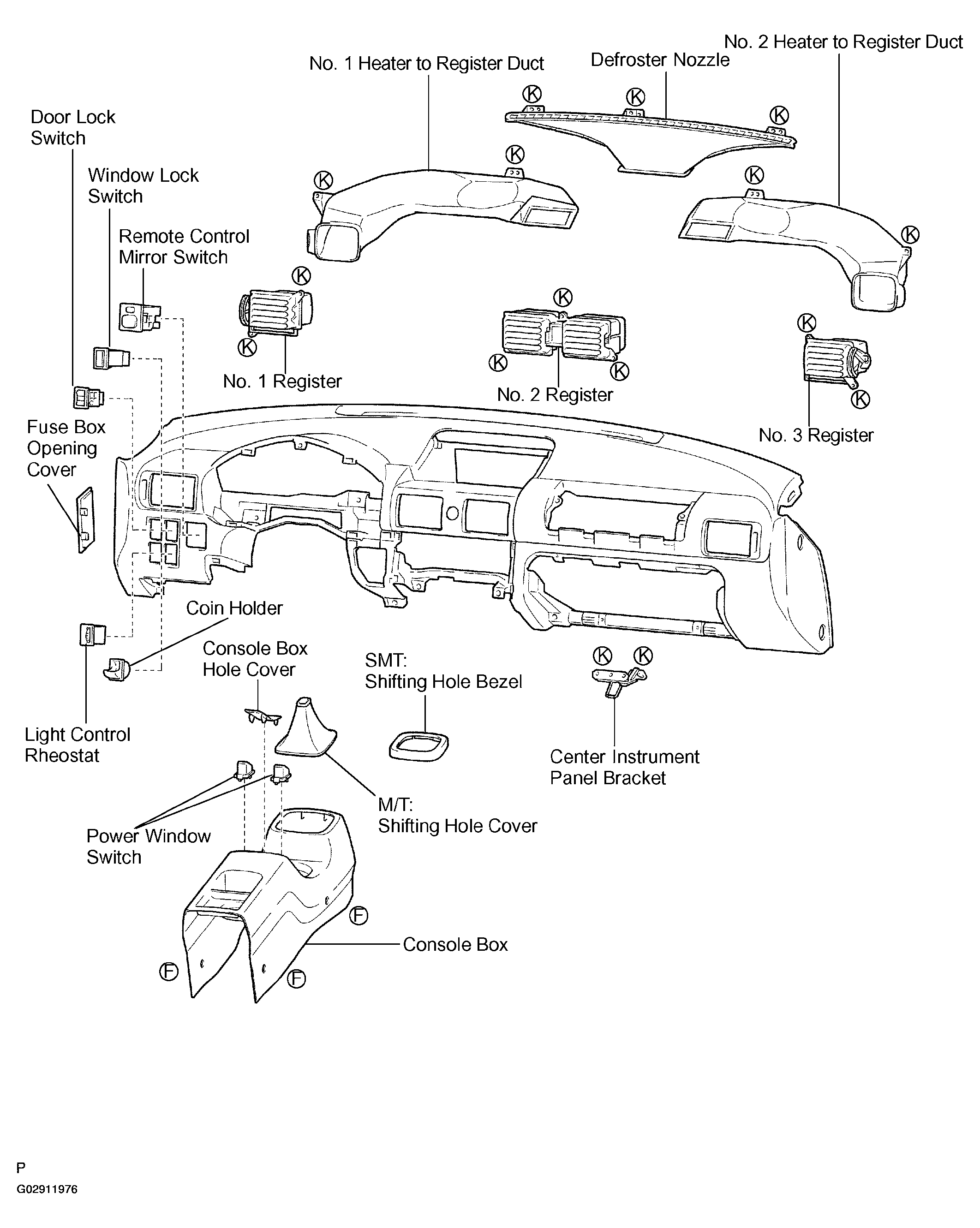

Fig 2: Identifying Instrument Panel Components (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

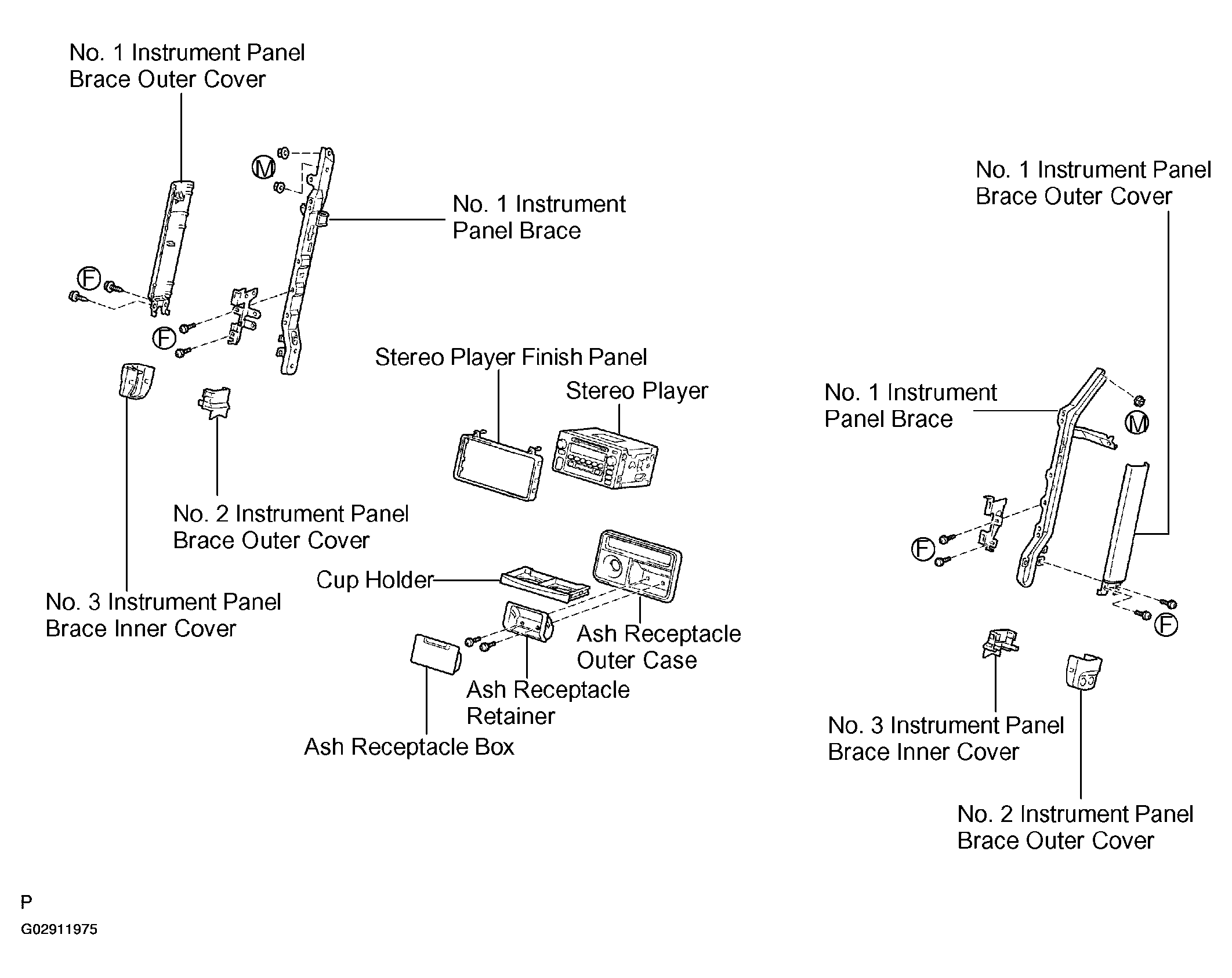

Fig 3: Identifying Instrument Panel Components (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

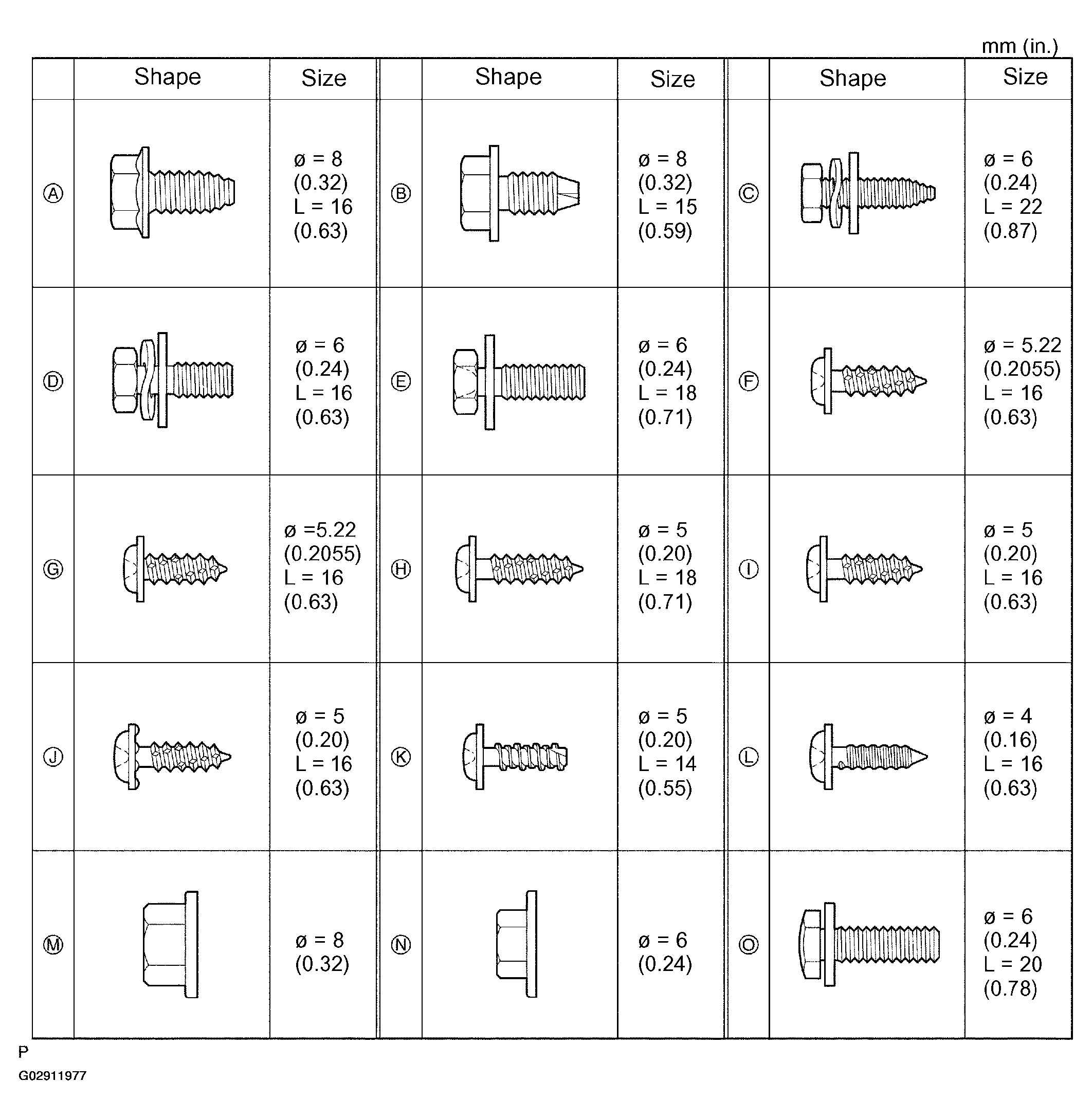

NOTE:
Screw shapes and sizes are indicated in the table below. The codes (A - O) correspond to those indicated on the previous pages.
Fig 4: Identifying Different Fasteners
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
