Combination Meter: Location

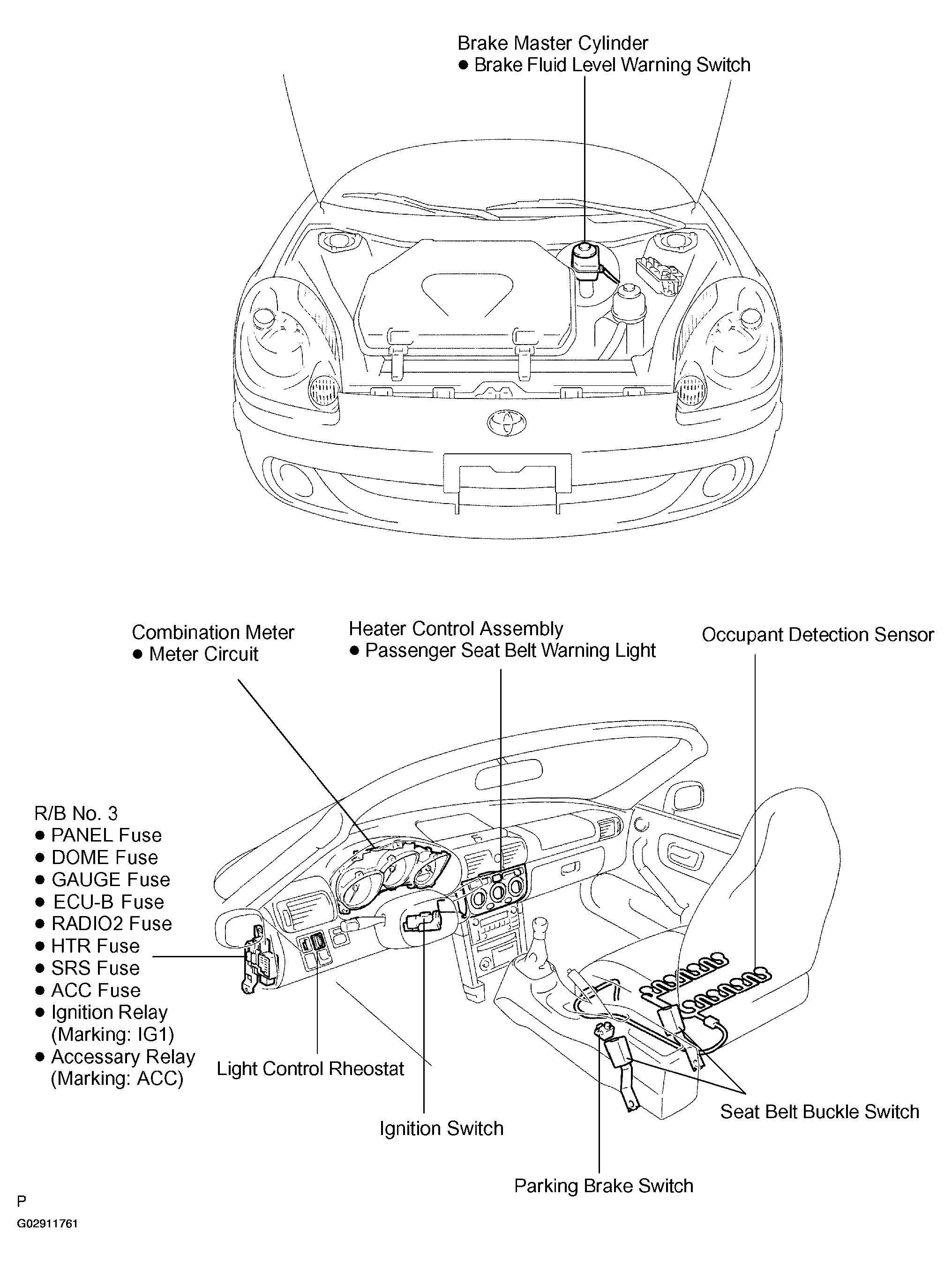

Fig 1: Locating Combination Meter-Related Components (1 Of 2)
G02911761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

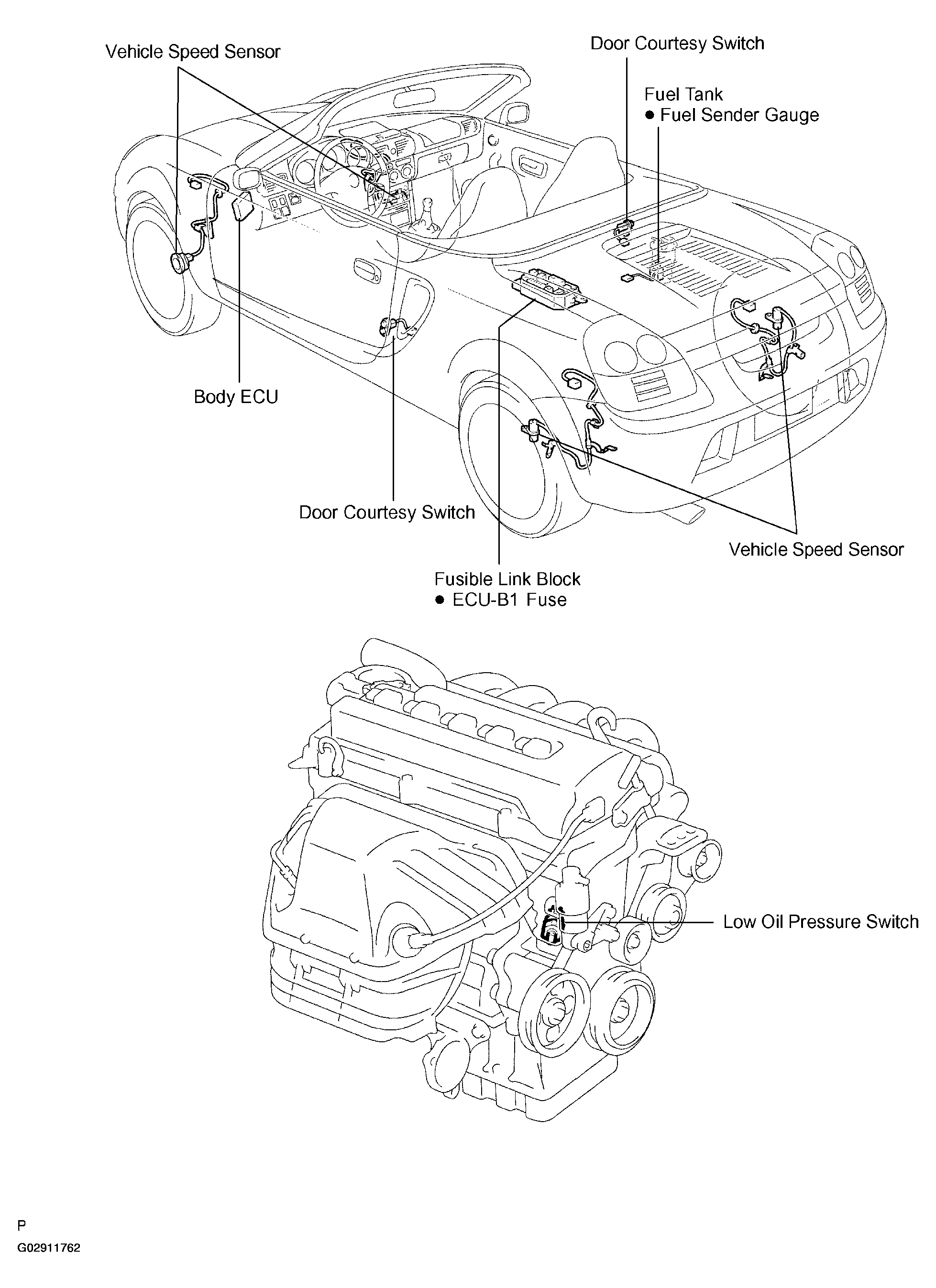

Fig 2: Locating Combination Meter-Related Components (1 Of 2)
G02911762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

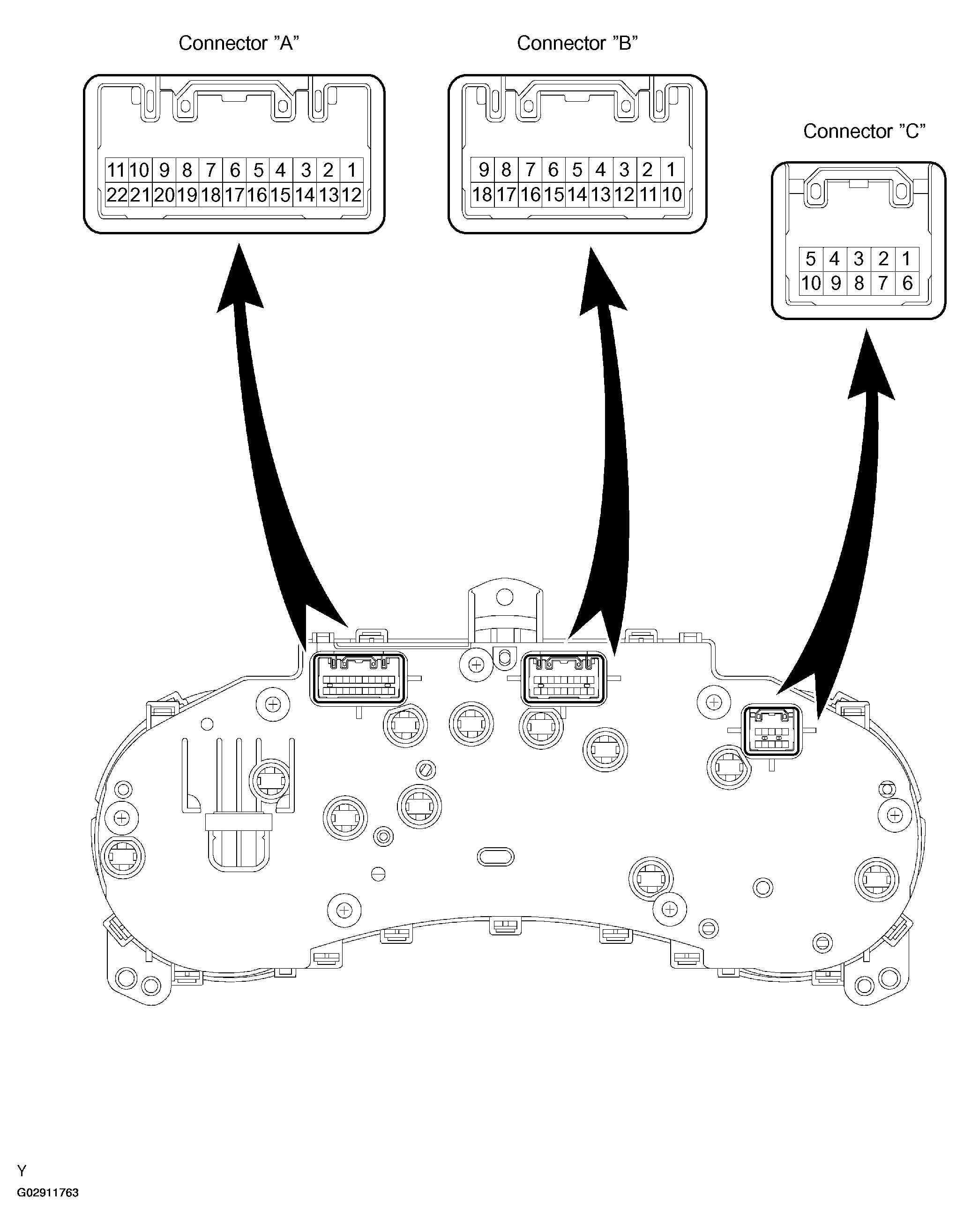

Fig 3: Identifying Coimbination Meter Connectors & Terminals
G02911763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
