Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Electrical >> Gauges >> Combination Meter >> Circuit

Combination Meter: Circuit

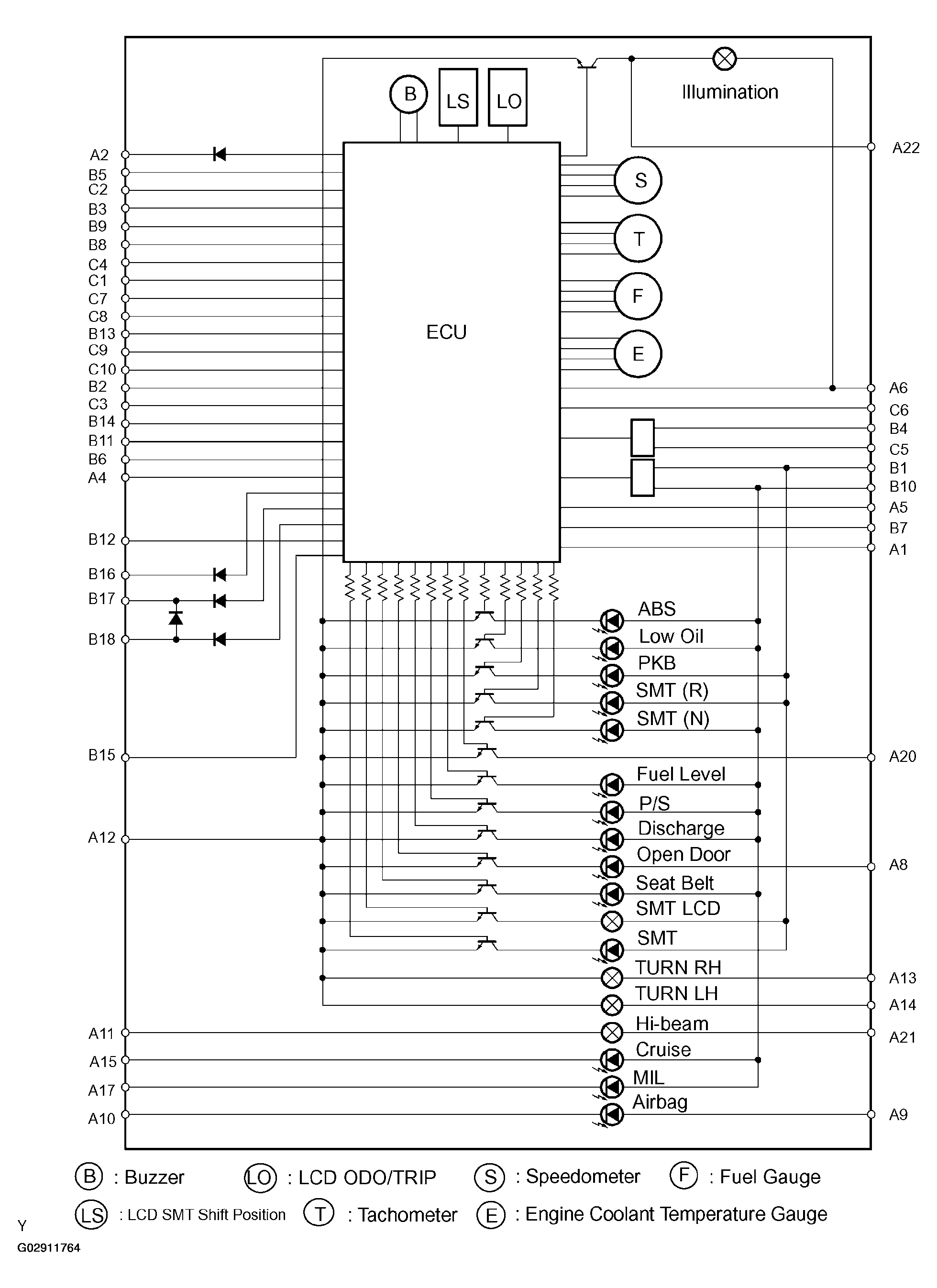

Fig 1: Combination Meter Circuit Diagram
G02911764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

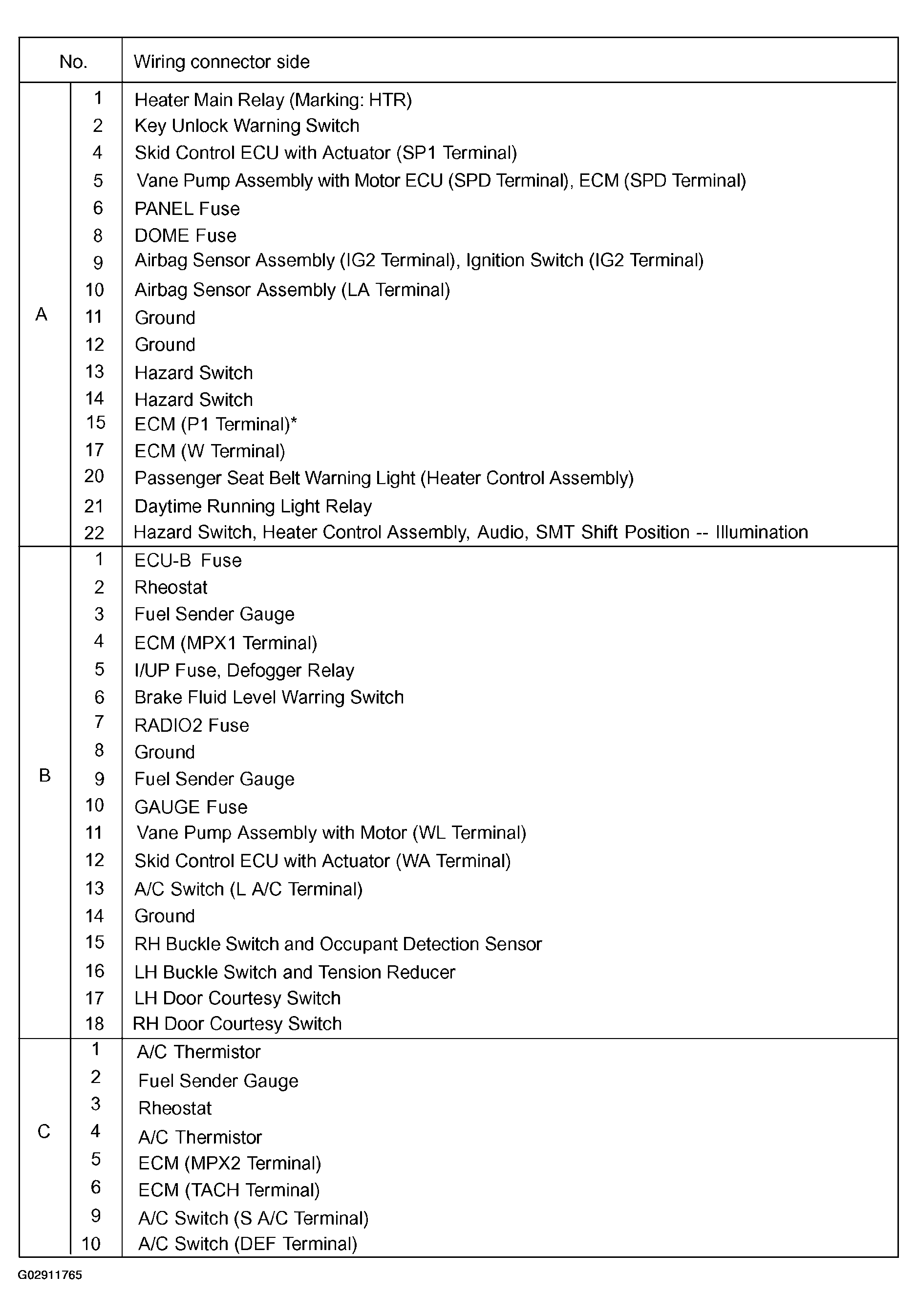

Fig 2: Identifying Combination Meter Circuits
G02911765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
