Ignition Switch & Key Unlock Warning System: Location

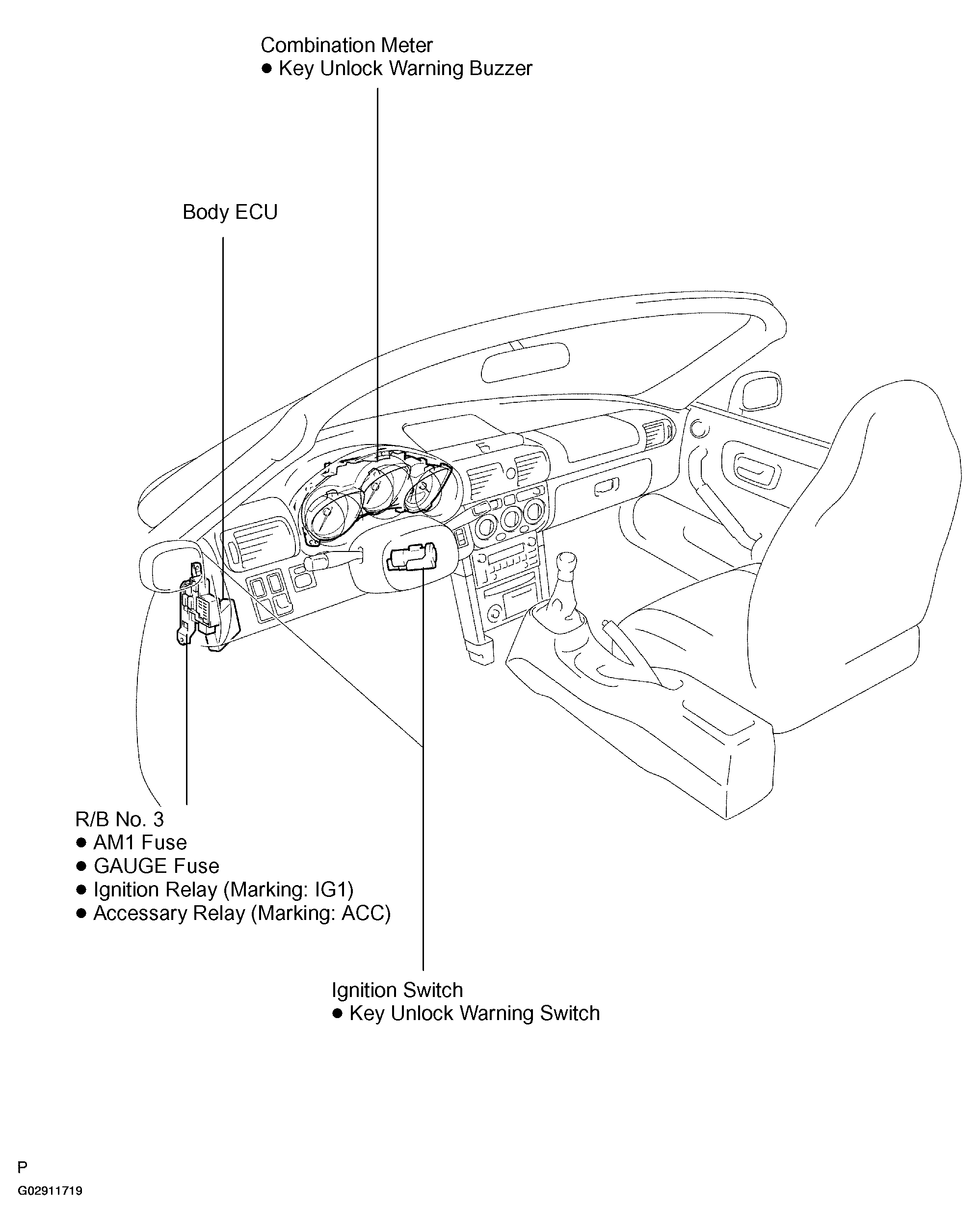

Fig 1: Locating Ignition Switch & Key Unlock Warning Switch System

G02911719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
