Tilt Steering Column: Components

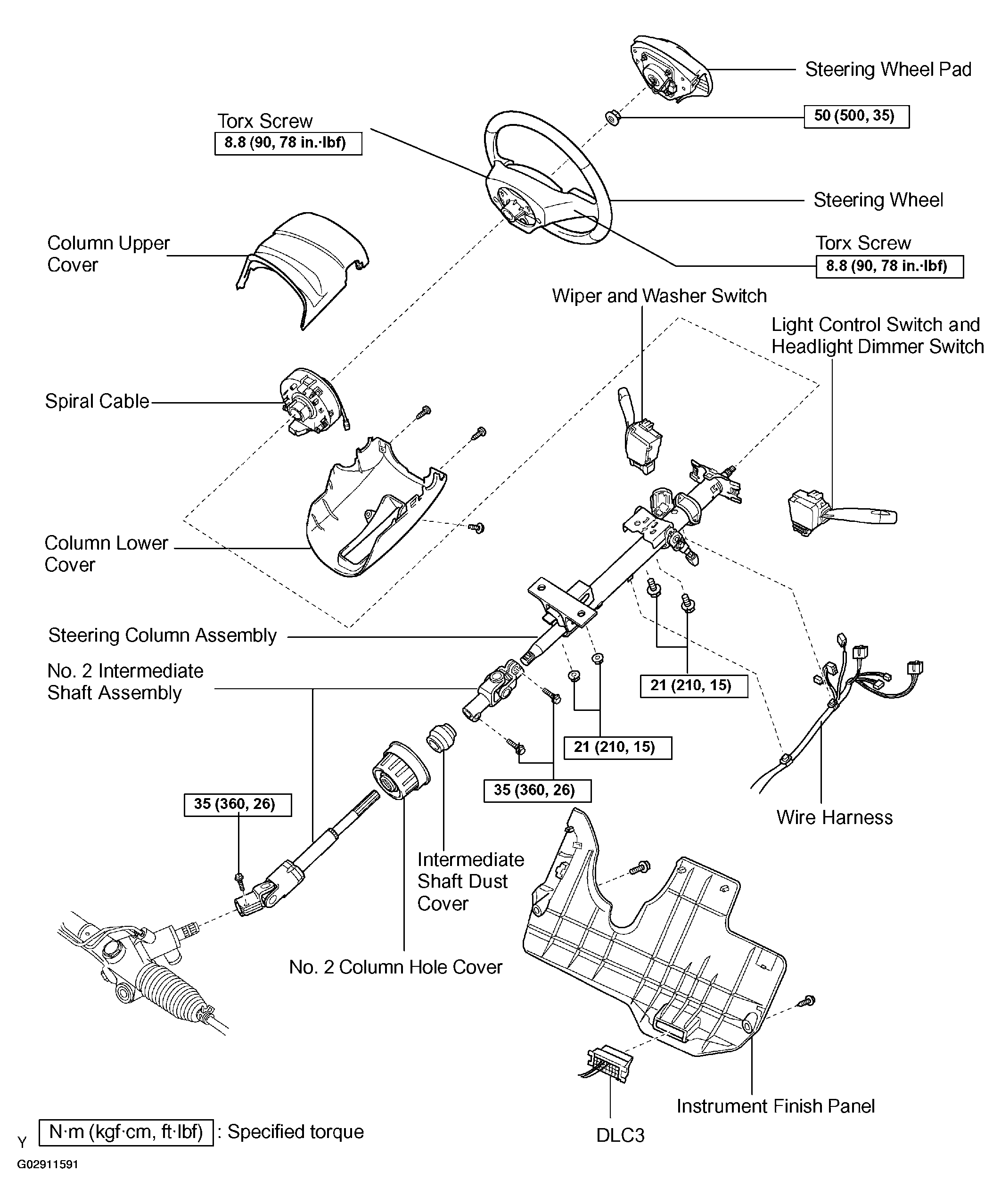

Fig 1: Identifying Components For Tilt Steering Column Removal
G02911591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

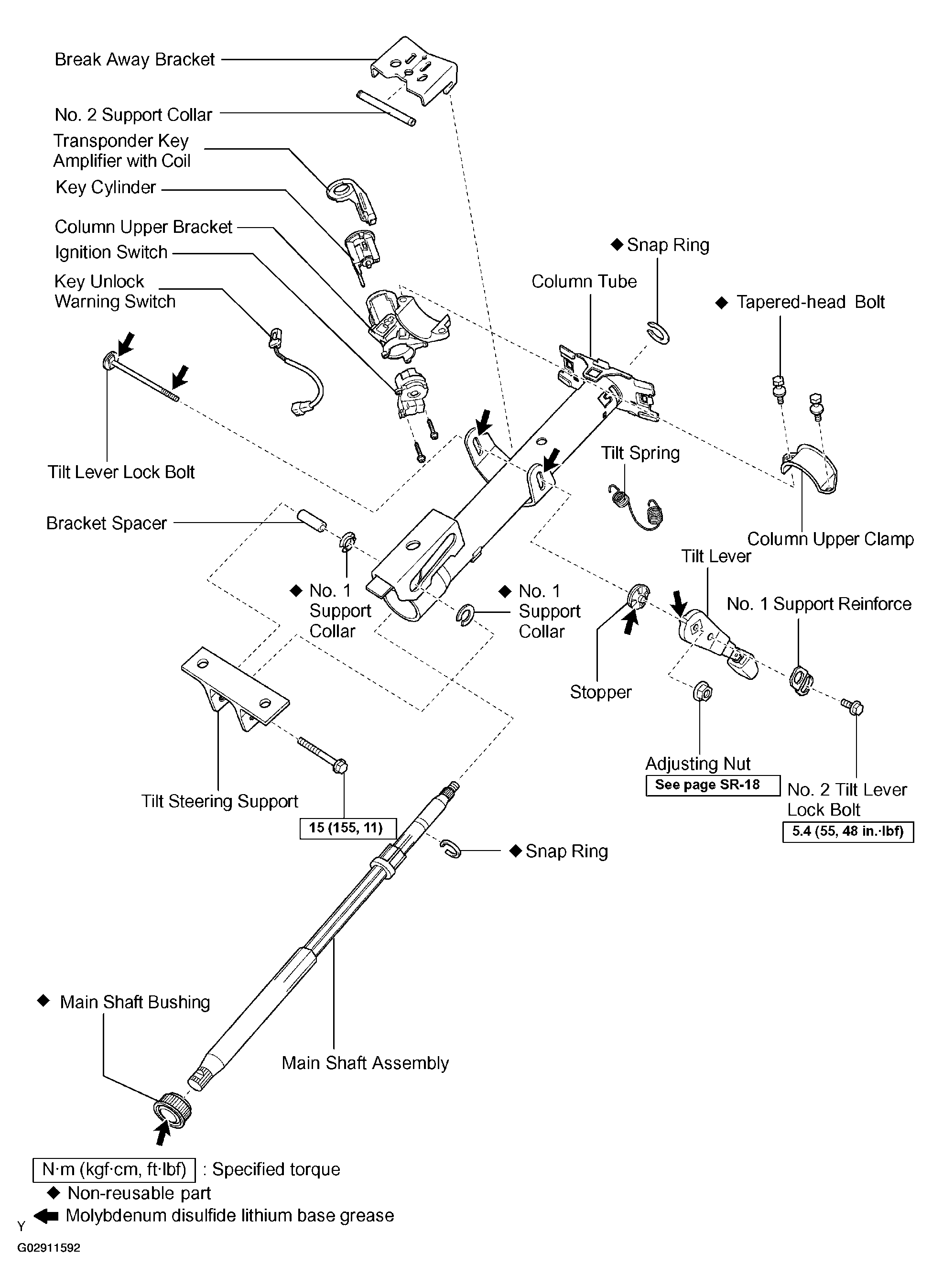

Fig 2: Exploded View Of Tilt Steering Column
G02911592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
