Differential Case: Replacement

Transmission Case Side: Replace Oil Seal And Tapered Roller Bearing Outer Race

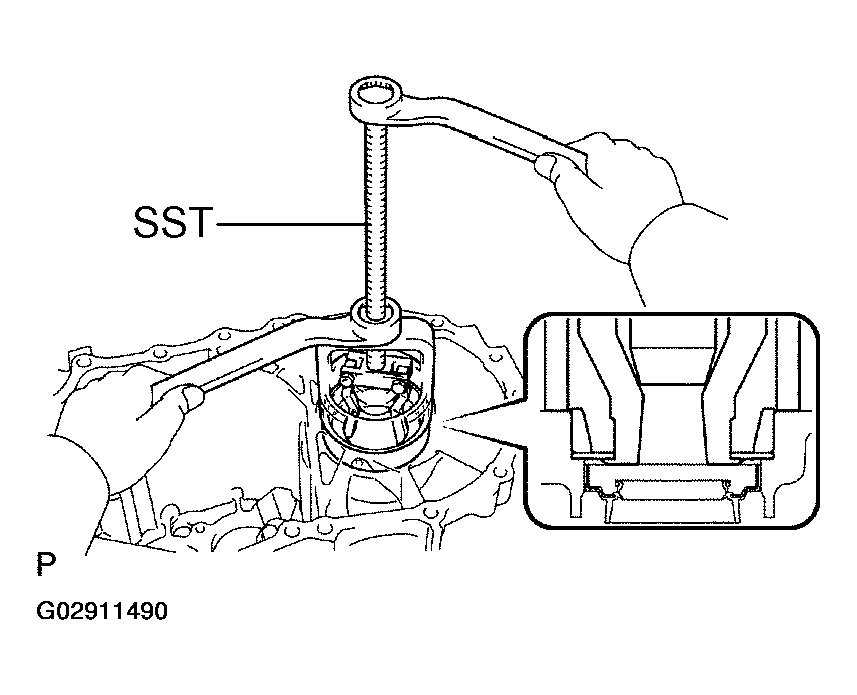

1. Using SST, remove the tapered roller bearing outer race and shim.

  Fig 1: Removing Tapered Roller Bearing Outer Race & Shim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09612-65014

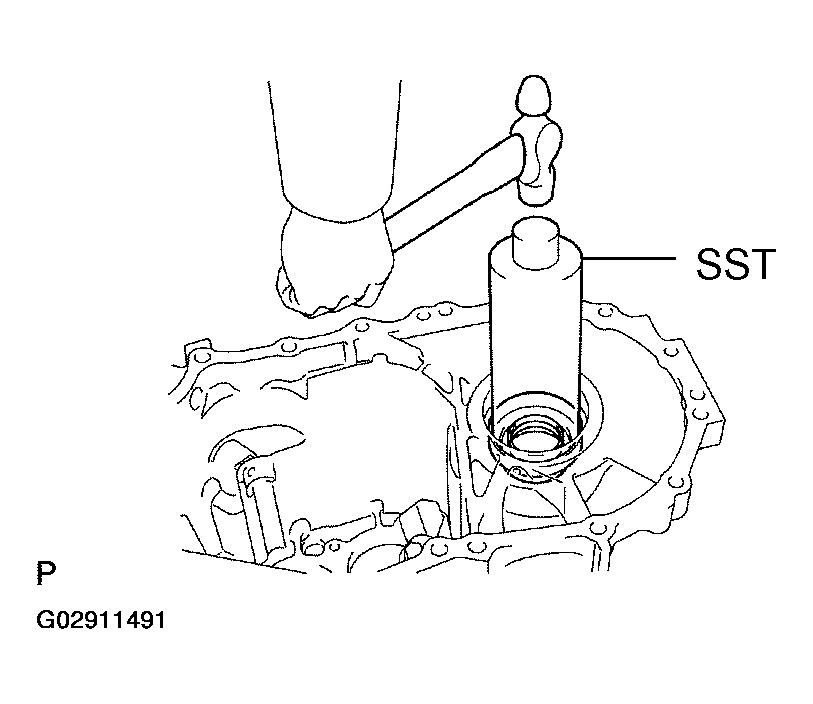

2. Using SST and a hammer, tap out the oil seal.

  Fig 2: Removing Oil Seal Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09226-10010

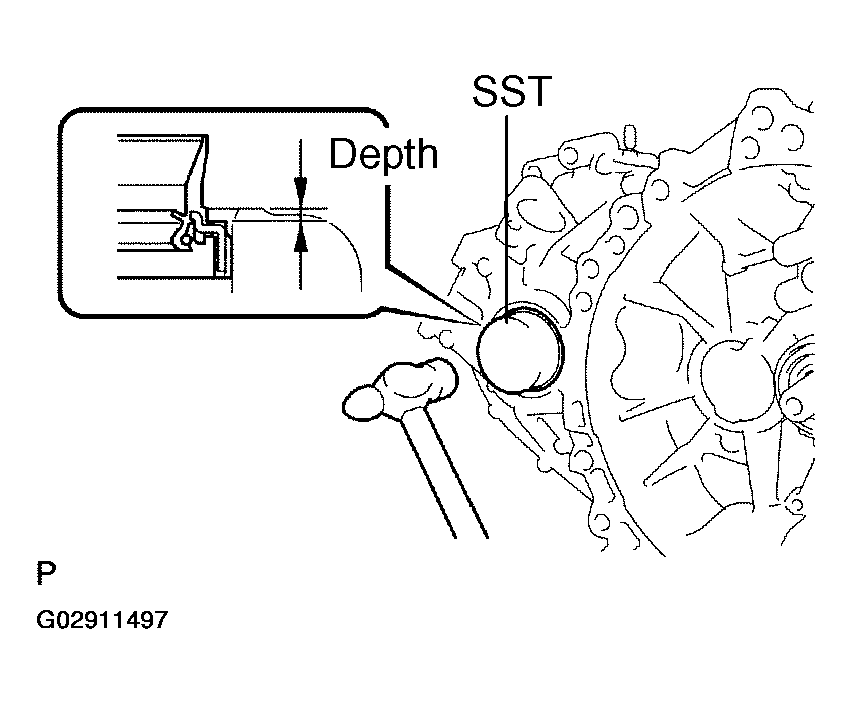

3. Using SST and a hammer, tap in a new oil seal.

  Fig 3: Installing New Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09226-10010

  Depth: 9.9 +/- 0.3 mm (0.390 +/- 0.012 in.)
4. Coat the lip of the oil seal with MP grease.
5. Place the shim into the differential case.
  NOTE: In case that the tapered roller bearing is new, install the shim by selecting among the thin ones. In case that the tapered roller bearing is a used one, its better to install the shim which has the same thickness before disassembling.

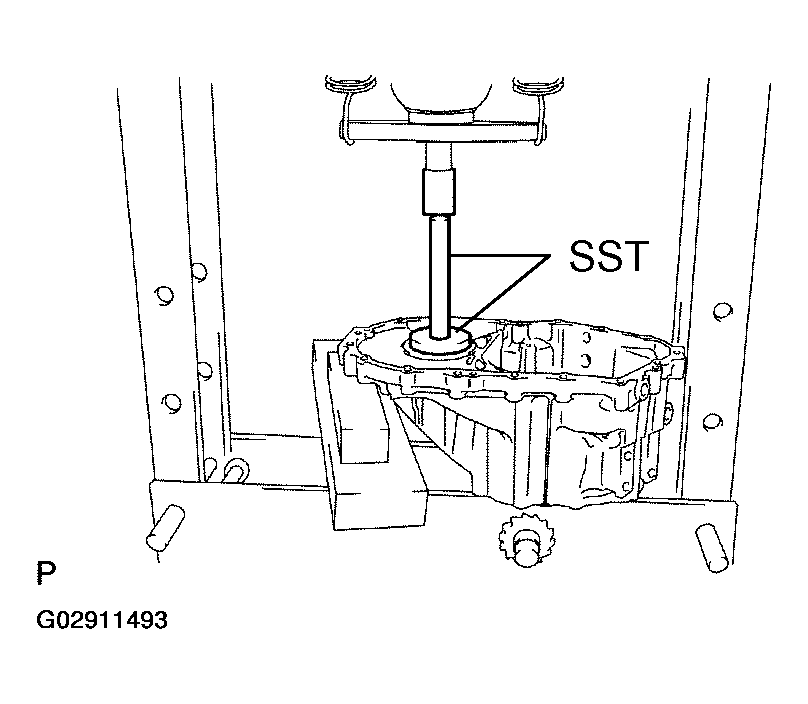

6. Using SST and a press, press in a new tapered roller bearing outer race.

  Fig 4: Pressing Tapered Roller Bearing Outer Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60020 (09951-00710), 09950-70010 (09951-07150)
NOTE: When replacing the tapered roller bearing outer race, replace the tapered roller bearing along with it.
Transaxle Case Side: Replace Oil Seal And Tapered Roller Bearing Outer Race

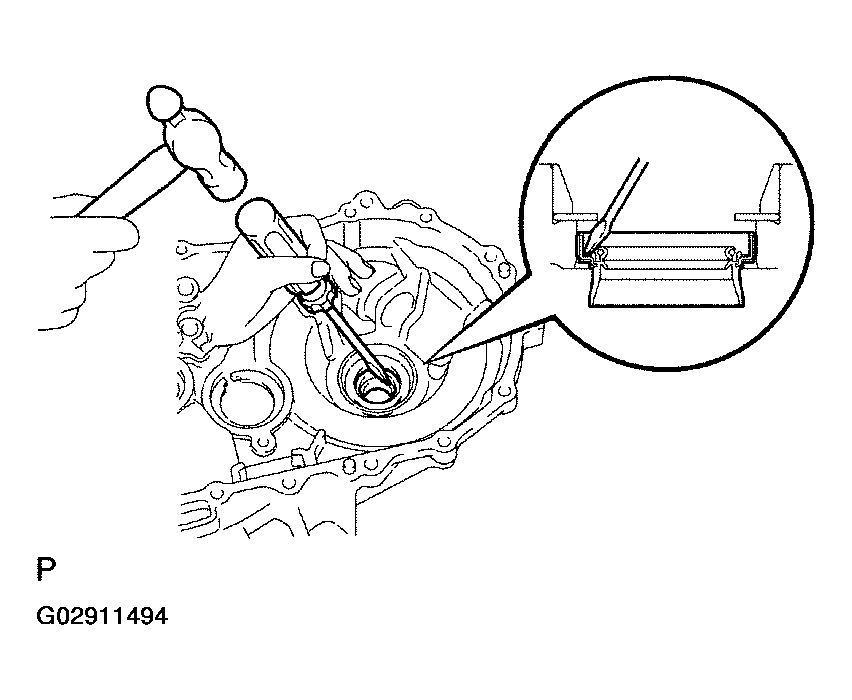

1. Using a screwdriver and a hammer, tap out the oil seal.

  Fig 5: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

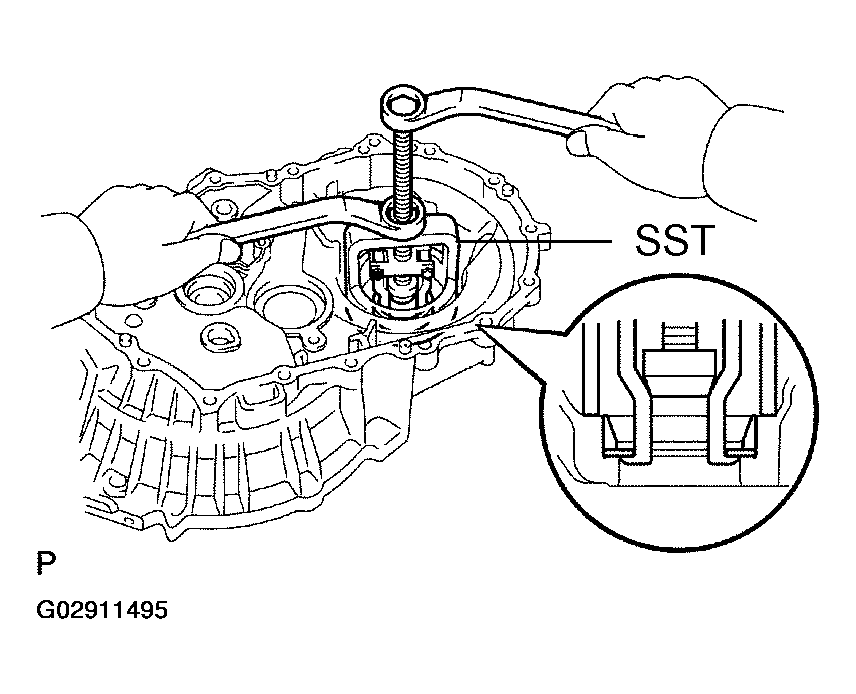

2. Using SST, remove the tapered roller bearing outer race and spacer.

  Fig 6: Removing Tapered Roller Bearing Outer Race & Spacer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09612-65014
3. Place the spacer into the differential case.

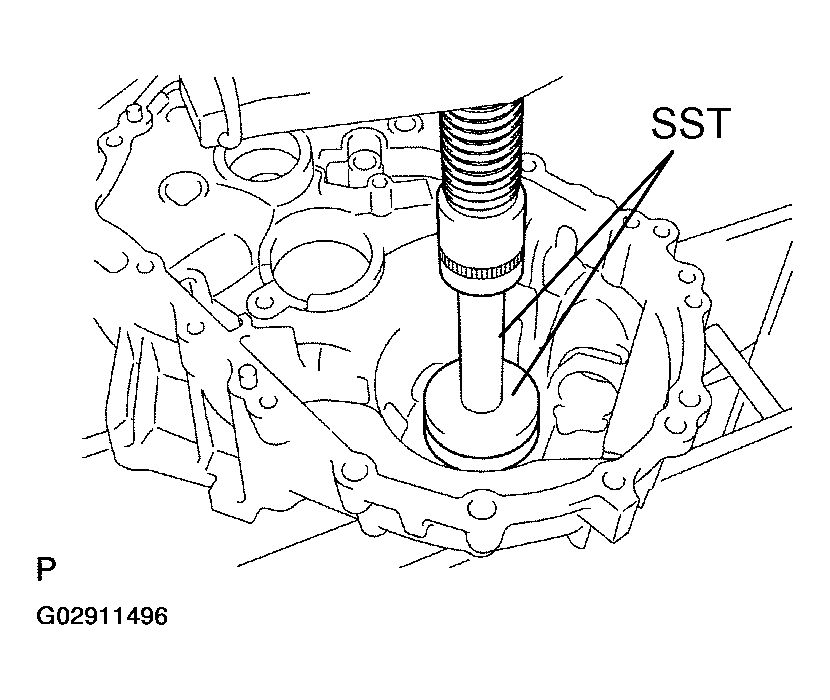

4. Using SST and a press, press in a new tapered roller bearing outer race.

  Fig 7: Pressing Tapered Roller Bearing Outer Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60020 (09951-00680), 09950-70010 (09951-07150)

  NOTE: When replacing the tapered roller bearing outer race, replace the tapered roller bearing along with it.

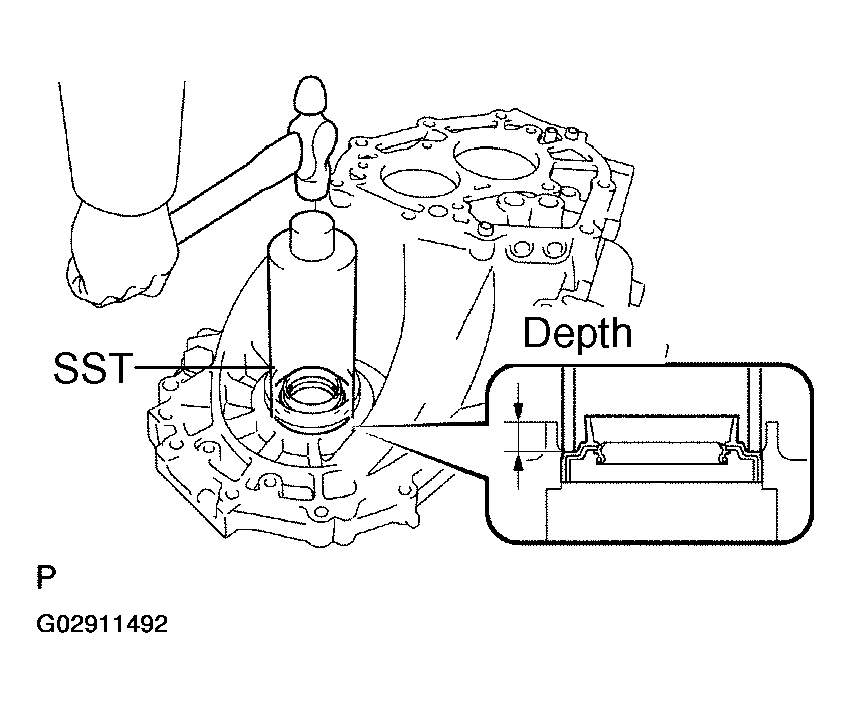

5. Using SST and a hammer, tap in a new oil seal.

  Fig 8: Installing Oil Seal Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09710-28021 (09710-08041)

  Depth: 1.9 +/- 0.3 mm (0.075 +/- 0.012 in.)
6. Coat the lip of the oil seal with MP grease.
