Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Trans Sequential - Diagnostics
>>
Transmission Shift Switch Circuit
>>
Wiring Diagram
Transmission Shift Switch Circuit: Wiring Diagram

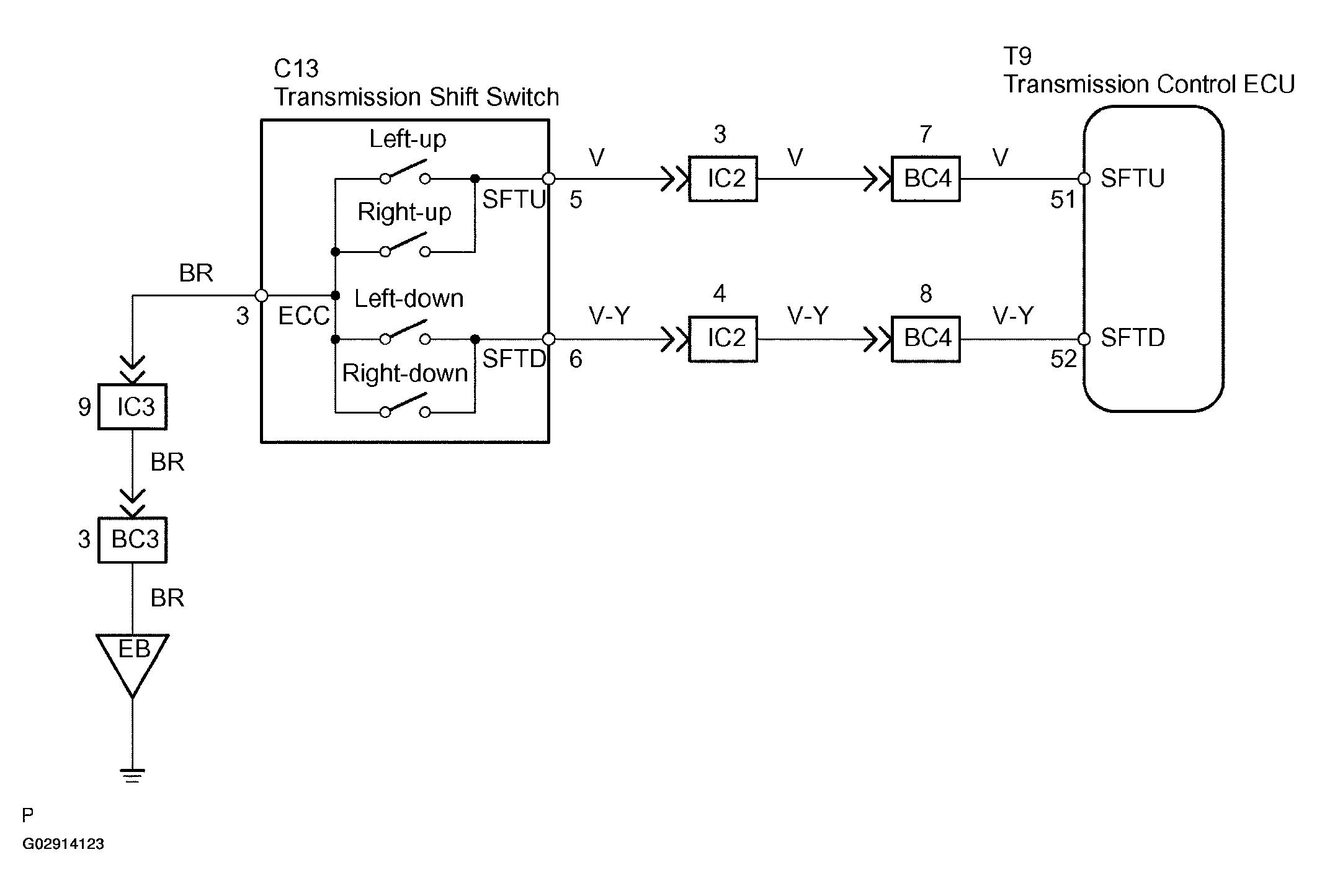

Fig 1: Transmission Shift Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
