Parts Location

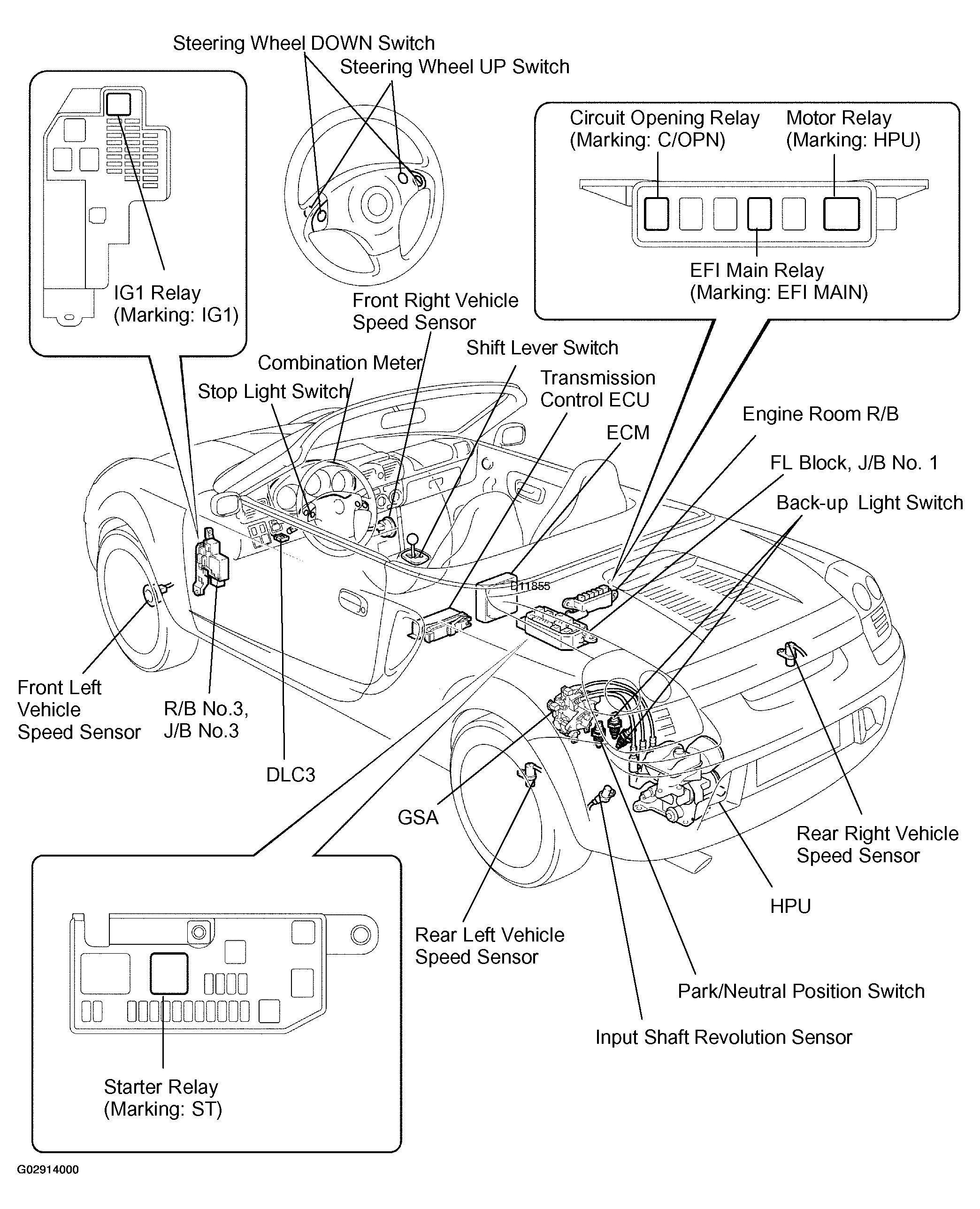

Fig 1: Locating Sequential Manual Transmission Components (1 of 2)
G02914000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

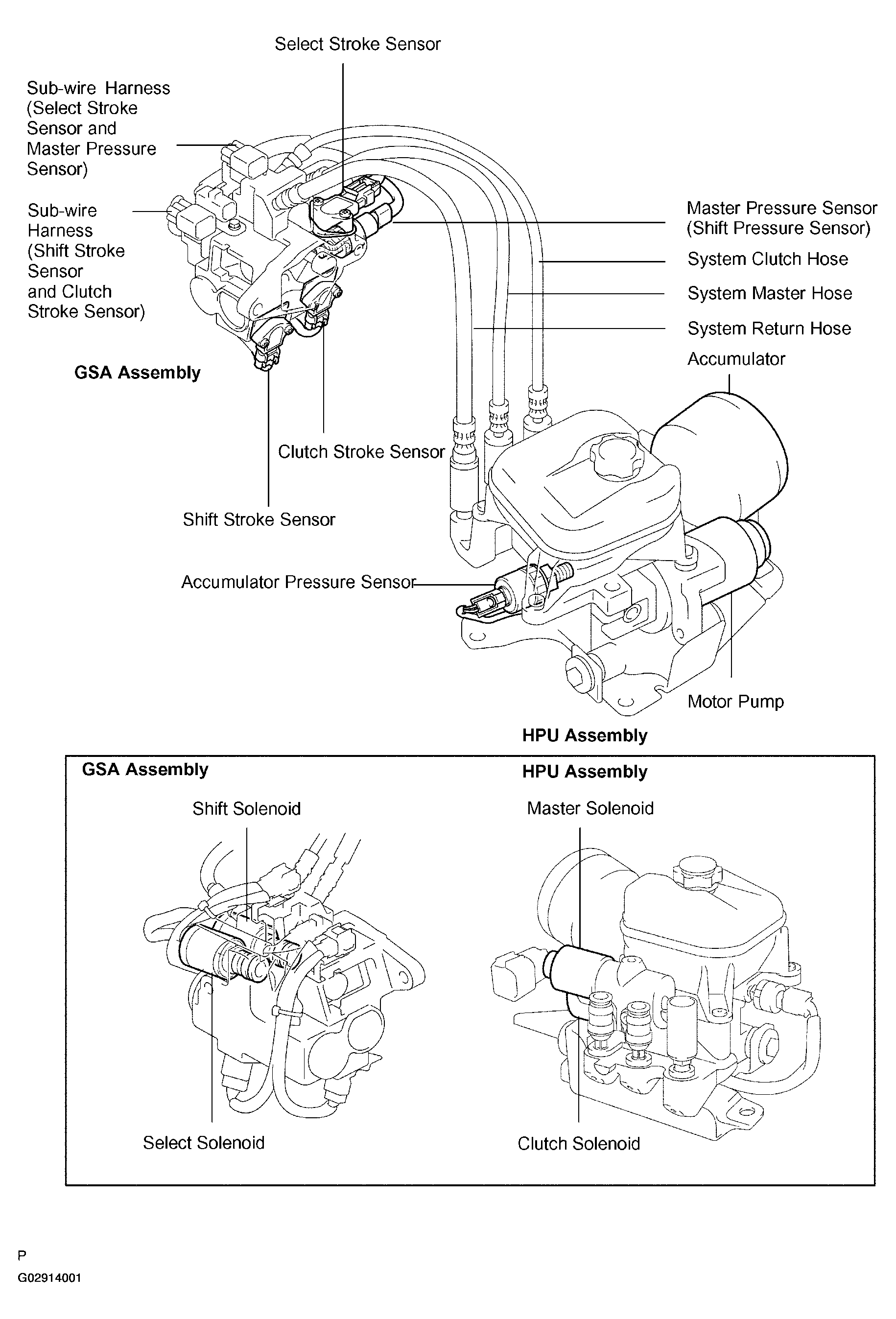

Fig 2: Locating Sequential Manual Transmission Components (2 of 2)
G02914001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
