DTC P0919: Gear Shift Position Control Error: Wiring Diagram

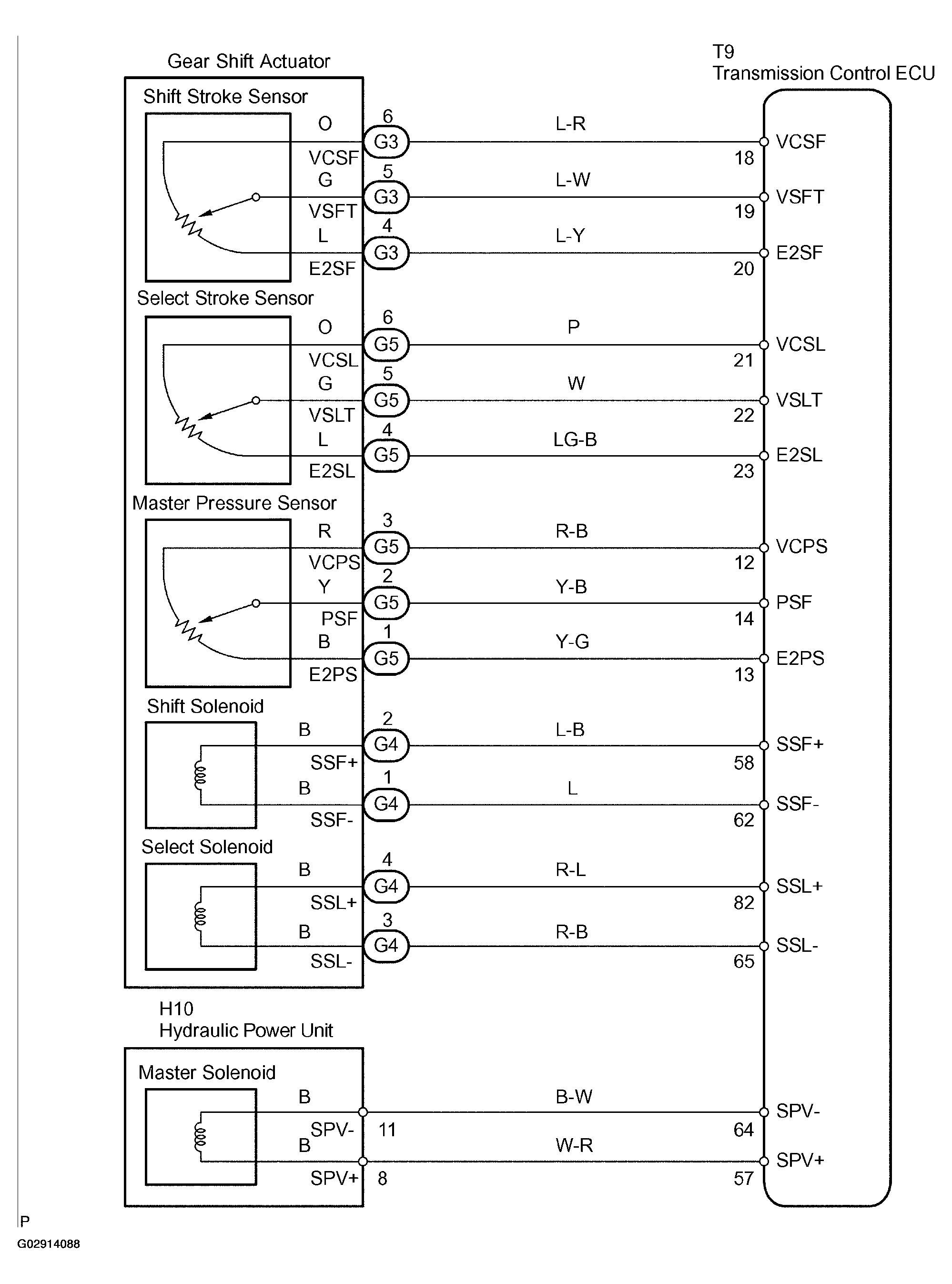

Fig 1: Wiring Diagram -Gear Shift Position Control
G02914088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
