Circuit Description

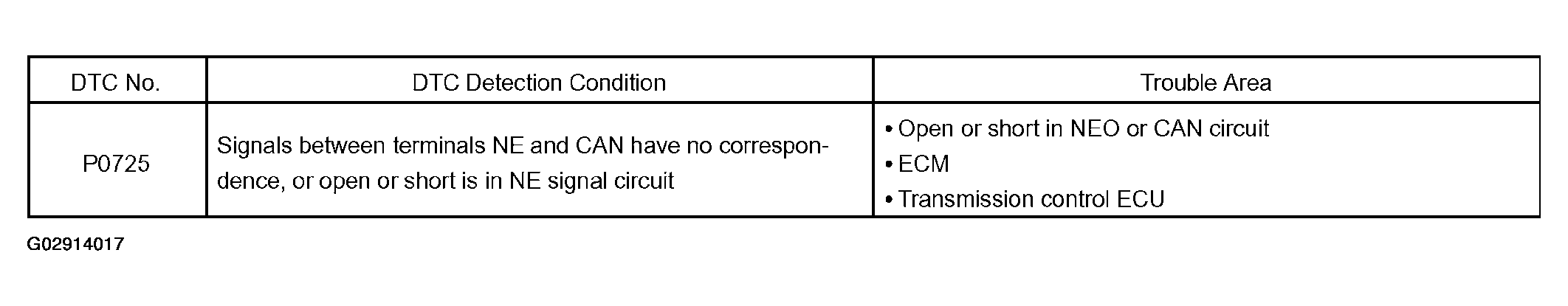

The transmission control ECU uses the NE signal from the crankshaft position to control the engine speed and shift the gear. The transmission control ECU receives engine speed signals from the NE circuit. If an open or short is detected in this circuit, the transmission control ECU judges that the circuit is malfunctioning and a DTC is set.
