Monitor Strategy

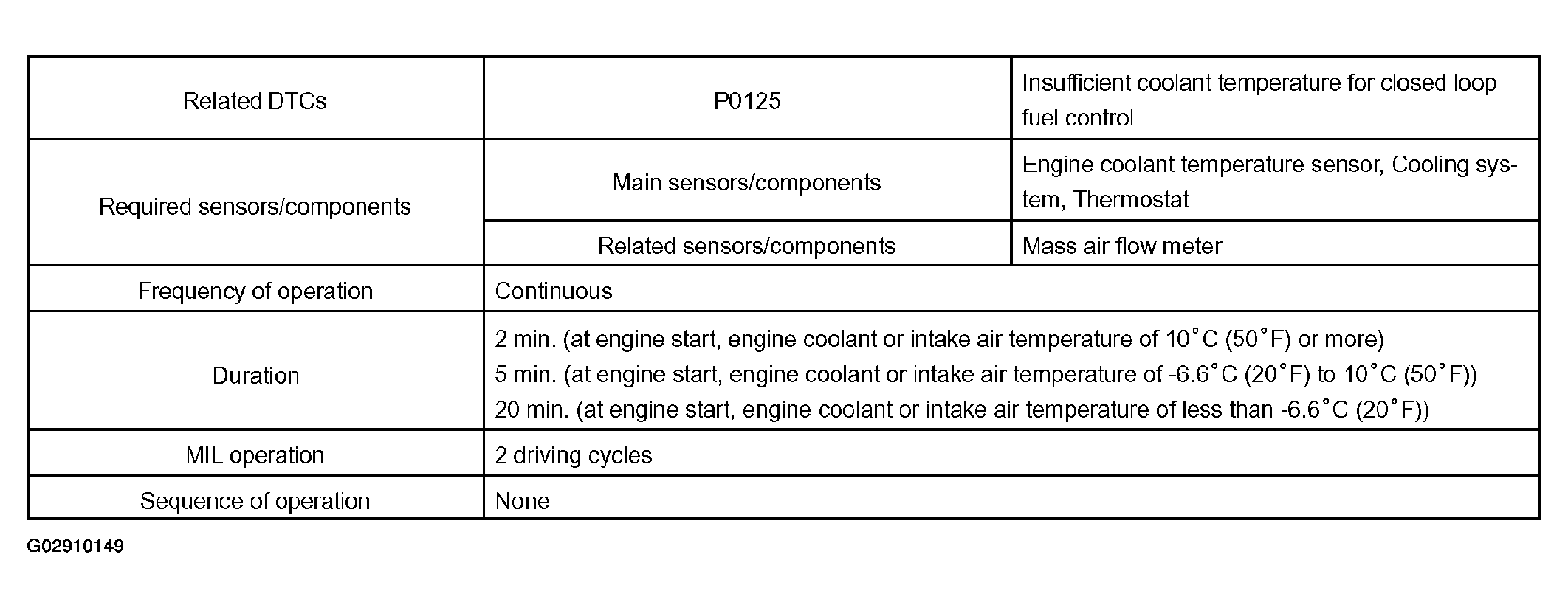

Fig 1: MONITOR STRATEGY Diagnosis Table
G02910149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
