Typical Enabling Conditions

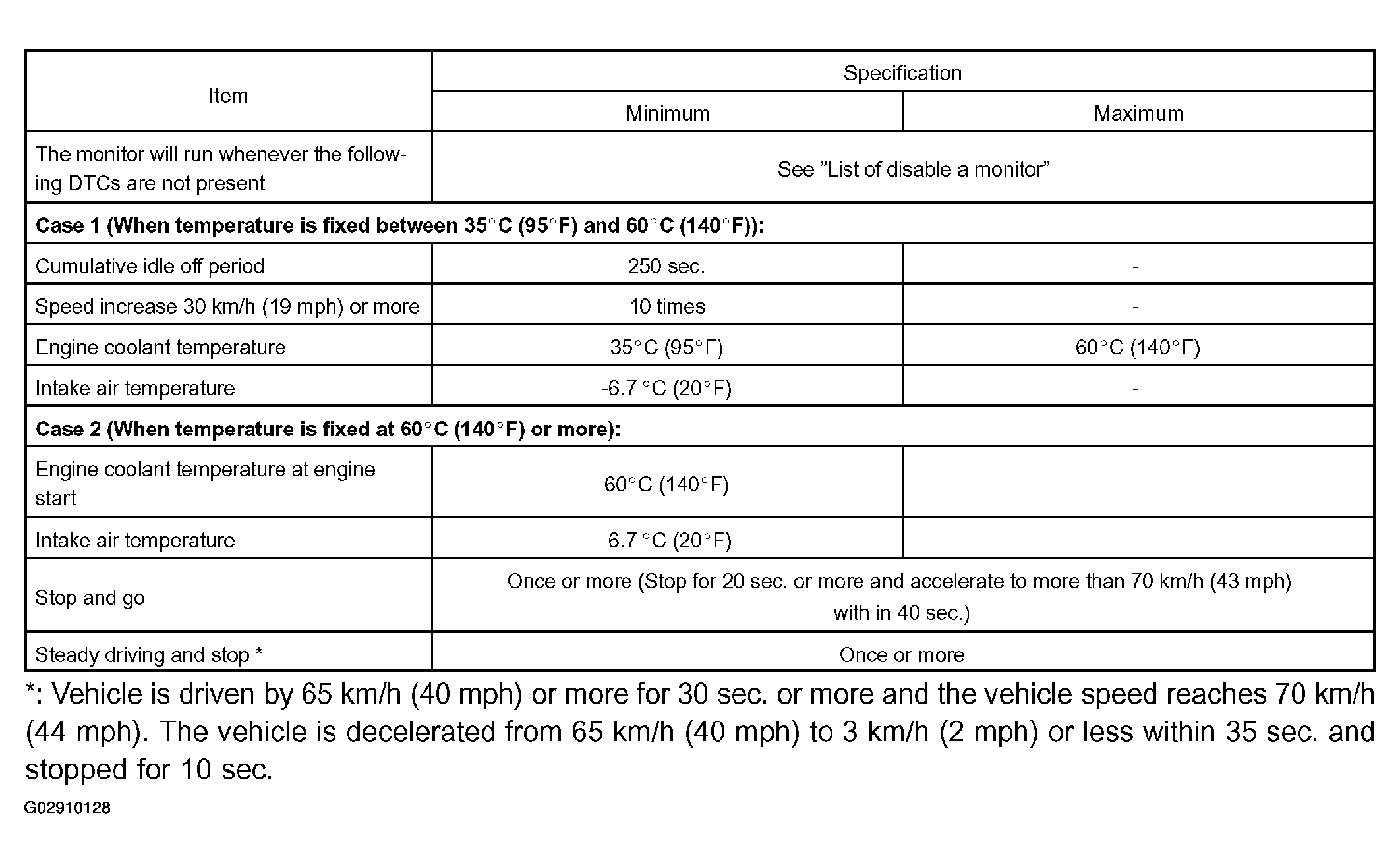

Fig 1: Typical Enabling Conditions Table
G02910128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
