Monitor Strategy

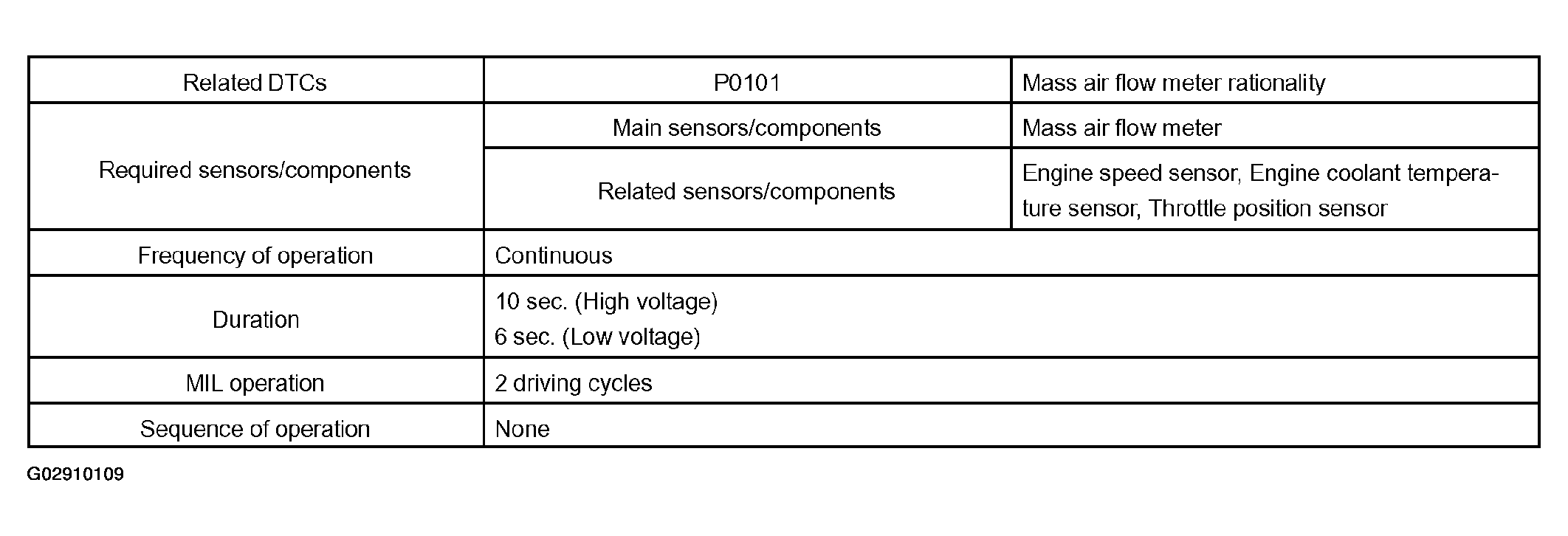

Fig 1: Monitor Strategy Diagnosis Table
G02910109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
