Timing Belt: Components

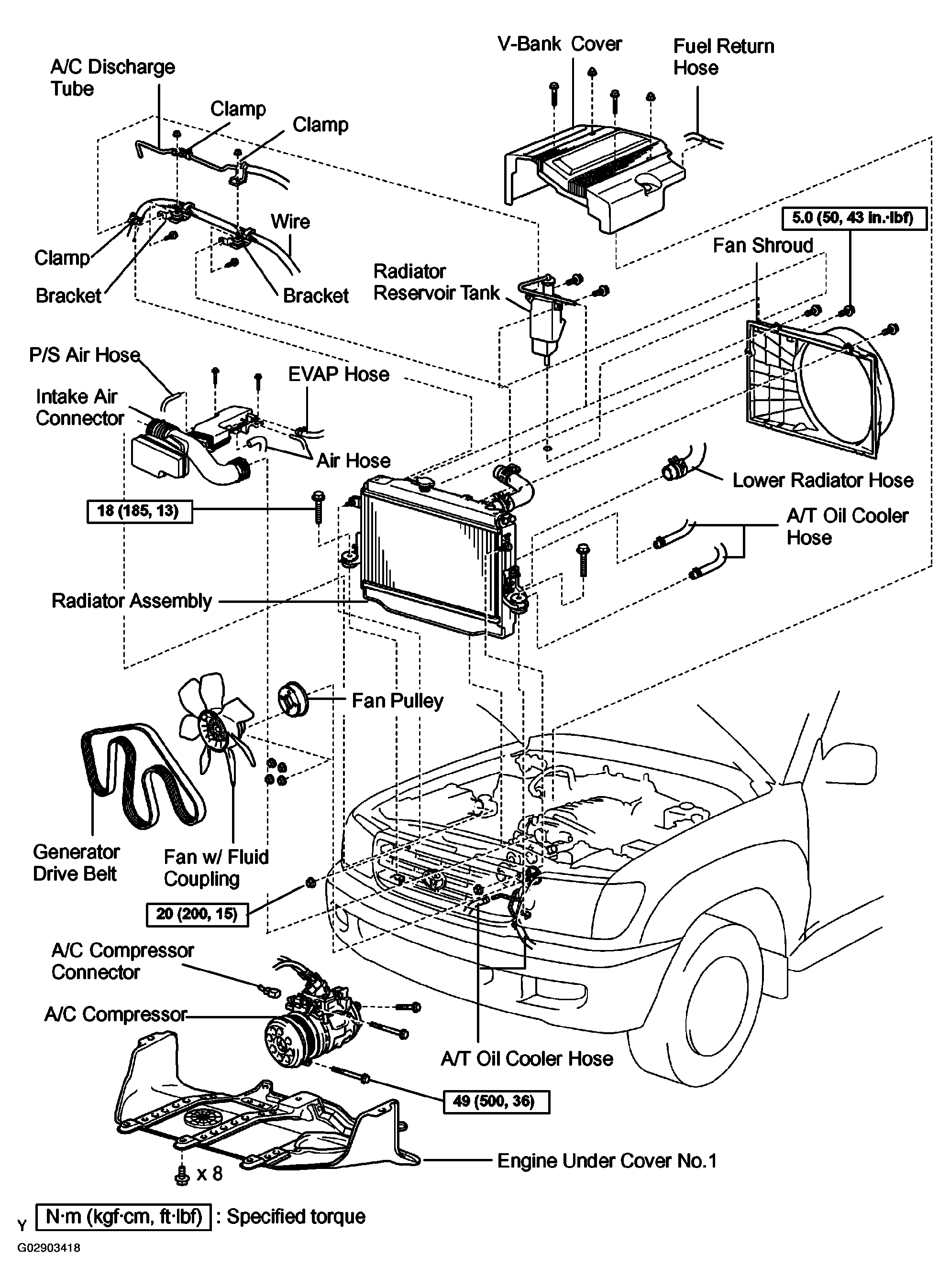

Fig 1: Exploded View Of Timing Belt Components (1 Of 4)
G02903418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

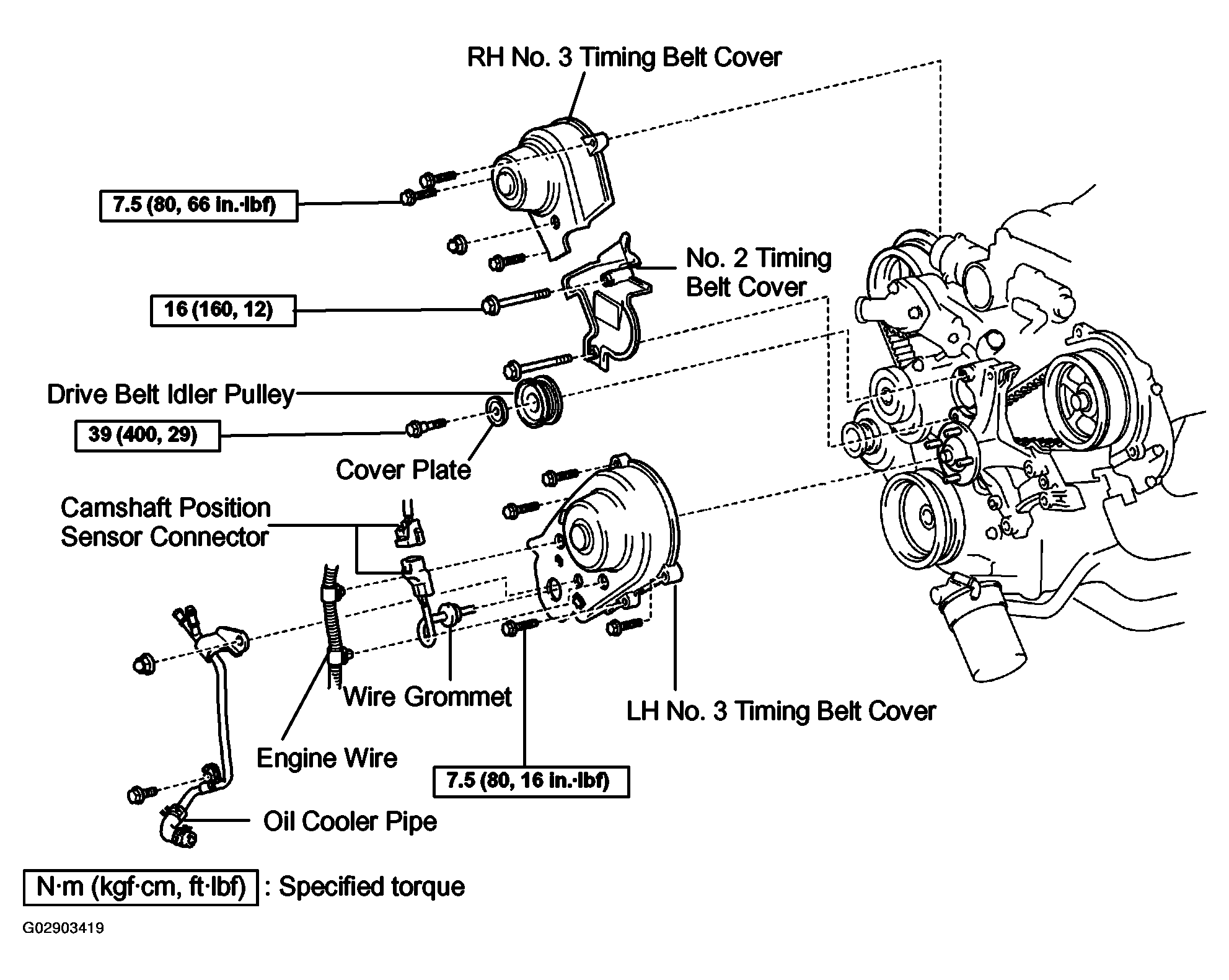

Fig 2: Exploded View Of Timing Belt Components (2 Of 4)
G02903419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

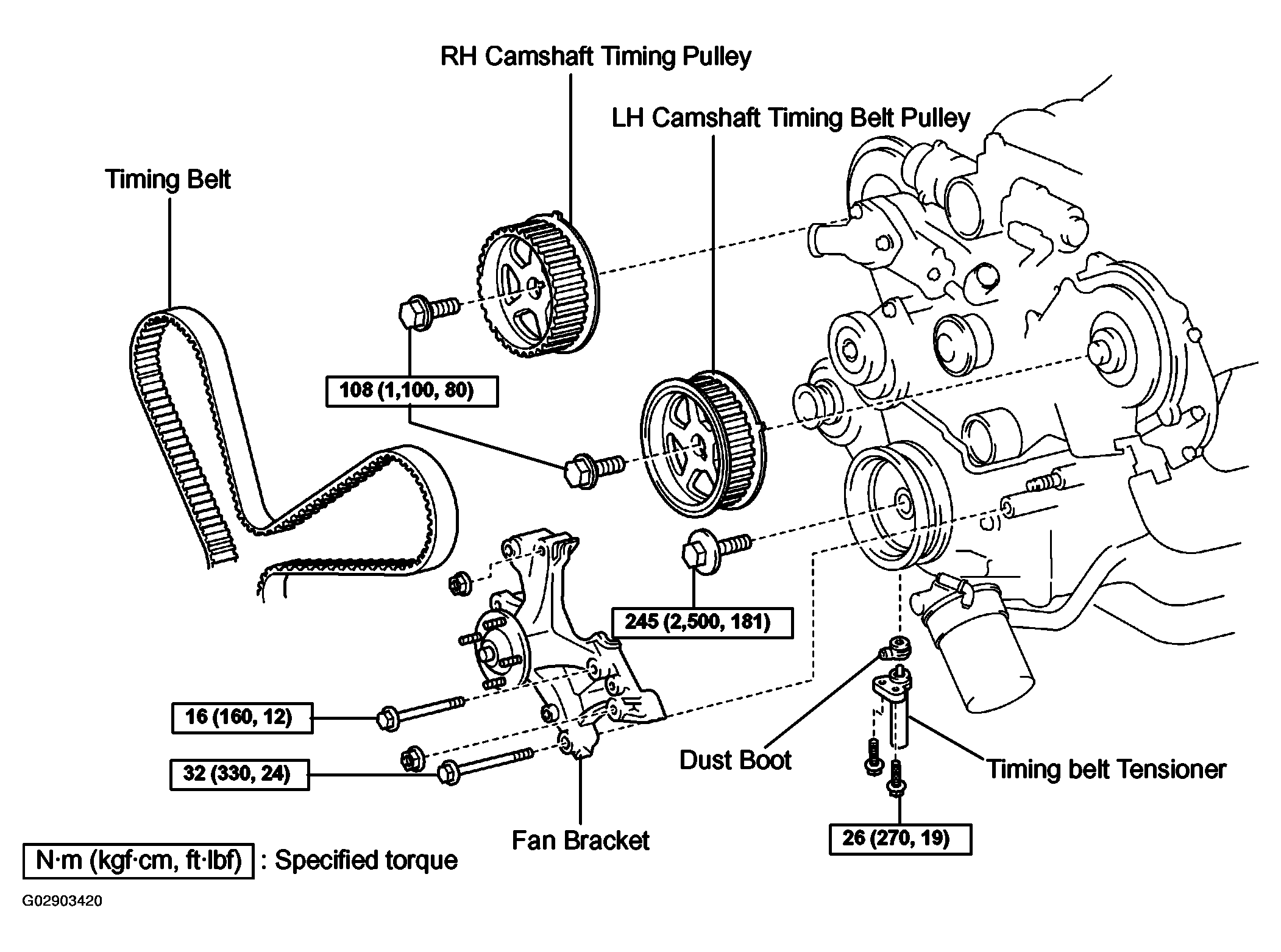

Fig 3: Exploded View Of Timing Belt Components (3 Of 4)
G02903420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

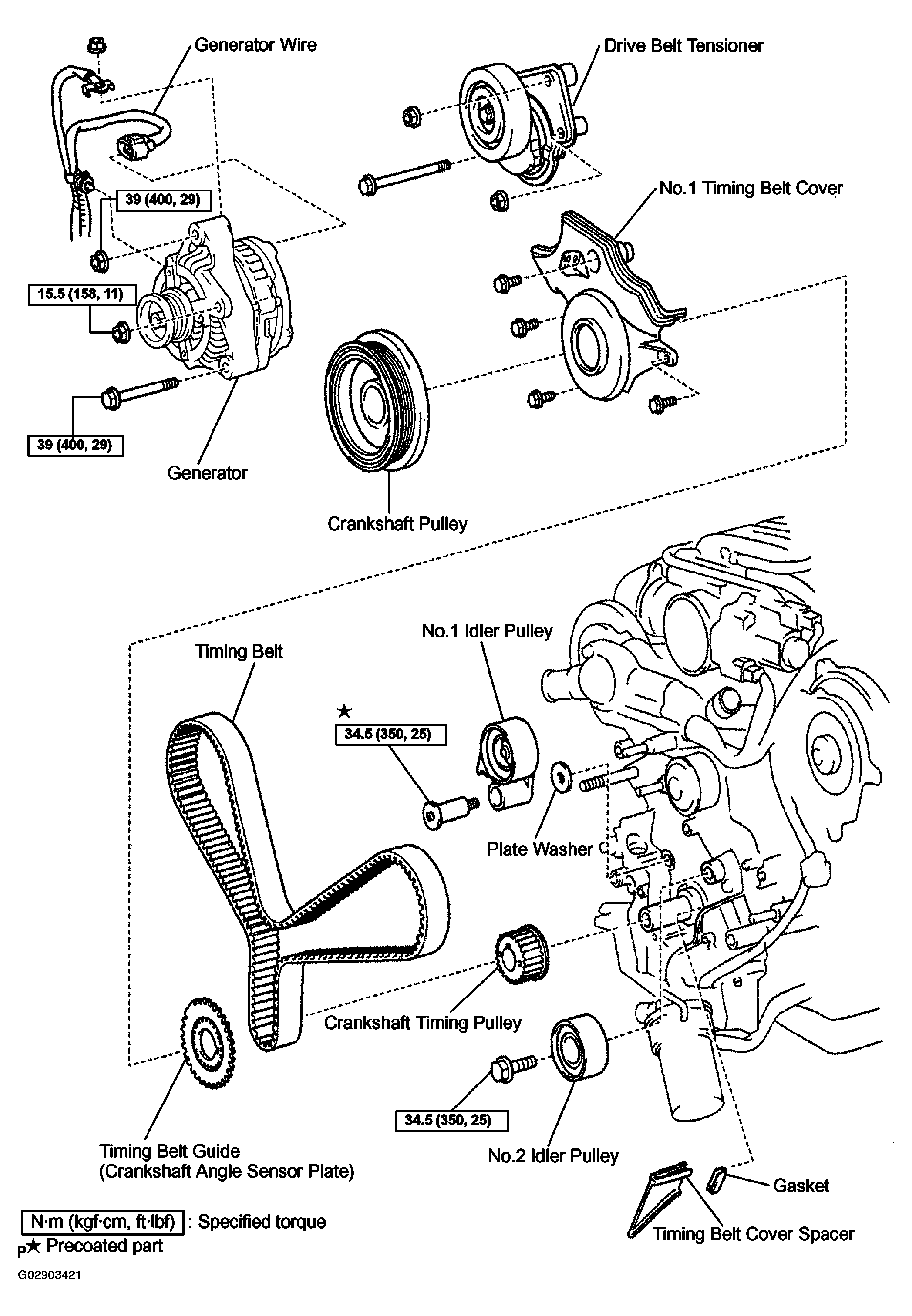

Fig 4: Exploded View Of Timing Belt Components (4 Of 4)
G02903421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
