Parts Layout And Schematic Drawing: Location

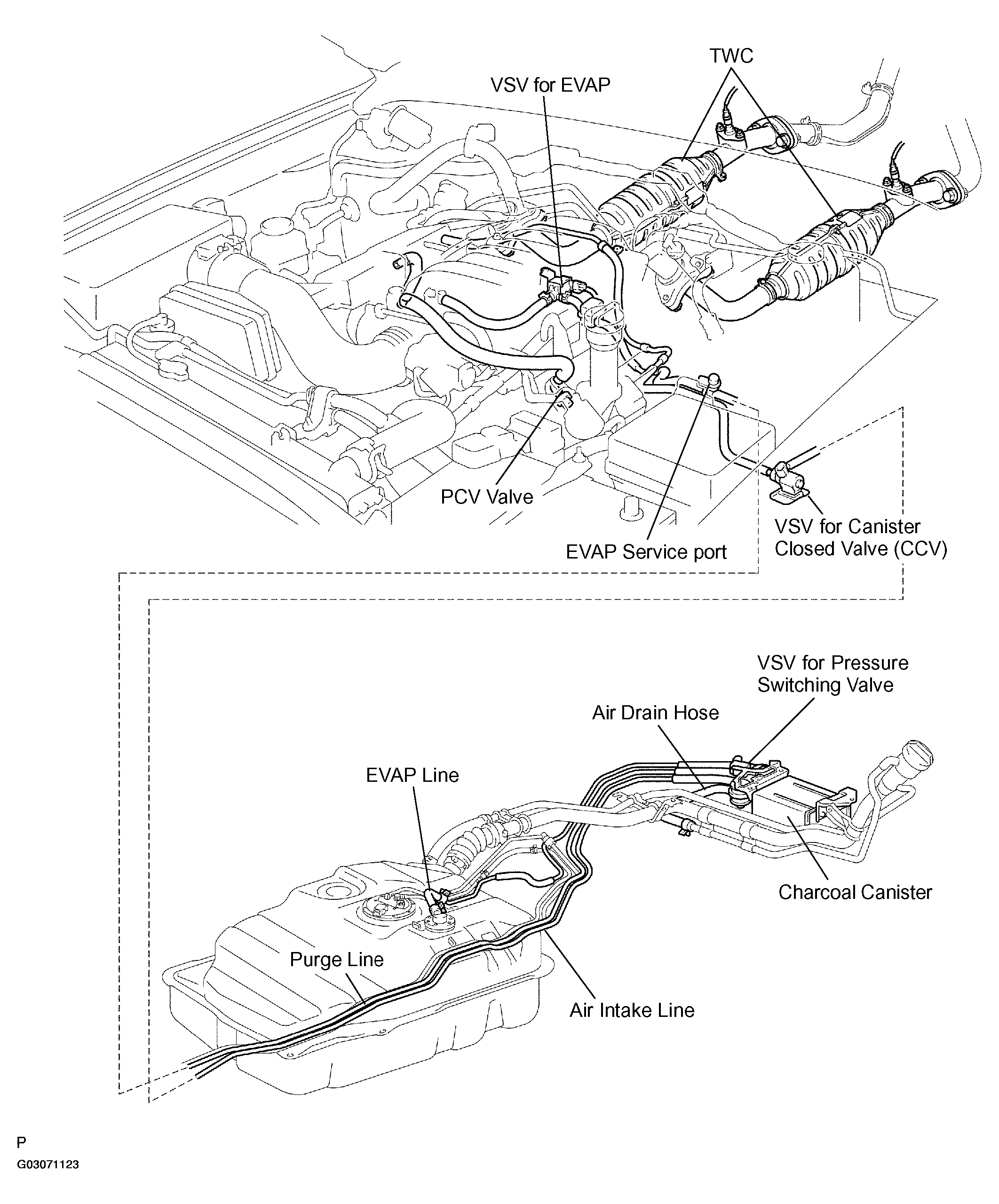

Fig 1: Identifying Emission Control System Parts Location

G03071123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
