Combination Meter: Location

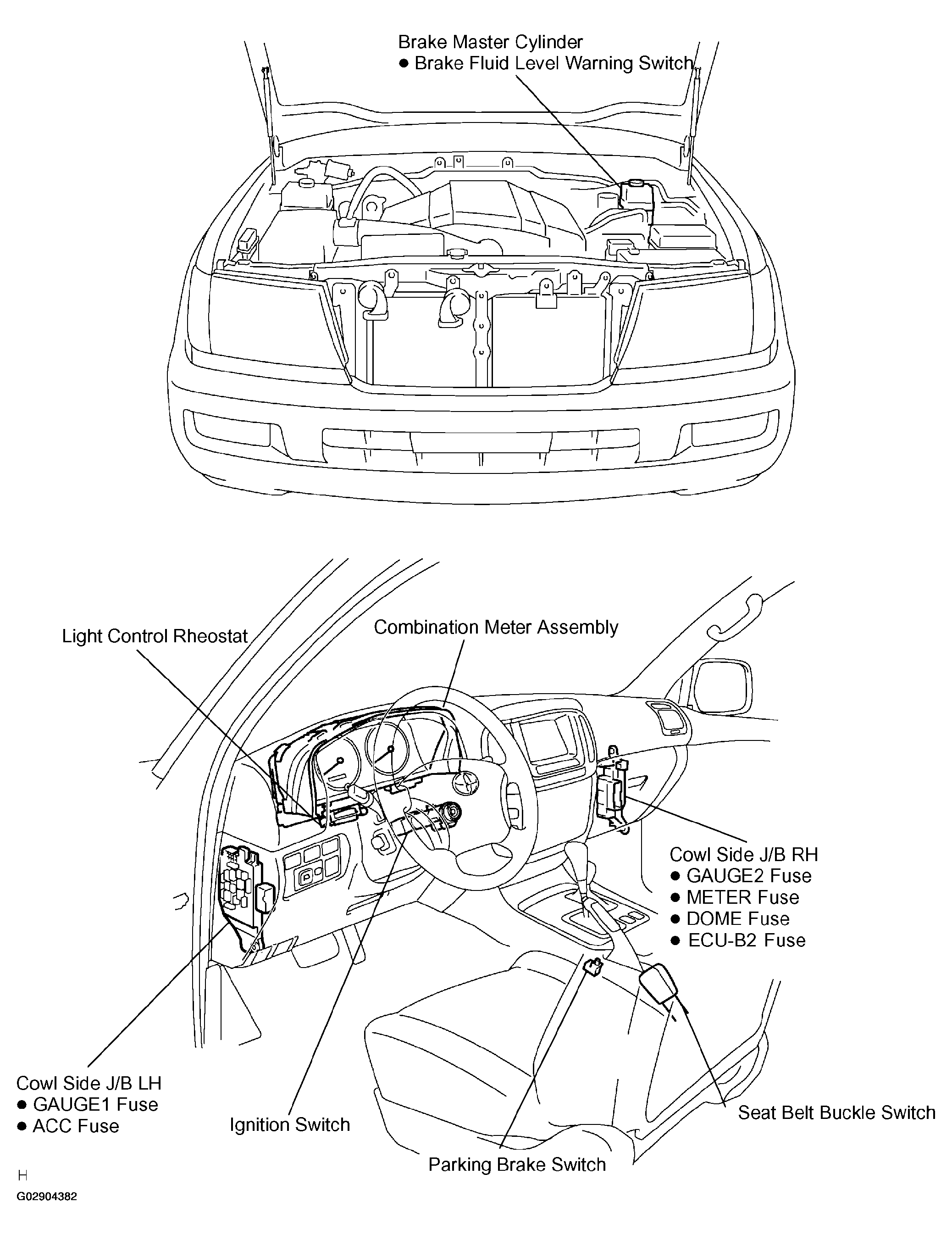

Fig 1: Identifying Combination Meter Location
G02904382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

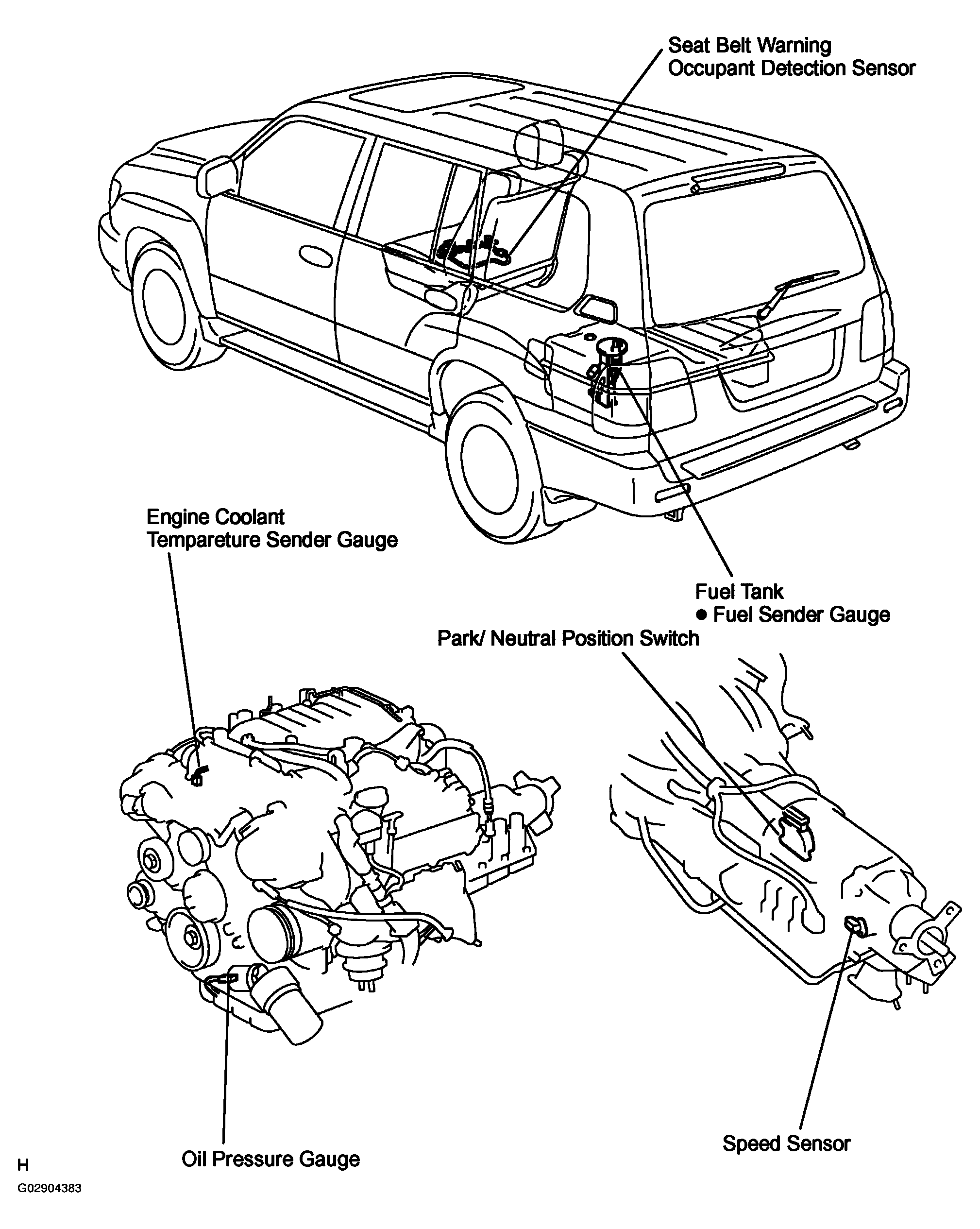

Fig 2: Locating Engine Coolant Temperature Sensor, Fuel Sender Gauge & Engine Coolant Temperature Park/Neutral Position Switch
G02904383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
