Home >> Toyota >> 2004 >> Land Cruiser >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat Control System >> Location

Power Seat Control System: Location

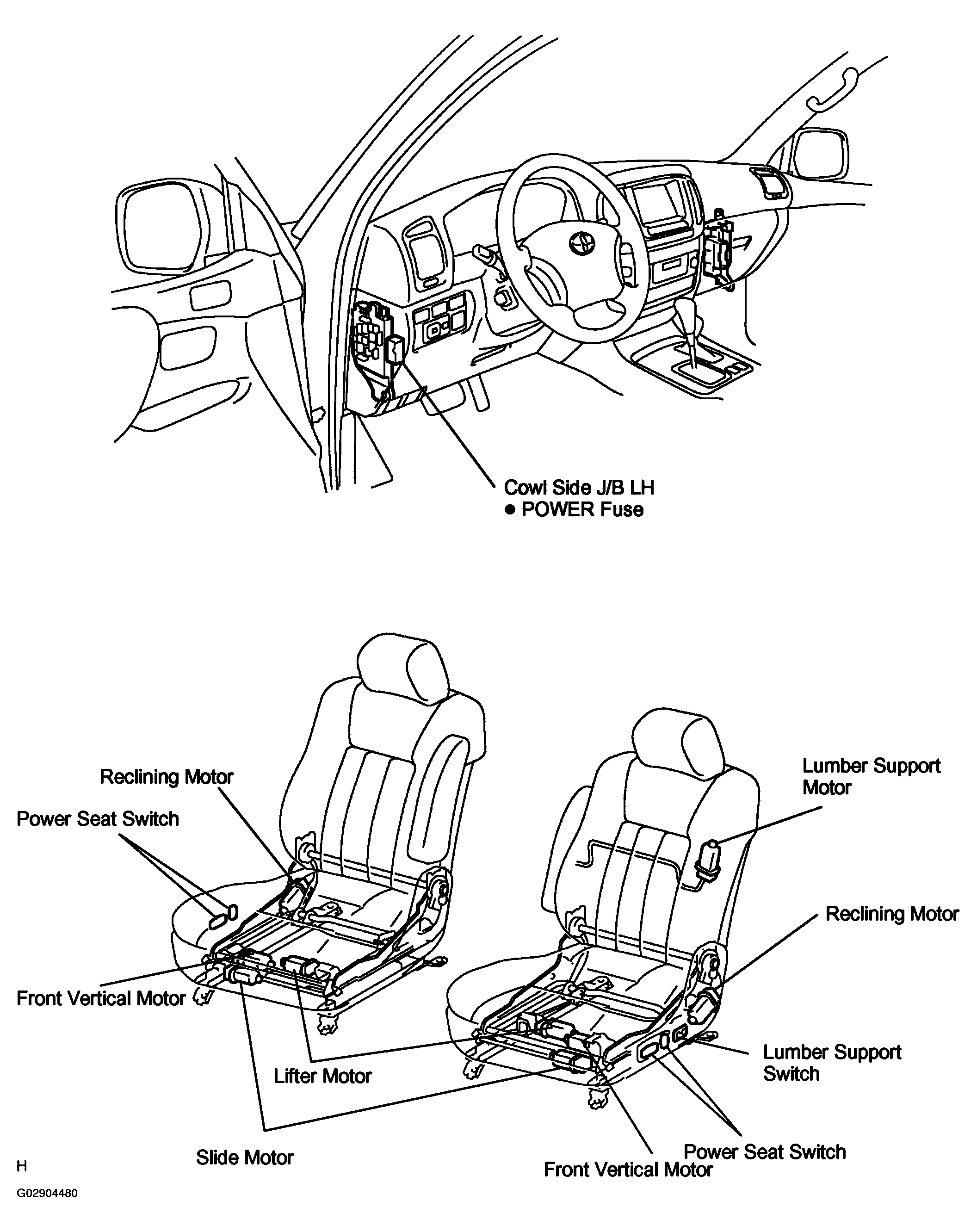

Fig 1: Locating Power Seat Control System Components

G02904480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
