Wireless Door Lock Control Circuit: Wiring Diagram

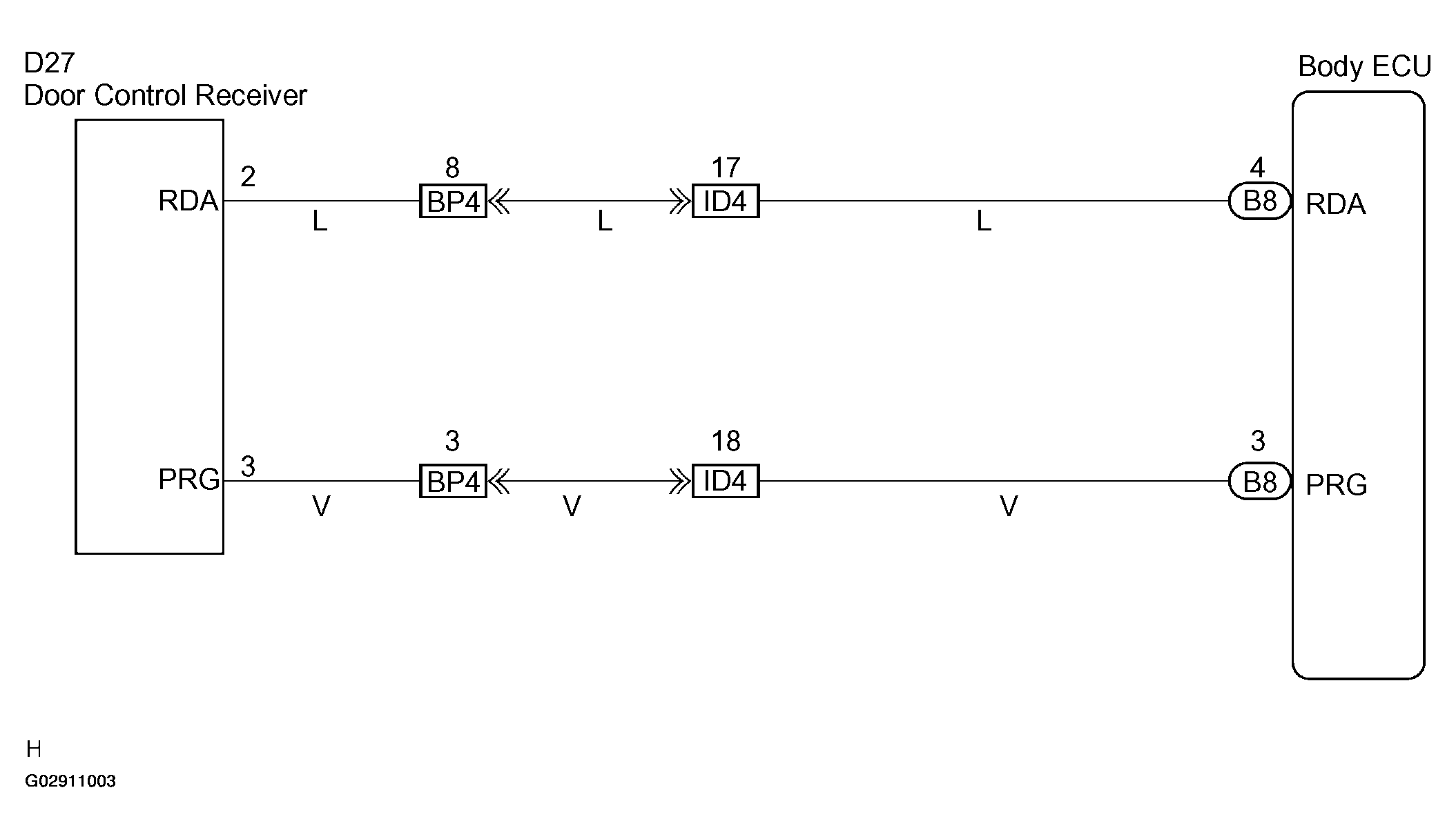

Fig 1: Wireless Door Lock Control Wiring Diagram

G02911003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
