Parts Location

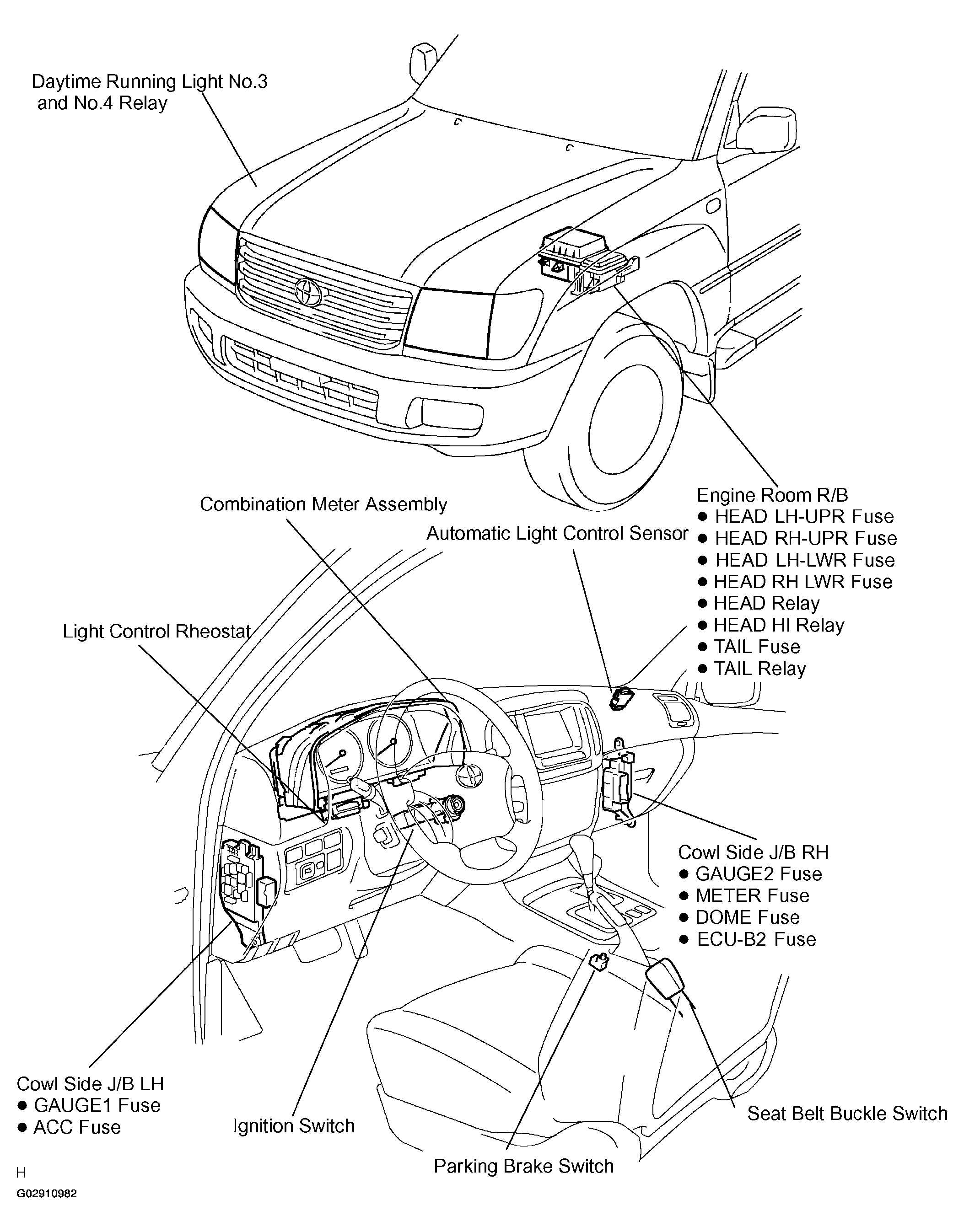

Fig 1: Identifying Body Control Systems Components Location
G02910982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

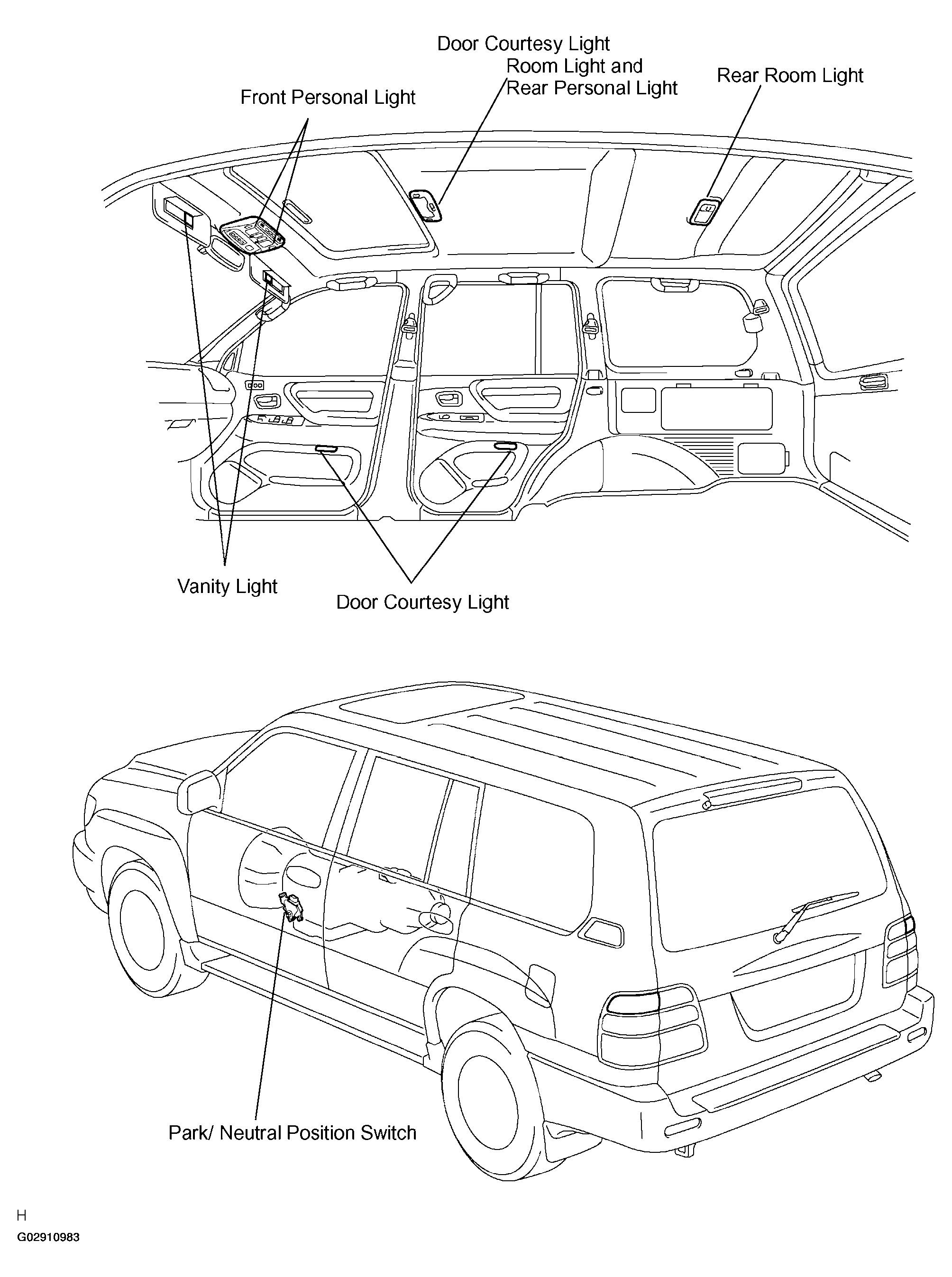

Fig 2: Identifying Body Control Systems Components Location
G02910983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
