Neutral Start Switch Circuit: Wiring Diagram

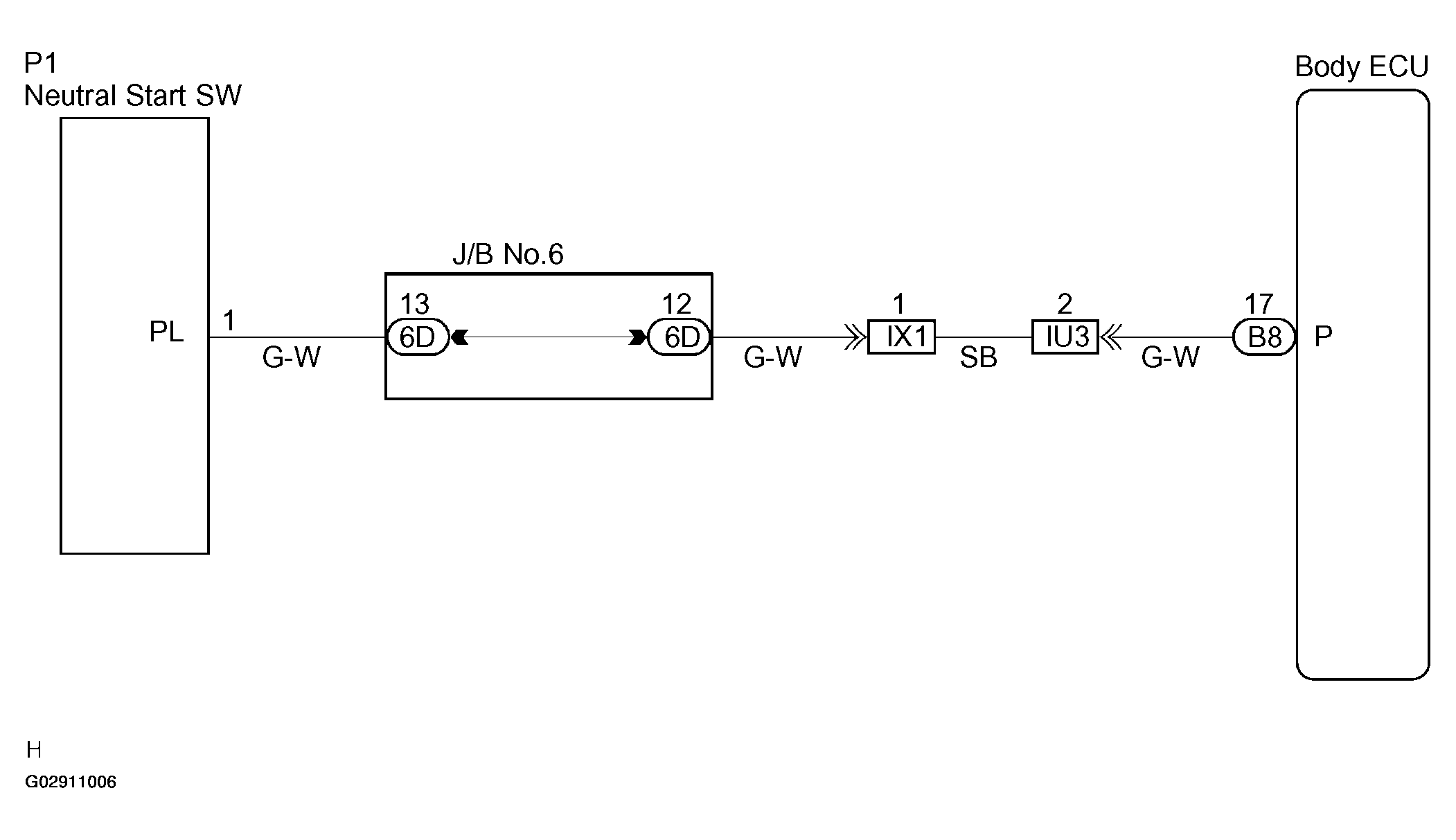

Fig 1: Neutral Start Switch Wiring Diagram

G02911006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
