Headlight Relay Circuit: Wiring Diagram

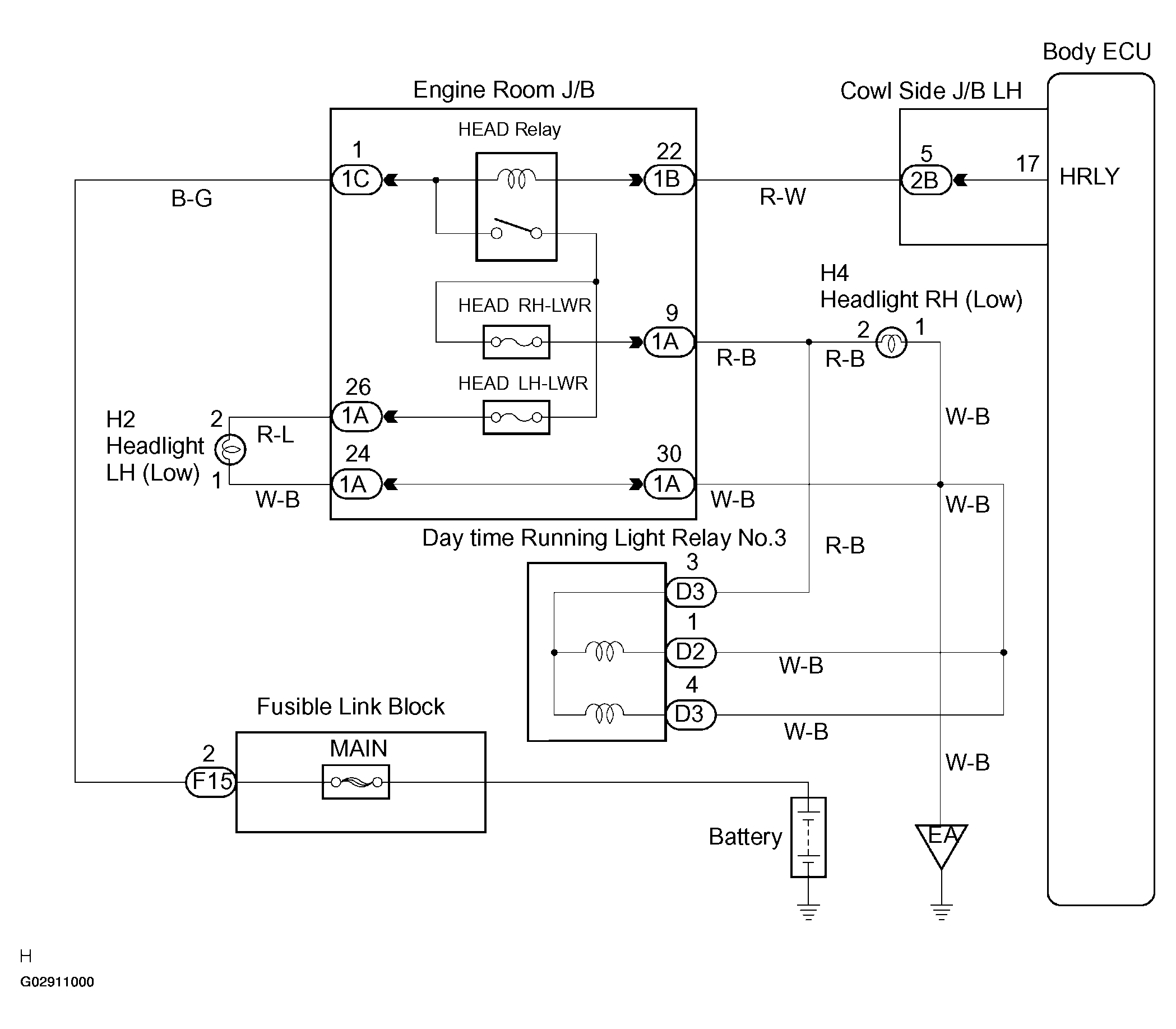

Fig 1: Headlight Relay Wiring Diagram

G02911000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
