DRL Relay Circuit: Wiring Diagram

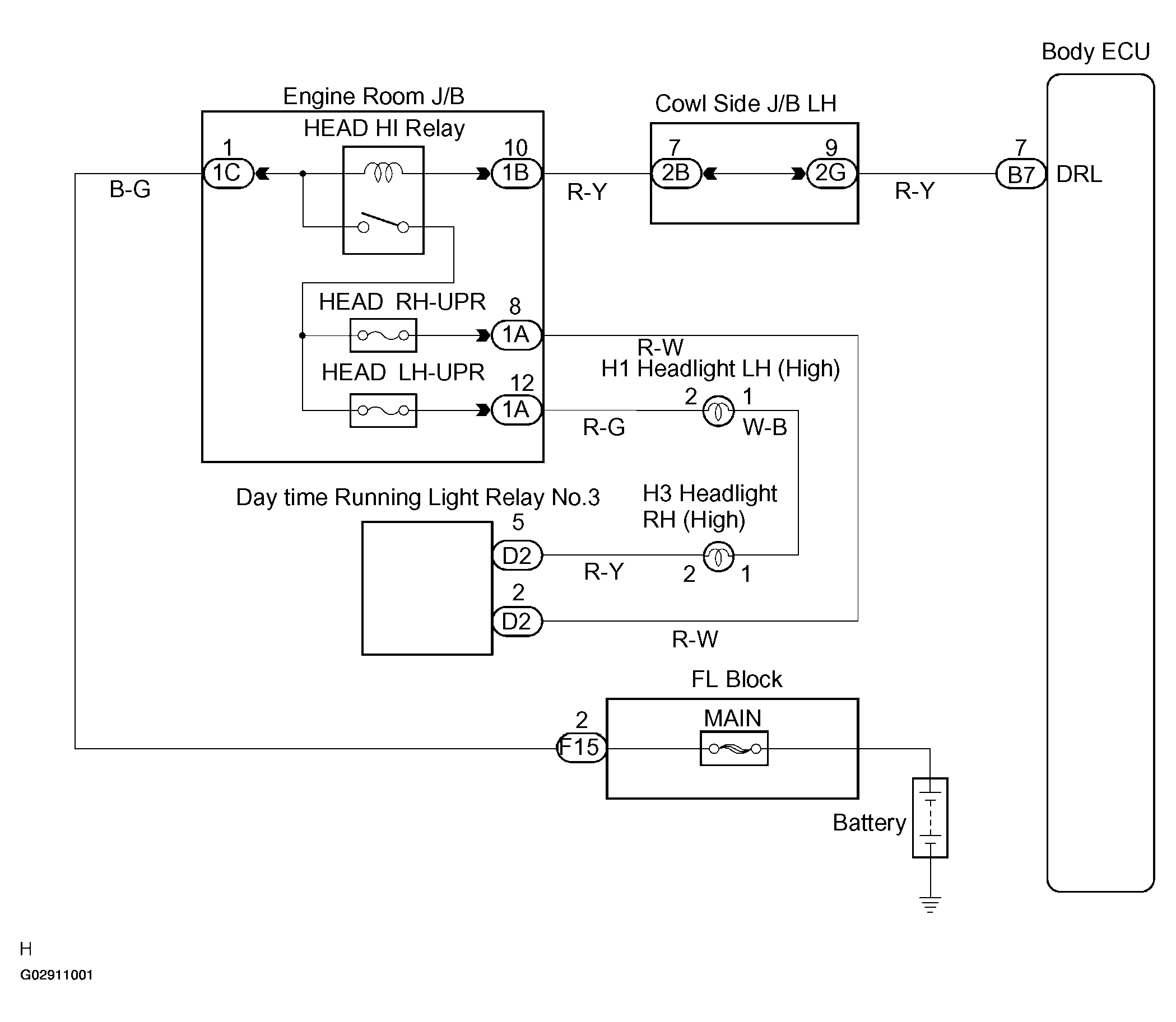

Fig 1: DRL Relay Wiring Diagram

G02911001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
