DTC P0110: Intake Air Temperature Circuit; DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

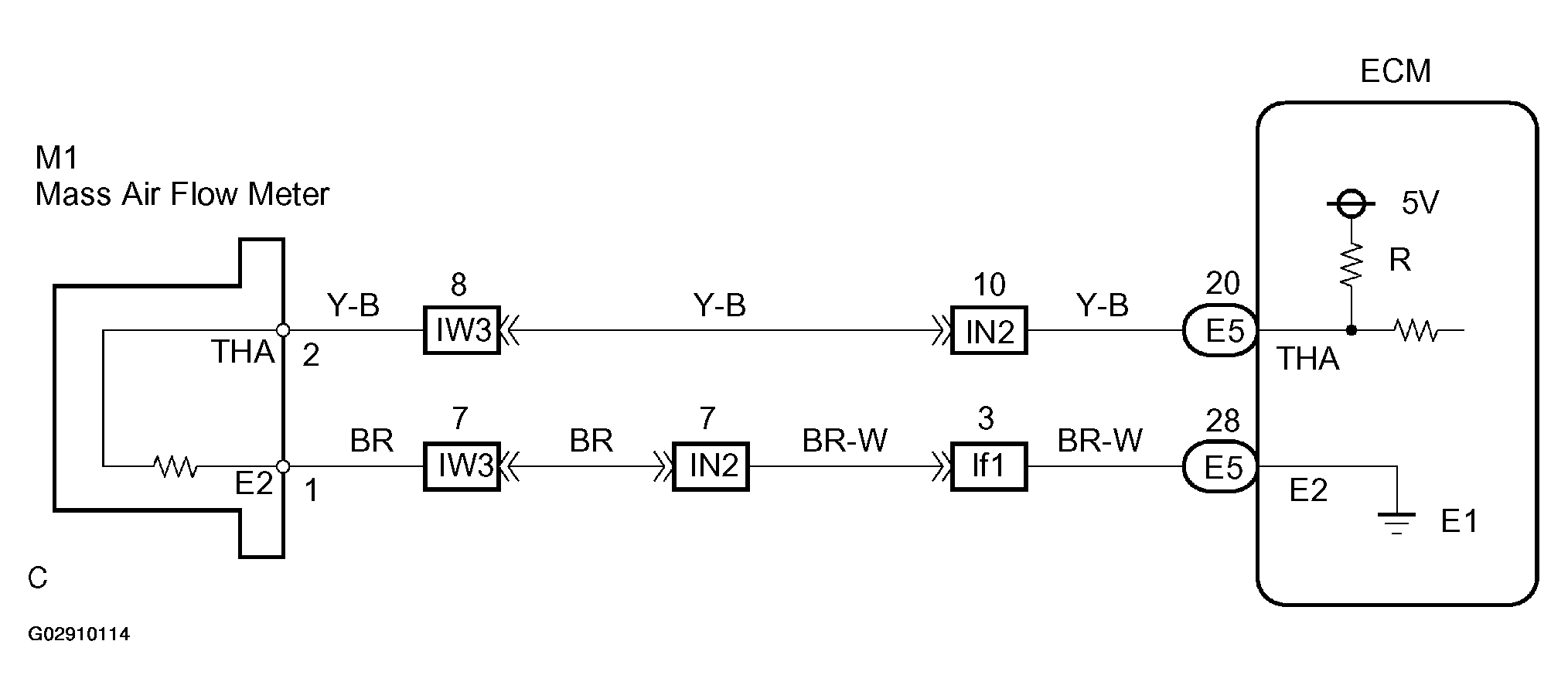

Fig 1: Mass Air Flow Meter Wiring Diagram
G02910114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
