Engine Control System (SFI) - Diagnostics (3MZ-FE): Location

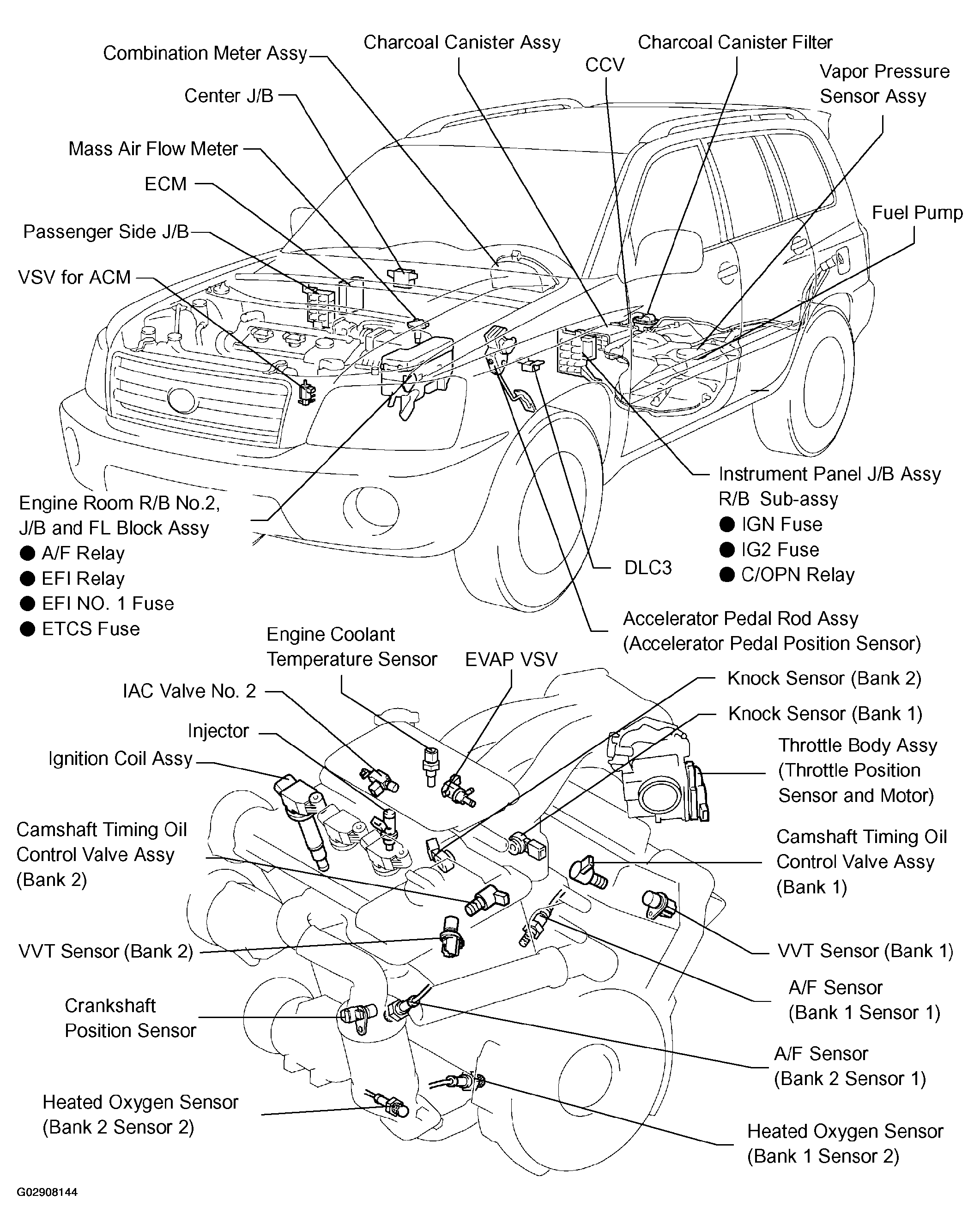

Fig 1: Locating SFI System (3MZ-FE) Components

G02908144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
