ECM Power Source Circuit: Wiring Diagram

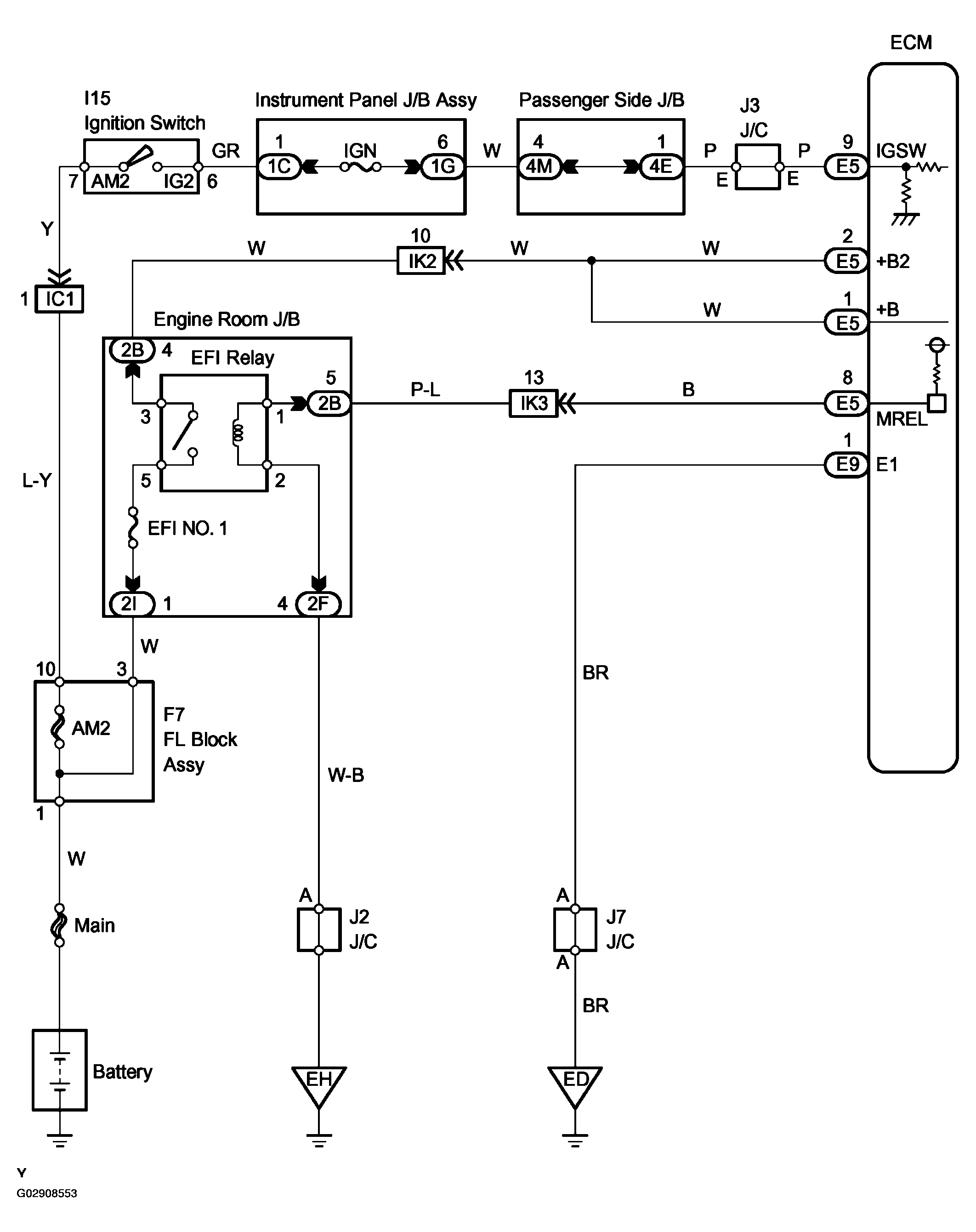

Fig 1: Wiring Diagram - ECM Power Source Circuit

G02908553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
