Disablement Of Monitor List

HINT:

The table below shows the ECM monitoring status for the components listed in the top of the table when the DTCs on the left of the table are set.

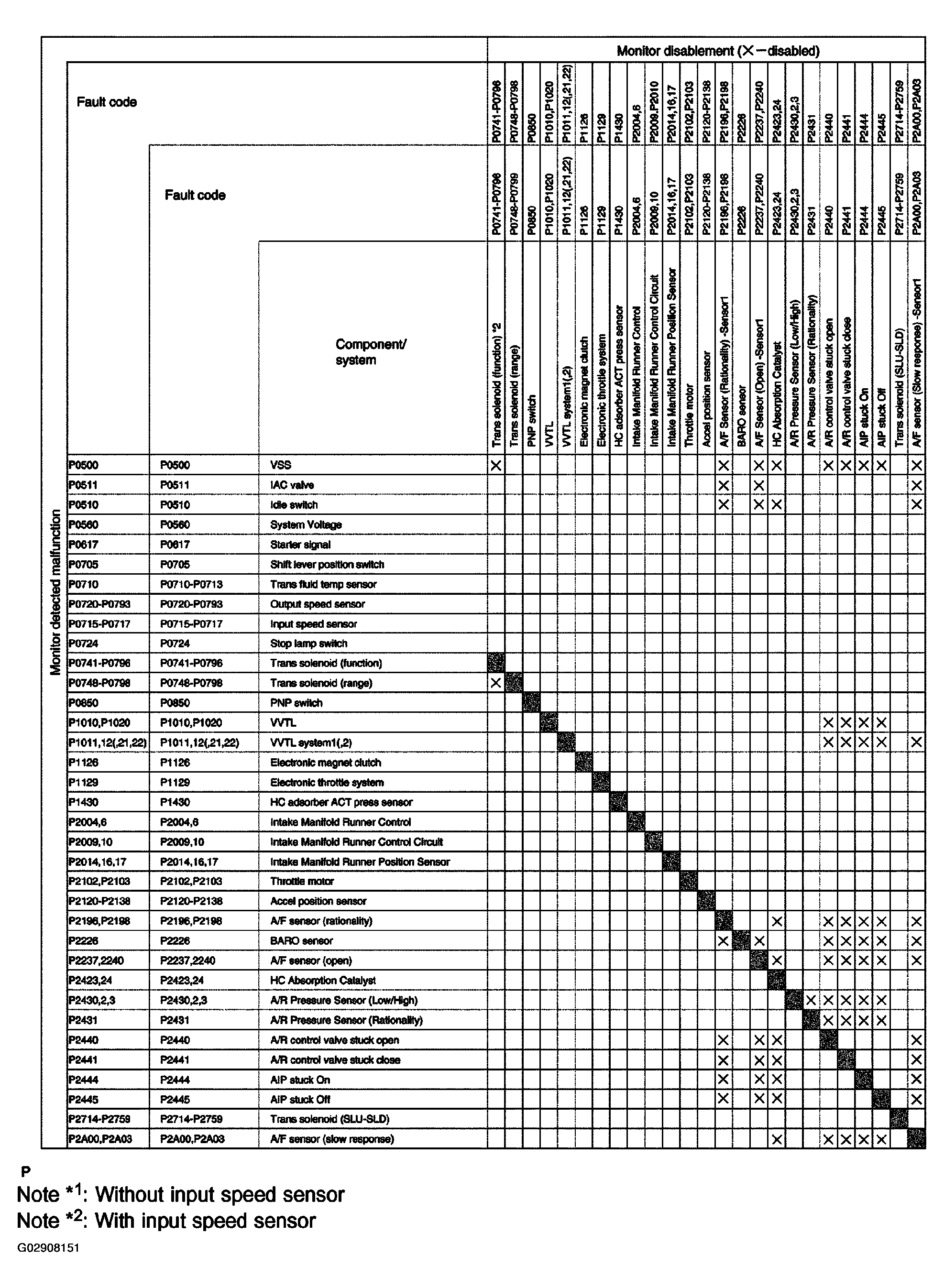

Fig 1: ECM Monitoring Status For SFI System Components Table (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

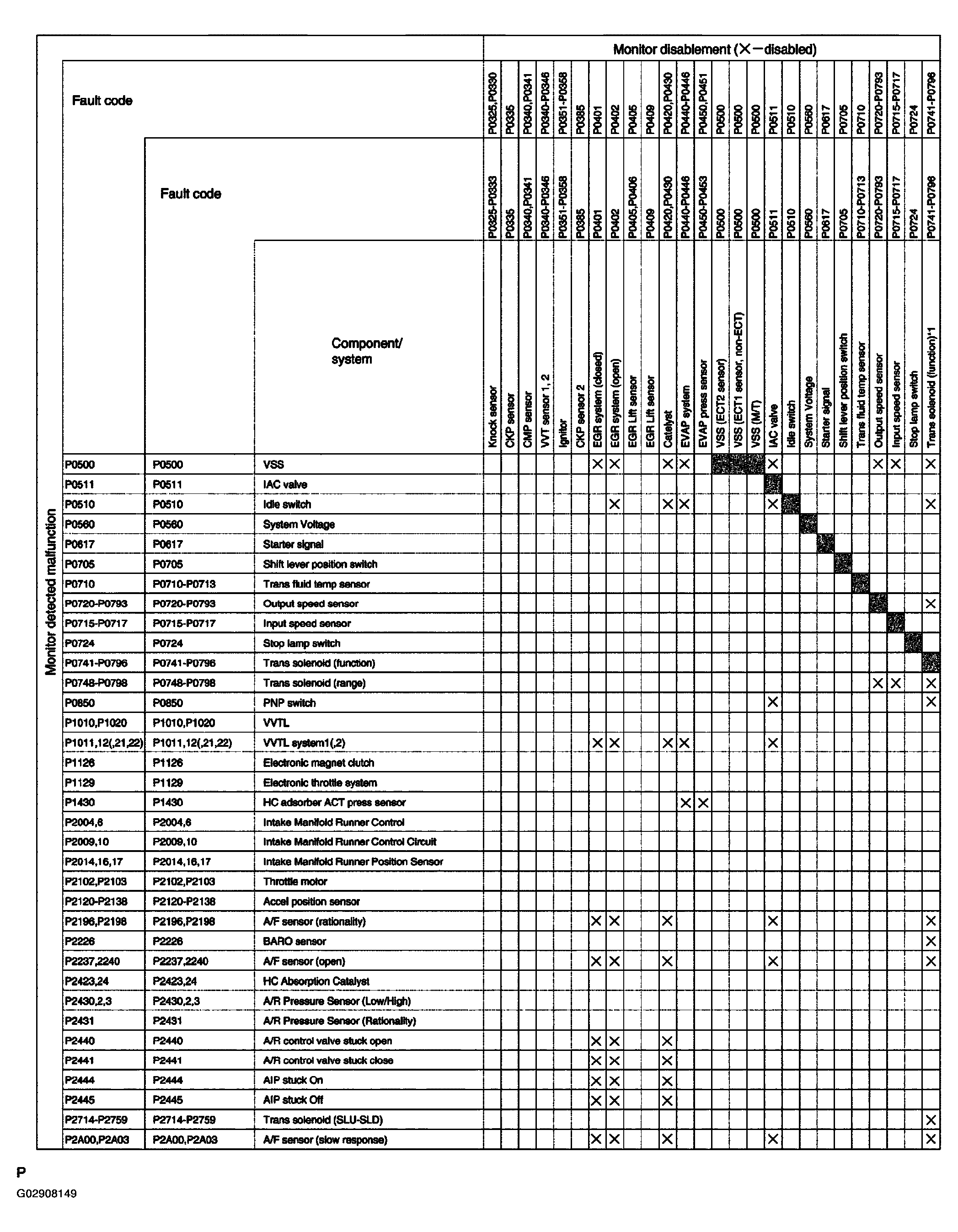

Fig 2: ECM Monitoring Status For SFI System Components Table (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

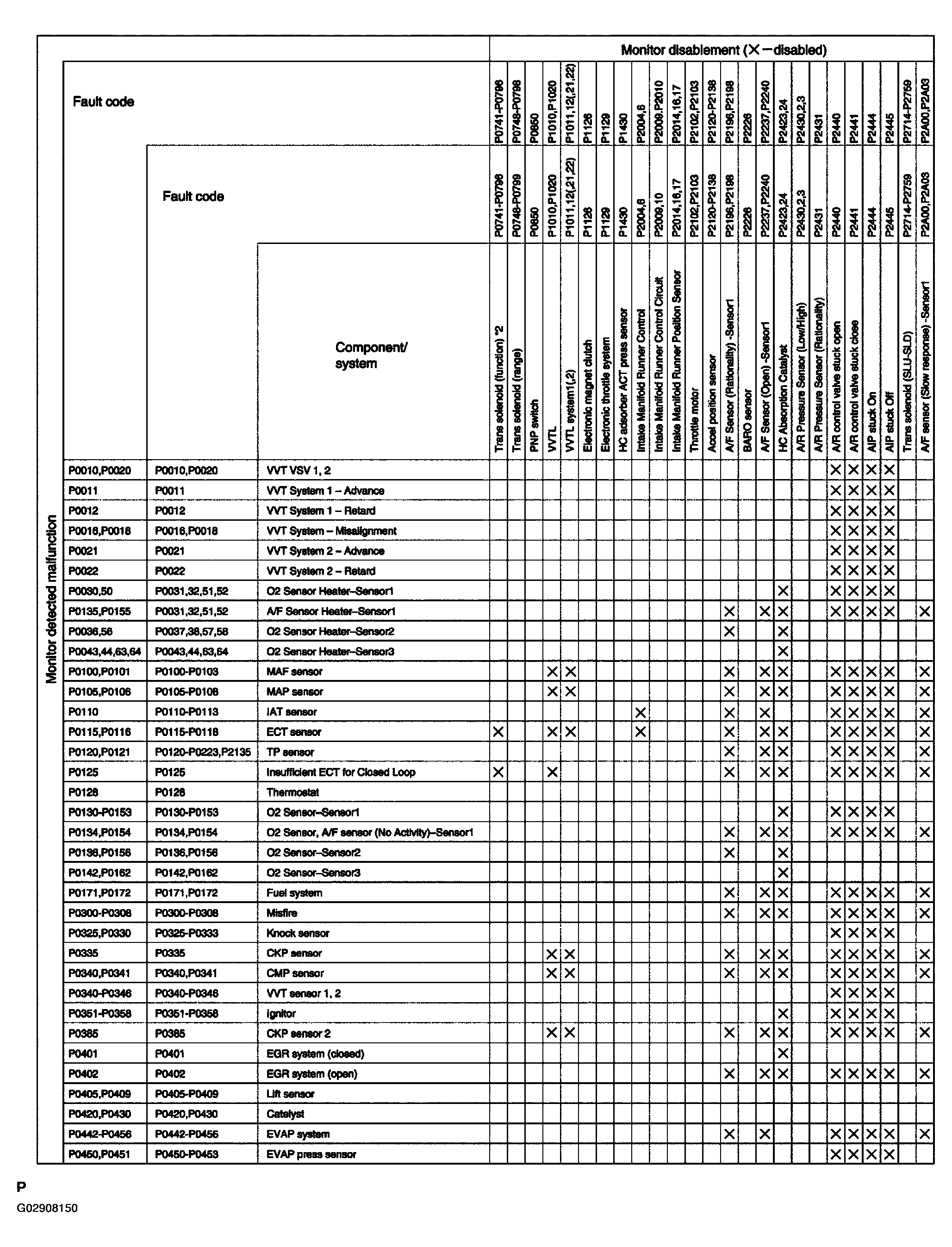

Fig 3: ECM Monitoring Status For SFI System Components Table (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

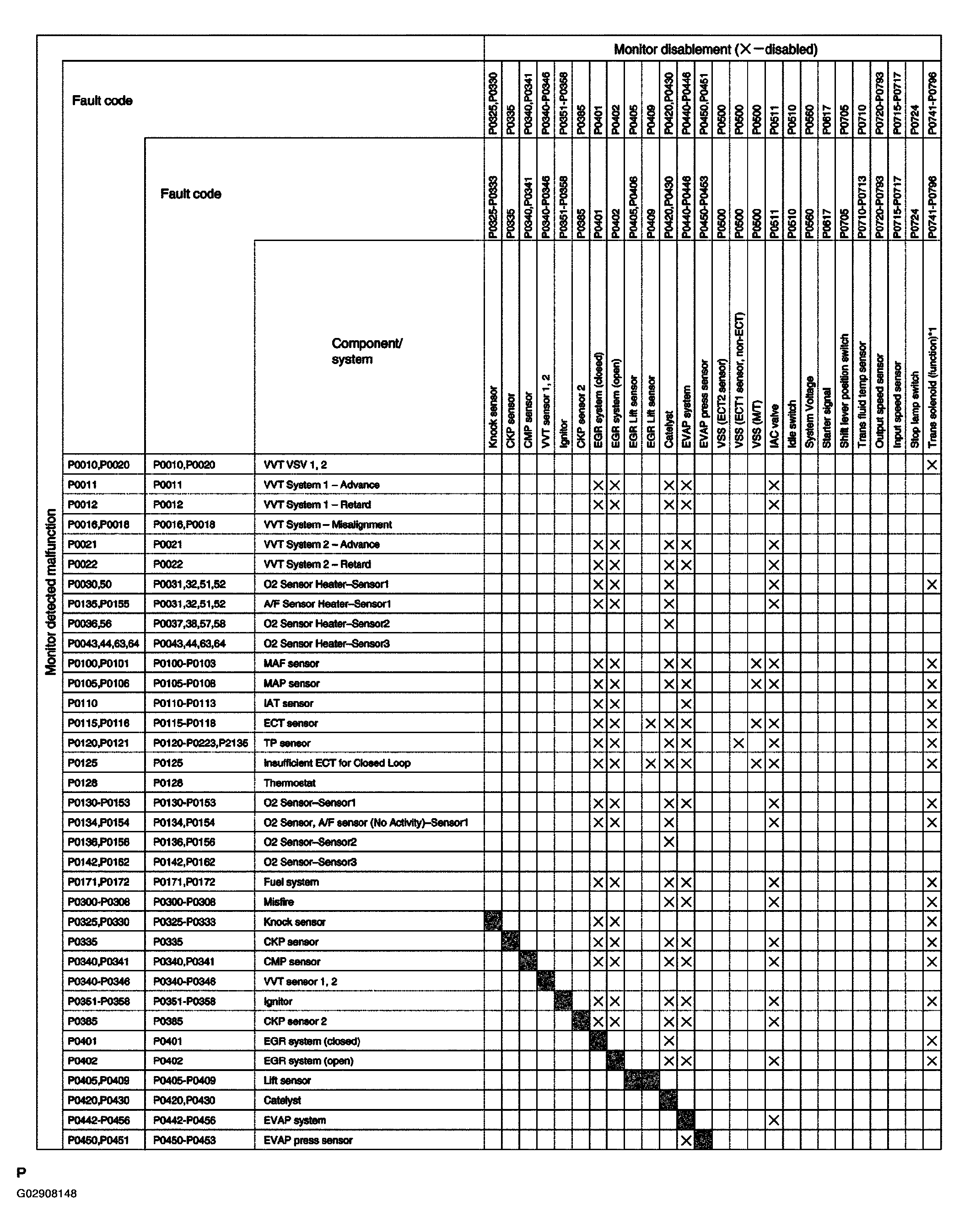

Fig 4: ECM Monitoring Status For SFI System Components Table (4 Of 6)

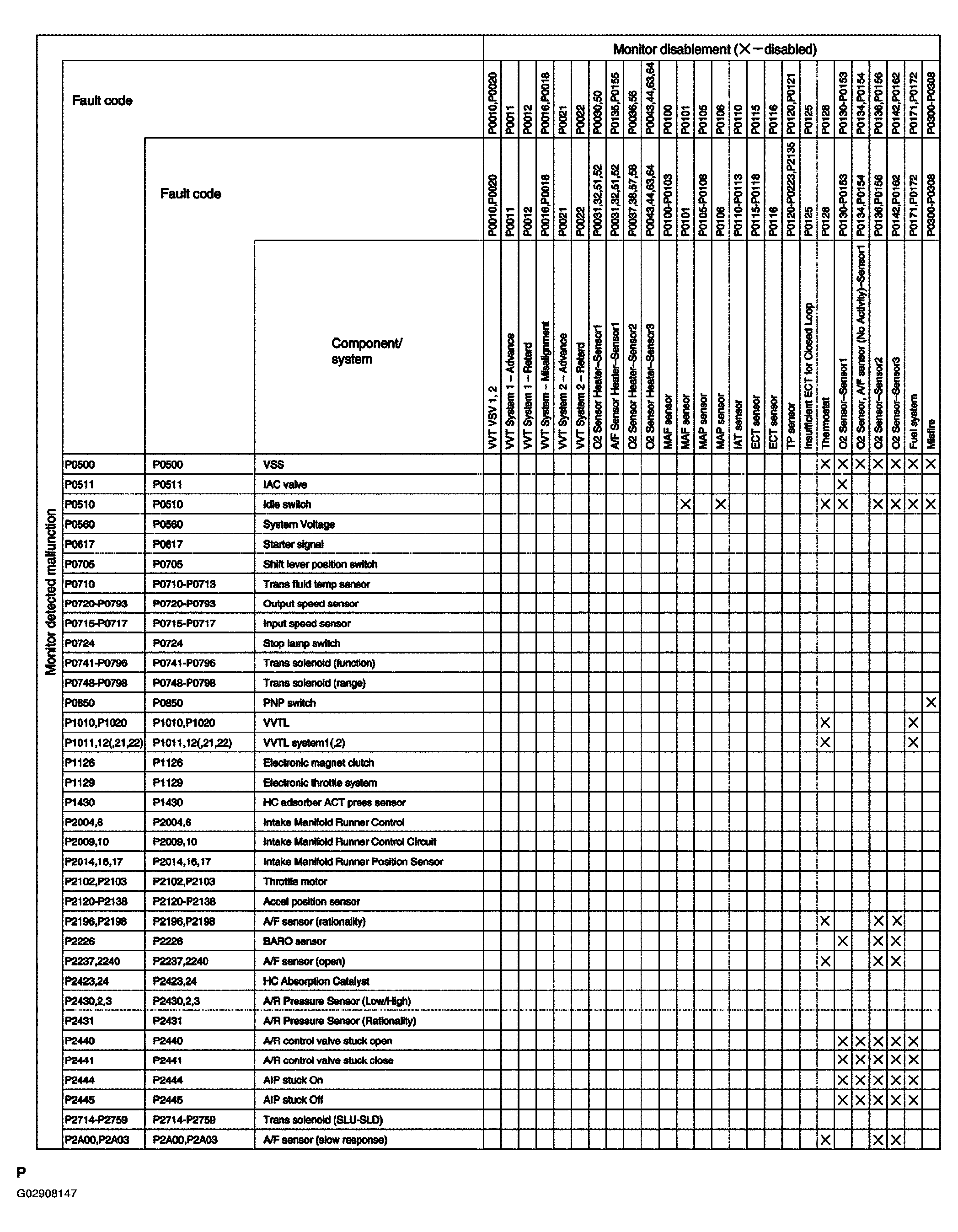

Fig 5: ECM Monitoring Status For SFI System Components Table (5 Of 6)

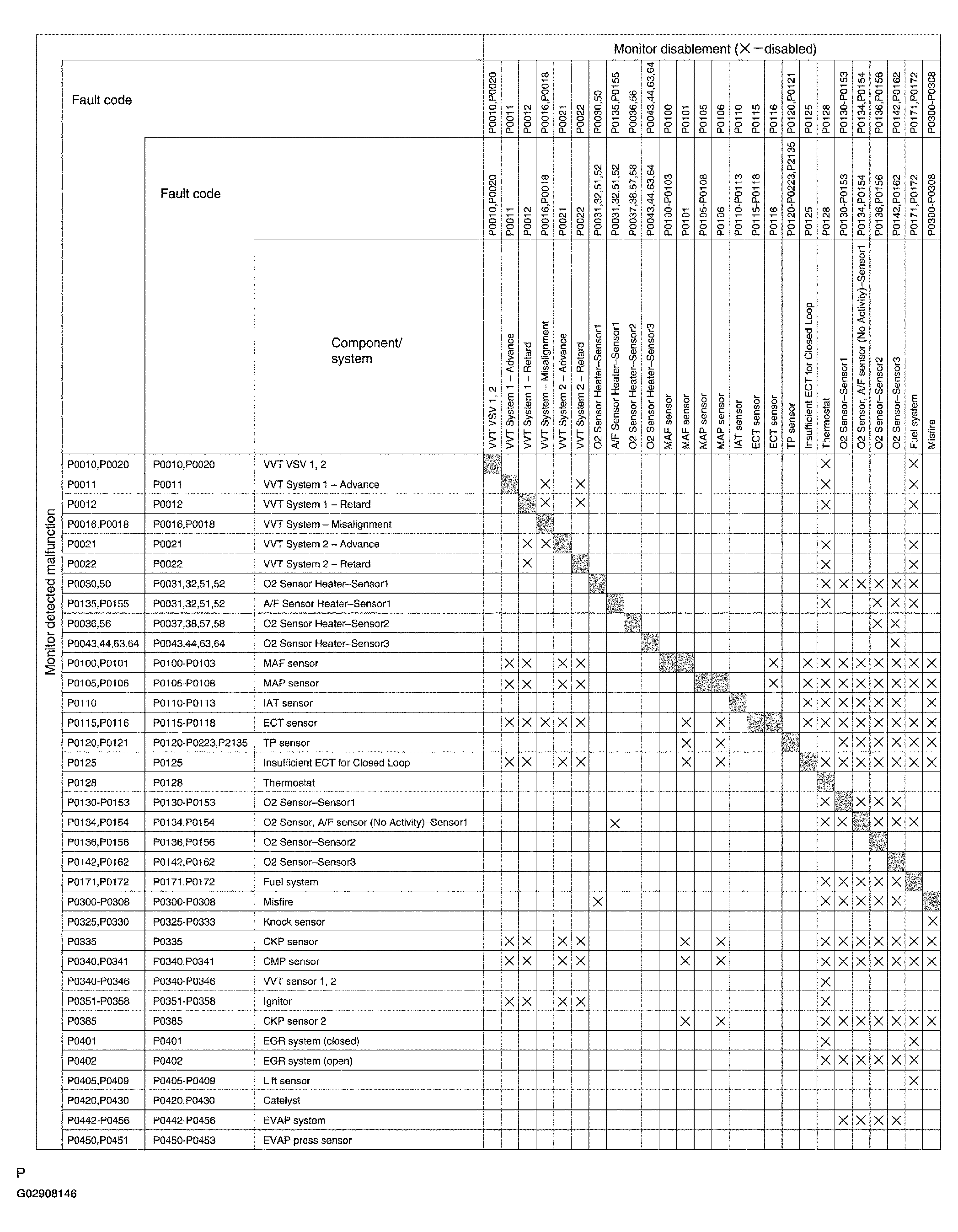

Fig 6: ECM Monitoring Status For SFI System Components Table (6 Of 6)
